Valve Cover: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Installation of new seals is only required if damaged seals were removed during removal of the valve cover.

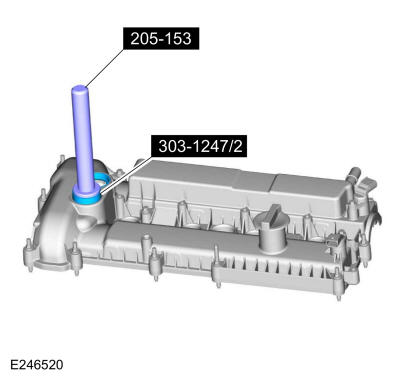

Using the special tools, install the VCT oil control solenoid seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

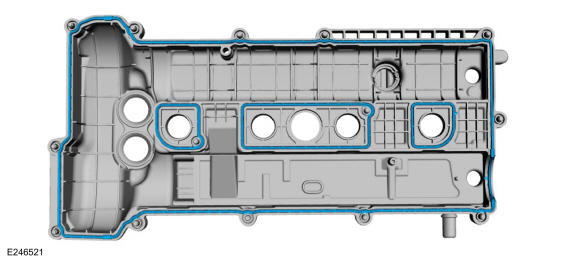

- Install new valve cover gaskets.
-
NOTE: The valve cover must be secured within 10 minutes of silicone gasket application. If the valve cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned.

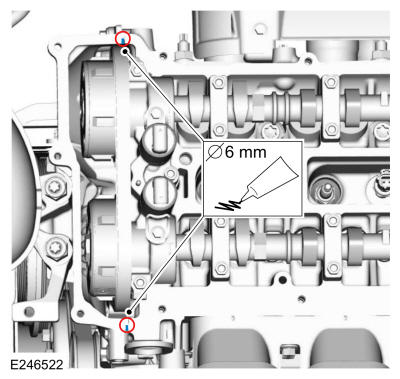

Apply a 6 mm bead of silicone sealant as shown.
Material Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

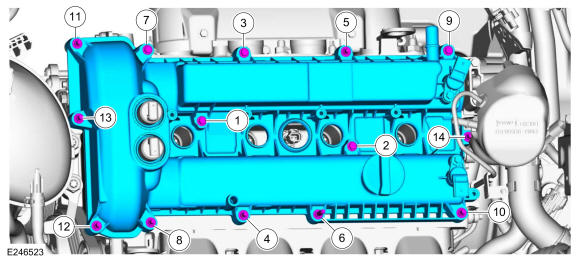

- Install the valve cover and tighten the bolts in sequence shown.
Torque 89 lb.in (10 Nm)
- Install the oil level indicator.
- Position back the fuel tube clamp and install the bolt.
Torque 89 lb.in (10 Nm)
- Position and connect the fuel tube quick release coupling. Refer to: Quick Release Coupling
.
- Position and connect the crankcase vent tube quick release coupling. Refer to: Quick Release Coupling
.
- Connect the CHT wiring harness electrical connector.
-
- Position and attach the wiring harness retainers.
- Attach the CHT wiring harness cover plug.
- Connect the wiring harness electrical connectors.
- Attach the degas coolant hose retainer to the valve cover stud bolt.
- Install the engine appearance cover bolts.
Torque 27 lb.in (3 Nm)
- Install the ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
- Connect the battery ground. Refer to: Battery Disconnect and Connect .
