Oil Pan: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

LHD 4WD/LHD FWD

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

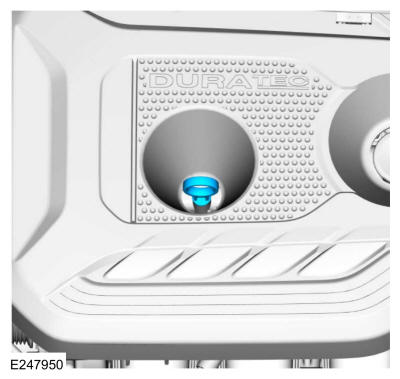

Remove the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Remove the air cleaner and the air cleaner outlet pipe. Refer to: Air Cleaner . Refer to: Air Cleaner Outlet Pipe .

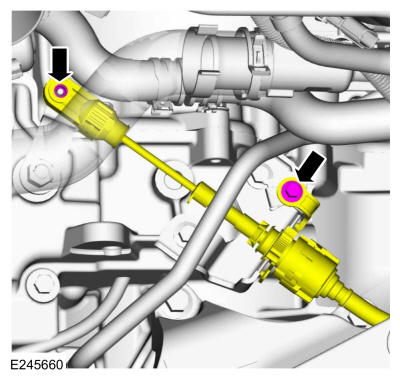

- Disconnect the selector lever cable end from the manual control lever.
- Remove the bolt and position aside the shift cable.
Courtesy of FORD MOTOR COMPANY
NOTE: To prevent damage to the transmission, do not loosen the transmission-to-engine bolts more than (0.197 in) 5 mm.

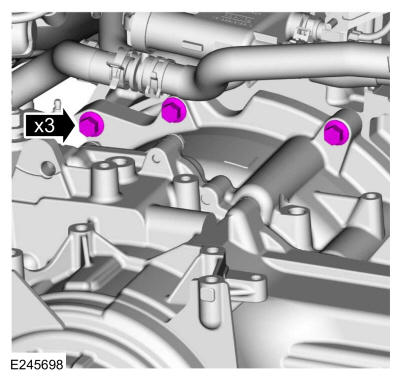

Loosen the bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: To prevent damage to the transmission, do not loosen the transmission-to-engine bolts more than (0.197 in) 5 mm.

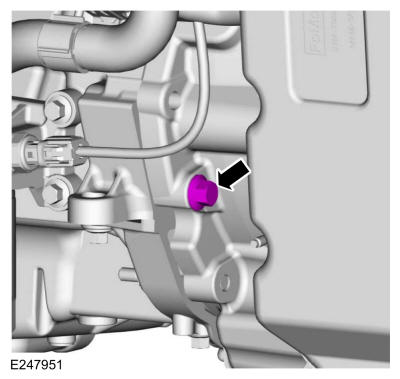

Loosen the bolt.

Courtesy of FORD MOTOR COMPANY
Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .

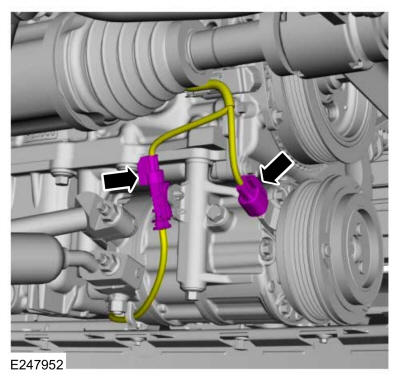

Disconnect the A/C compressor electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: Support the A/C compressor. Do not allow the A/C compressor to hang by the A/C lines or damage to the A/C compressor and tubes may occur.

Remove the bolts and position aside the A/C compressor and support.

Courtesy of FORD MOTOR COMPANY
- Remove the drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
- Install drain plug.
  Torque 20 lb.ft (27 Nm)
Courtesy of FORD MOTOR COMPANY
Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY
Remove the nut and position the ground cable aside.

Courtesy of FORD MOTOR COMPANY
Remove the oil pan bolt and stud bolt.

Courtesy of FORD MOTOR COMPANY

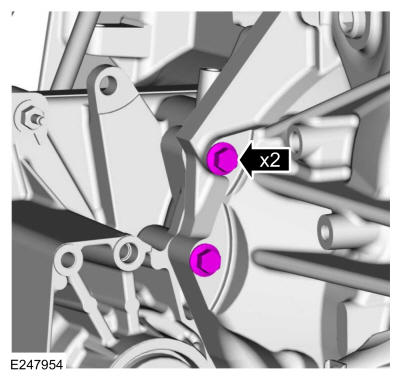

Remove the transmission bolts.

Courtesy of FORD MOTOR COMPANY

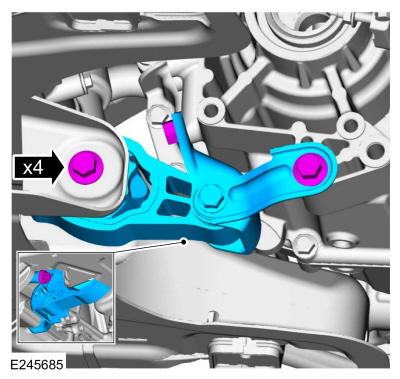

Remove the bolts and the engine roll restrictor.

Courtesy of FORD MOTOR COMPANY

LHD 4WD
Remove the transfer case. Refer to: Transfer Case .
LHD 4WD/LHD FWD
NOTE: To prevent damage to the transmission, do not loosen the engine-to-transmission bolts more than (0.197 in) 5 mm.

Loosen the bolts.

Courtesy of FORD MOTOR COMPANY

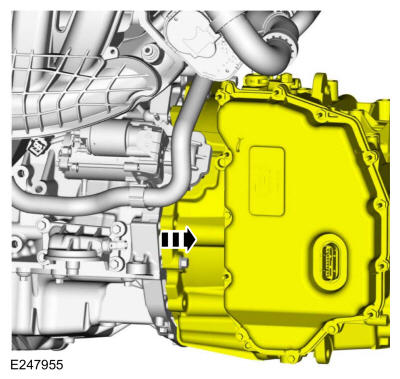

Separate the transmission and engine.

Courtesy of FORD MOTOR COMPANY

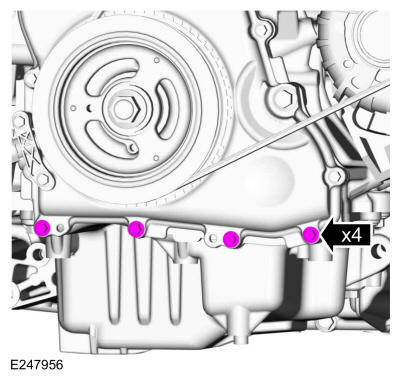

Remove the engine front cover-to-oil pan bolts.

Courtesy of FORD MOTOR COMPANY

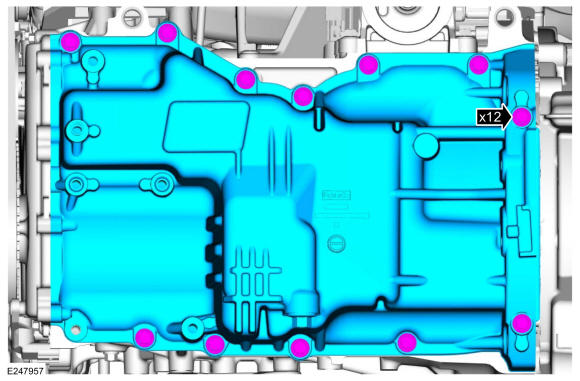

Remove the bolts and the oil pan.

Courtesy of FORD MOTOR COMPANY

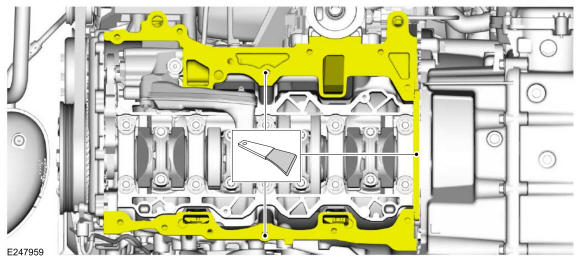

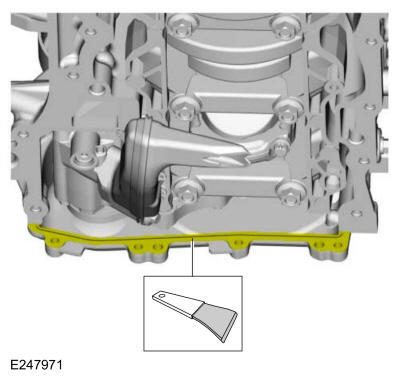

Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
