Oil Pan: Installation

LHD 4WD/LHD FWD

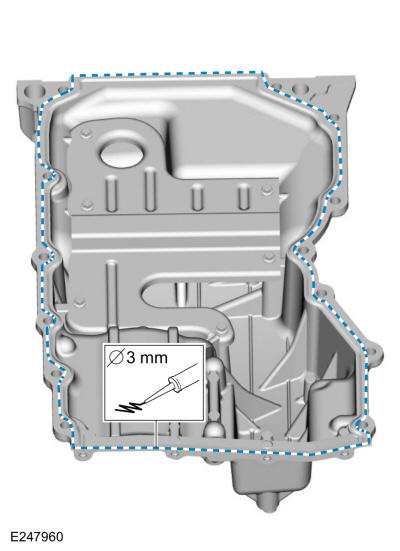

1. NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

   Apply a 3 mm bead of silicone sealant.

   Material Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

   Courtesy of FORD MOTOR COMPANY

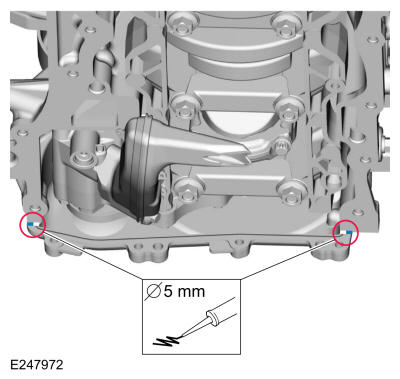

2. NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

   Apply a 5 mm bead of silicone sealant.

   Material Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

   Courtesy of FORD MOTOR COMPANY

3. Install the oil pan and the bolts finger-tight.

   Courtesy of FORD MOTOR COMPANY

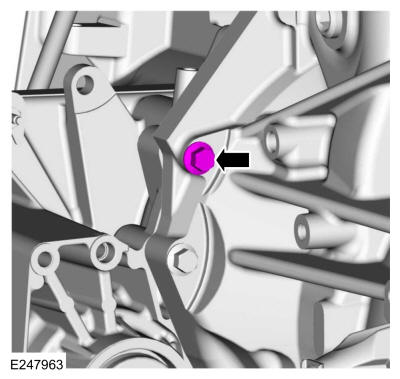

4. NOTE: The engine front cover-to-oil pan fasteners must be tightened first to align the front surface of the oil pan flush with the front surface of the engine block.

   Install the engine front cover-to-oil pan bolts.

   Torque 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

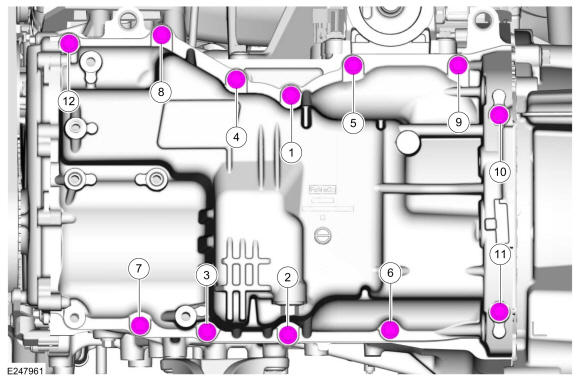

5. Tighten the bolts in sequence shown.

   Torque 18 lb.ft (25 Nm)

   Fig 1: Oil Pan Bolts Tightening Sequence

   Courtesy of FORD MOTOR COMPANY

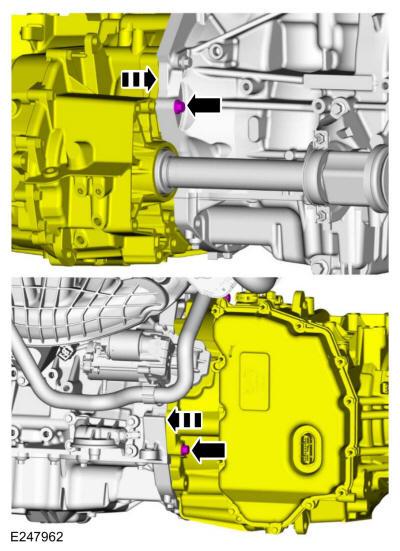

6. NOTE: Alternate tightening the LH bellhousing-to-engine and RH engine-to-bellhousing lower bolts to draw the transaxle and engine together.

   Tighten the bolts.

   Torque 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

7. Tighten the bolt.

   Torque 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

   LHD 4WD

8. Install the transfer case. Refer to: Transfer Case .

   LHD 4WD/LHD FWD

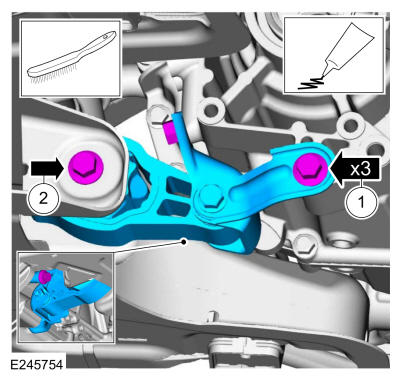

9. NOTE: Clean the bolts using a wire brush and apply Motorcraft® Threadlock and Sealer to the threads.

   Install the roll restrictor, bolts and tighten the bolts.

   1. Material

      Motorcraft® Threadlock and Sealer / TA-25-B

      Torque 59 lb.ft (80 Nm)

   2. Material

      Motorcraft® Threadlock and Sealer / TA-25-B

      Torque 63 lb.ft (86 Nm)

   Courtesy of FORD MOTOR COMPANY

10. Install the transmission bolts.

    Torque 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

11. Install the oil pan bolt and stud bolt.

    Torque 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

12. Position the ground cable and install the nut.

    Torque 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Remove the support and position the A/C compressor and install the bolts.

    Torque 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

14. Connect the A/C compressor electrical connectors.

    Courtesy of FORD MOTOR COMPANY

15. NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.

    Install a new engine oil filter.

    Torque: Stage1: 71 lb.in (8 Nm) / Stage 2: 180 deg.

    Courtesy of FORD MOTOR COMPANY

16. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
17. Install the bolts.

    Torque 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

18. • Position the shift cable and install the bolt.

      Torque 89 lb.in (10 Nm)

    • Connect the selector lever cable end to the manual control lever.

    Courtesy of FORD MOTOR COMPANY

19. Install the air cleaner and the air cleaner outlet pipe. Refer to: Air Cleaner . Refer to: Air Cleaner Outlet Pipe .
20. Install the oil indicator.

    Courtesy of FORD MOTOR COMPANY

21. Fill the engine with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
