Cylinder Head: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new cylinder head gasket.
    GFD325517Courtesy of FORD MOTOR COMPANY
  2. NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

    Install the cylinder head and the new bolts and tighten in sequence shown in 5 stages.

    Torque: Stage1: 62 lb.in (7 Nm) / Stage 2: 133 lb.in (15 Nm) / Stage 3: 26 lb.ft (35 Nm) / Stage 4: 90 deg. Stage 5: 135 deg.

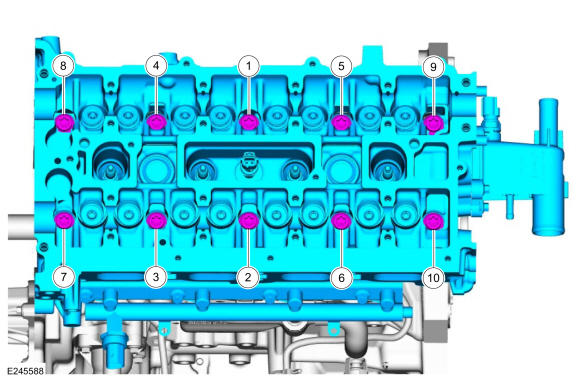

    Fig 1: Cylinder Head Bolts Tightening Sequence
    GFD325520Courtesy of FORD MOTOR COMPANY
  3. Install Special Service Tool: 303-F072 Support Bar, Engine.
    GFD325515Courtesy of FORD MOTOR COMPANY
  4. Remove the trolley jack and wooden block. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block
    GFD325474Courtesy of FORD MOTOR COMPANY

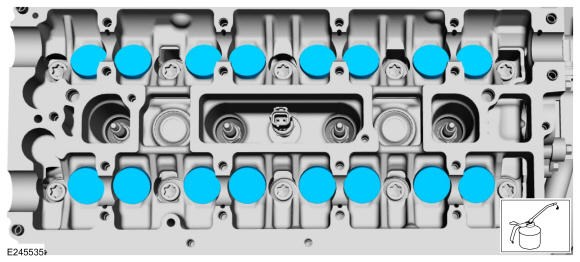

  5. Lubricate with clean engine oil and install the valve tappets in their original positions.
    GFD325454Courtesy of FORD MOTOR COMPANY
  6. Position the coolant hose and install. Use the General Equipment: Hose Clamp Remover/Installer
    GFD325513Courtesy of FORD MOTOR COMPANY
    • Position the coolant hoses and install. Use the General Equipment: Hose Clamp Remover/Installer

    • Connect the ECT sensor wiring harness electrical connector.

    GFD325512Courtesy of FORD MOTOR COMPANY
    • Position the coolant hose and install.

    • Attach the coolant hose retainers.

    GFD325511Courtesy of FORD MOTOR COMPANY
    • Install the fuel rail insulator.

    • Connect the wiring harness electrical connectors.

    • Attach the wiring harness retainers.

    GFD325510Courtesy of FORD MOTOR COMPANY
  7. Attach the wiring harness retainer to the back side of the cylinder head.
    GFD325509Courtesy of FORD MOTOR COMPANY
  8. Install the ground wiring harness and the bolt.

    Torque 89 lb.in (10 Nm)

    GFD325508Courtesy of FORD MOTOR COMPANY
    • Install the catalytic converter manifold studs.

      Torque 150 lb.in (17 Nm)

    • Install the catalytic converter manifold gasket.

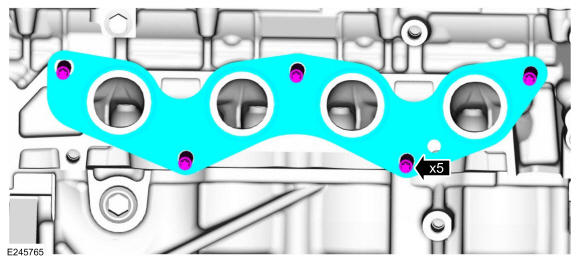

    GFD325521Courtesy of FORD MOTOR COMPANY
    • Remove the support and position the catalytic converter onto the studs.

    • Install the new nuts and tighten in sequence shown.

      Torque: Stage1: Tighten: 41 lb.ft (55 Nm) / Stage 2: Retighten: 41 lb.ft (55 Nm)

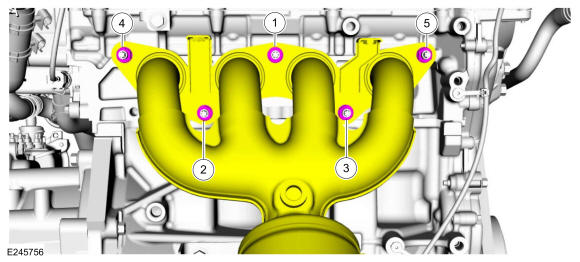

    Fig 2: Catalytic Converter Manifold Bolts Tightening Sequence
    GFD325522Courtesy of FORD MOTOR COMPANY

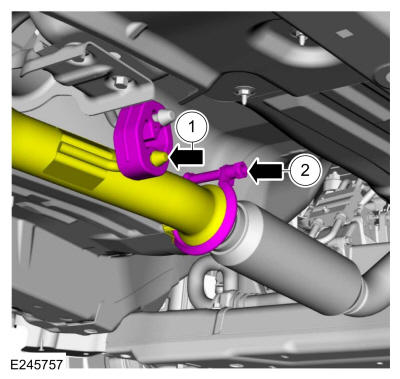

    1. Attach the muffler and tailpipe to the hanger.
    2. Connect and tighten the catalytic converter-to-muffler and tailpipe nut.

      Torque 177 lb.in (20 Nm)

    GFD325523Courtesy of FORD MOTOR COMPANY
  9. Install the bolts for the catalytic converter support bracket.

    Torque 18 lb.ft (25 Nm)

    GFD325504Courtesy of FORD MOTOR COMPANY
  10. NOTE: Typical catalytic converter shown, sensor position may vary by application.

    • Install the catalytic converter heat shield and the bolts.

      Torque 89 lb.in (10 Nm)

    • Attach the catalyst monitor sensor wiring harness.

    GFD325503Courtesy of FORD MOTOR COMPANY
  11. Connect the catalyst monitor sensor electrical connector and wire retainer.
    GFD325502Courtesy of FORD MOTOR COMPANY
    • Remove the drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment

    • Install drain plug.

      Torque 20 lb.ft (27 Nm)

    GFD325496Courtesy of FORD MOTOR COMPANY
  12. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
    GFD325497Courtesy of FORD MOTOR COMPANY
  13. NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.

    Install a new engine oil filter.

    Torque: Stage1: 71 lb.in (8 Nm) / Stage2: 180 deg.

    GFD325498Courtesy of FORD MOTOR COMPANY
  14. Remove the following items:

    1. Install the HO2S. Refer to: Heated Oxygen Sensor (HO2S) .
    2. Install the camshafts. Refer to: Camshaft .
    3. Install the intake manifold. Refer to: Intake Manifold .

  15. Connect the battery ground. Refer to: Battery Disconnect and Connect .
  16. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

    1. Lubricate each grommet with silicone grease.

      Material Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

    2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
    3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.

    GFD325524Courtesy of FORD MOTOR COMPANY
  17. Fill the engine with clean engine oil. Refer to: Specifications .
    GFD325499Courtesy of FORD MOTOR COMPANY
  18. Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
