Intake Manifold: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
Disconnect the vacuum pump inlet tube coupling.

Courtesy of FORD MOTOR COMPANY
NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
1. Loosen the clamps and remove the nuts.
  Torque Nuts: 97 lb.in (11 Nm) Clamps: 44 lb.in (5 Nm)
2. Release the clamp and disconnect the vacuum hose. Use the General Equipment: Hose Clamp Remover/Installer
3. Disconnect the quick release couplings. Refer to: Quick Release Coupling .
4. Disconnect the crankcase pressure sensor electrical connector.
5. Disconnect the PCV coupling.
6. Disconnect the MAP sensor electrical connector and remove the air cleaner outlet pipe assembly.
Courtesy of FORD MOTOR COMPANY
NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
1. Remove the bolt.
  Torque 97 lb.in (11 Nm)
2. Loosen the clamps and remove the CAC outlet pipe.
  Torque 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the evaporative emission canister purge valve. Refer to: Evaporative Emission Canister Purge Valve .
Detach the degas bottle and position aside.

Courtesy of FORD MOTOR COMPANY
Disconnect the throttle body electrical connector.

Courtesy of FORD MOTOR COMPANY

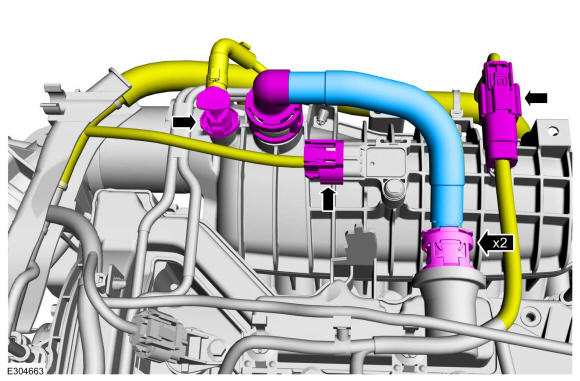

1. Disconnect the quick release couplings and remove the PCV tube.
2. Disconnect the MAP sensor and the fuel injector wiring harness electrical connector.
3. Disconnect the vacuum hose quick release coupling.
Courtesy of FORD MOTOR COMPANY
Detach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY

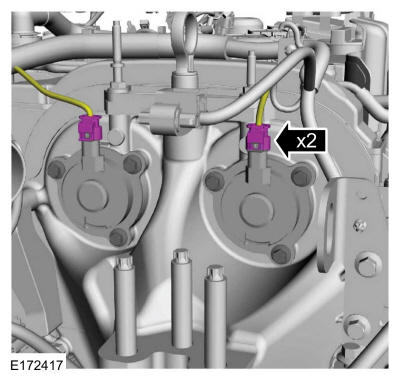

Disconnect the VCT solenoid electrical connectors.

Courtesy of FORD MOTOR COMPANY

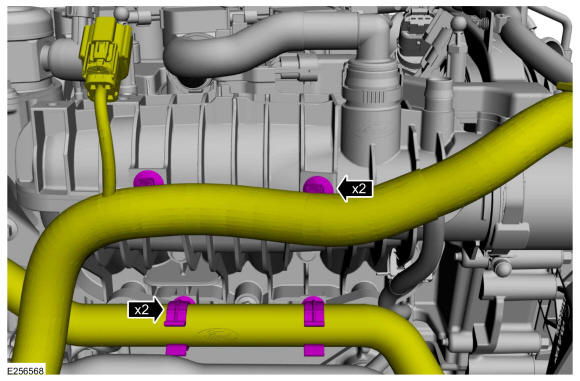

- Detach the wiring harness retainers.
- Release the coolant hose from the retainers.
Courtesy of FORD MOTOR COMPANY
Remove the starter motor. Refer to: Starter Motor .

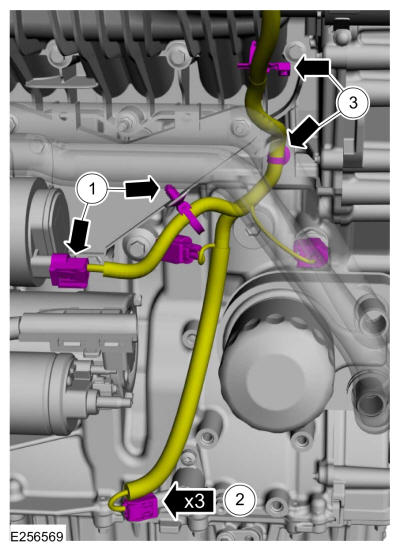

1. NOTE: If equipped.

  Disconnect the auxiliary coolant pump electrical connector and detach the wiring harness retainer.
2. Disconnect the engine wiring harness electrical connectors.
3. Detach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY

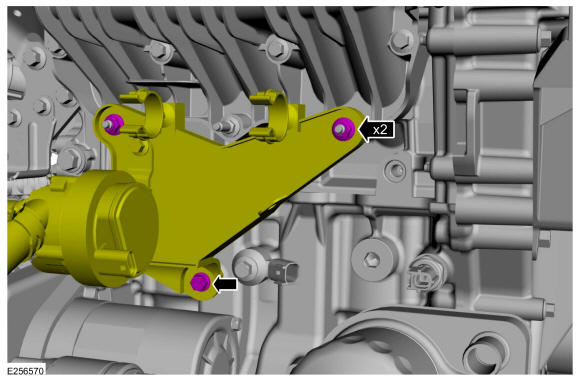

NOTE: If equipped.

Remove the nuts, the bolt and position the auxiliary coolant pump bracket aside.

Courtesy of FORD MOTOR COMPANY

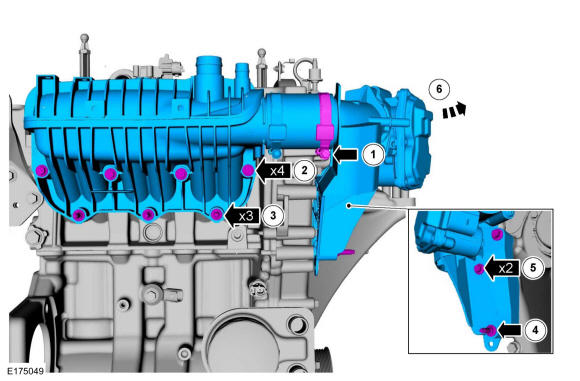

NOTE: The throttle body and adapter may have been removed during engine front cover removal.

Loosen the clamp, remove the bolts, studs and the intake manifold.

Courtesy of FORD MOTOR COMPANY

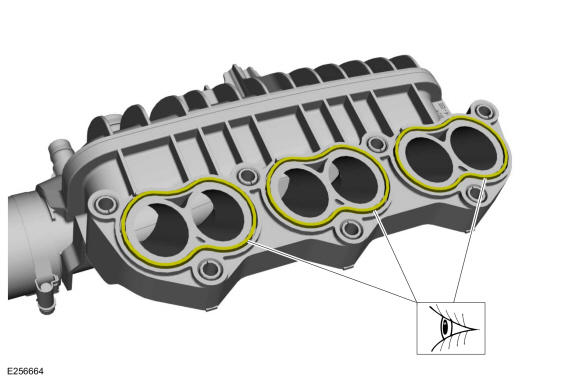

Inspect the gaskets and replace as necessary.

Courtesy of FORD MOTOR COMPANY
