Transmission - 1.0L EcoBoost (92kW/125PS): Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: If transmission disassembly or installation of a new transmission is necessary, install the manual shift lever.

    Install the manual shift lever and the nut.

    Torque

    : 18 lb.ft (24 Nm)

    GFD326810Courtesy of FORD MOTOR COMPANY

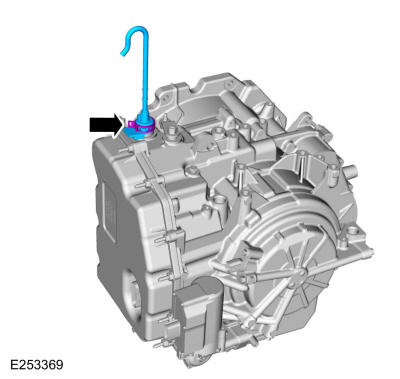

  2. NOTE: If transmission disassembly or installation of a new transmission is necessary, install the transmission vent tube.

    Install the transmission vent tube.

    GFD326843Courtesy of FORD MOTOR COMPANY
  3. NOTE: If transmission disassembly or installation of a new transmission is necessary, install the transmission insulator bracket.

    Install the transmission insulator support bracket and the bolts.

    Torque

    : 46 lb.ft (62 Nm)

    GFD326809Courtesy of FORD MOTOR COMPANY

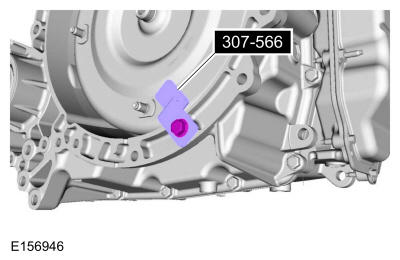

  4. Install Special Service Tool: 307-566 Retainer, Torque Converter.
    GFD326842Courtesy of FORD MOTOR COMPANY
  5. Lubricate the torque converter pilot hub with Multi-Purpose Grease.

    Material

    : Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD326813Courtesy of FORD MOTOR COMPANY
  6. NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

    If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

    GFD326806Courtesy of FORD MOTOR COMPANY
  7. NOTE: Secure the transmission to the transmission jack with a safety strap.
    NOTE: Make sure that the component is correctly located on the locating dowels.
    NOTE: Make sure that no part of the wiring harness is trapped.
    NOTE: Make sure that no components catch.

    Support the transmission with a transmission jack. Use the General Equipment: Retaining Strap. Use the General Equipment: Transmission Jack

    GFD326814Courtesy of FORD MOTOR COMPANY
  8. Position the transmission behind the engine and remove the special tool. Use Special Service Tool: 307-566 Retainer, Torque Converter.
    GFD326842Courtesy of FORD MOTOR COMPANY

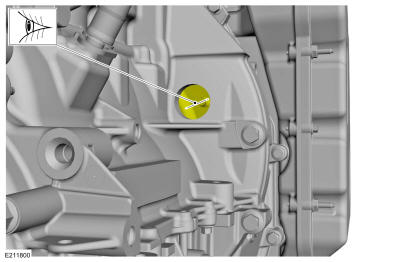

  9. Align the index-mark made during removal.
    GFD326844Courtesy of FORD MOTOR COMPANY

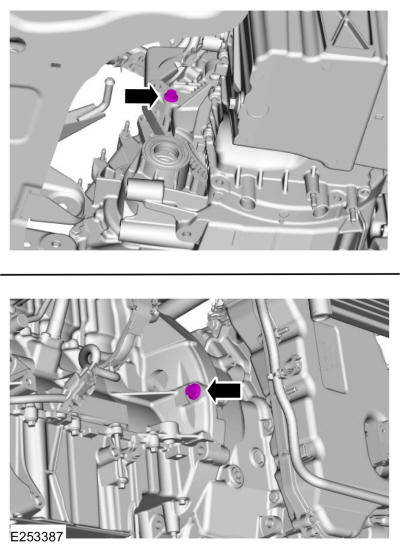

  10. Install the RH and the LH transmission torque converter housing bolts.

    Torque

    : 35 lb.ft (48 Nm)

    GFD326841Courtesy of FORD MOTOR COMPANY

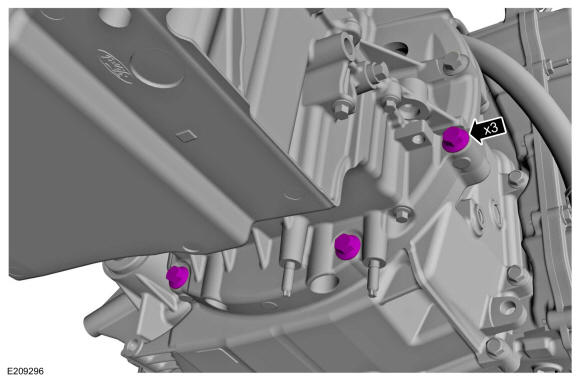

  11. Install the transmission-to-engine bolts.

    Torque

    : 35 lb.ft (48 Nm)

    GFD326840Courtesy of FORD MOTOR COMPANY

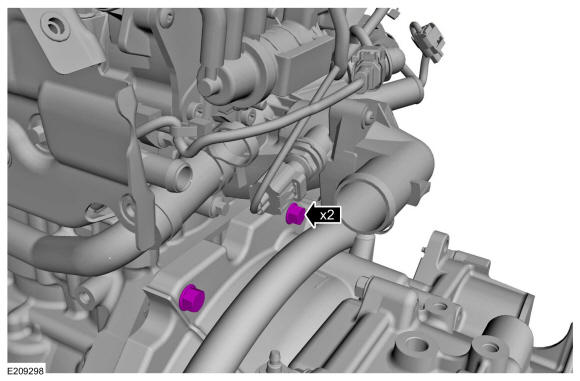

  12. Install the upper transmission-to-engine bolts.

    Torque

    : 35 lb.ft (48 Nm)

    GFD326845Courtesy of FORD MOTOR COMPANY

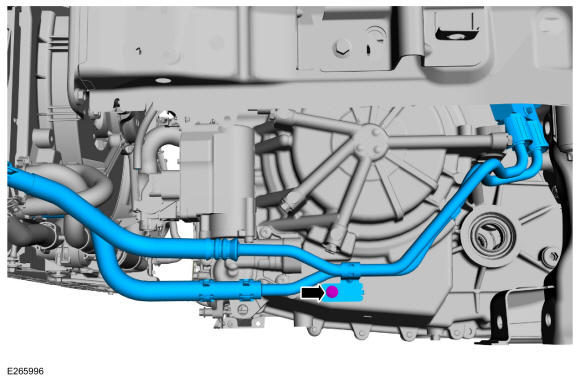

  13. Install the transmission cooler-to-cooler bypass valve tubes and the bolt.

    Torque

    : 97 lb.in (11 Nm)

    GFD326839Courtesy of FORD MOTOR COMPANY

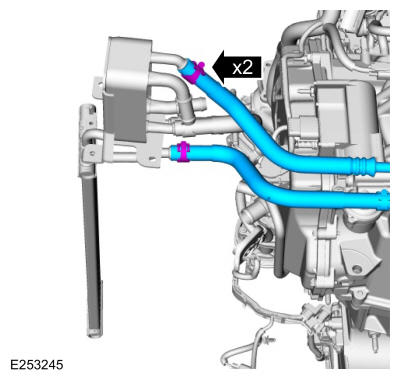

  14. Connect the transmission fluid cooler-to-cooler bypass valve tubes to the cooler bypass valve.
    GFD326838Courtesy of FORD MOTOR COMPANY

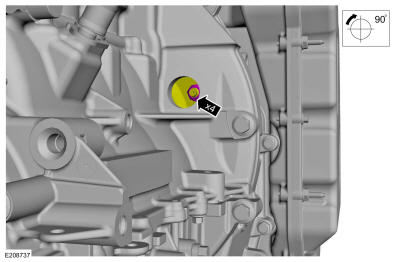

  15. NOTE: Only rotate the engine in a clockwise direction or engine damage will occur.
    NOTE: The torque converter nuts are accessed from the top of the vehicle.

    Using a magnetic socket install the new torque converter nuts. Use the General Equipment: Magnetic Socket

    Torque

    : 30 lb.ft (40 Nm)

    GFD326846Courtesy of FORD MOTOR COMPANY

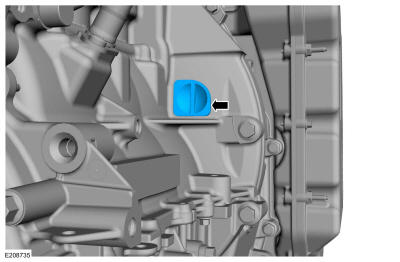

  16. Install the torque converter nut access plug.
    GFD326836Courtesy of FORD MOTOR COMPANY
  17. Install the transmission support insulator, the bolts and the nuts.

    Torque

    : 1: 66 lb.ft (90 Nm) 2: 103 lb.ft (140 Nm)

    GFD326819Courtesy of FORD MOTOR COMPANY
  18. NOTE: Make sure that a new component is installed.

    Install the new inner halfshaft retaining circlip.

    GFD326820Courtesy of FORD MOTOR COMPANY
  19. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    If necessary, install a new RH halfshaft seal. Refer to: Halfshaft Seal RH .

  20. Insert the RH halfshaft until the halfshaft retaining clip is fully seated.
    GFD326821Courtesy of FORD MOTOR COMPANY
  21. NOTE: Make sure that a new component is installed.

    Insert the RH lower ball joint into the wheel knuckle and install a new bolt and nut.

    Torque

    : 38 lb.ft (52 Nm)

    GFD326822Courtesy of FORD MOTOR COMPANY
  22. WARNING: Make sure that the alignment line is not twisted.

    • Position back the RH front wheel speed sensor and install the bolt.

      Torque

      : 80 lb.in (9 Nm)

    • Attach the RH wheel speed sensor retainer.

    GFD326789Courtesy of FORD MOTOR COMPANY
  23. WARNING: Make sure that no load is placed on the brake hose.

    Position the RH brake hose and install the bolt.

    Torque

    : 18 lb.ft (25 Nm)

    GFD326788Courtesy of FORD MOTOR COMPANY
  24. NOTE: If the transmission has been replaced or overhauled, the halfshaft seals do not need to be replaced.

    Install the LH halfshaft. Refer to: Front Halfshaft LH - 6-Speed Automatic Transmission - 6F15 .

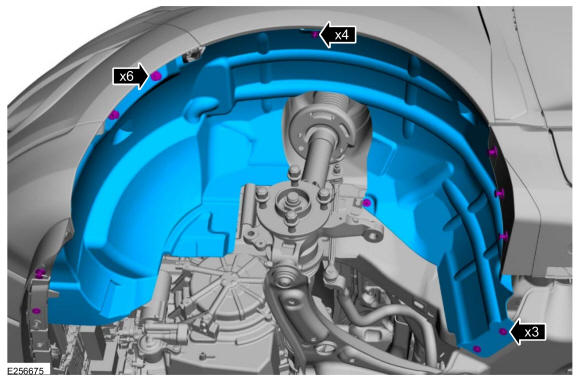

  25. Install the LH inner splash shield and the retainers.
    GFD326835Courtesy of FORD MOTOR COMPANY
  26. Install the wheel and tire. Refer to: Wheel and Tire .
  27. Install the transmission roll restrictor bracket bolts.

    Torque

    : 85 lb.ft (115 Nm)

    GFD326758Courtesy of FORD MOTOR COMPANY
  28. Install the transmission roll restrictor, bracket and the bolts.

    Torque

    : 85 lb.ft (115 Nm)

    GFD326757Courtesy of FORD MOTOR COMPANY
  29. Inspect the transmission fluid tube backing rings and seals for damage and install new backing rings or seals if necessary.

    1. Backing ring (7J324)
    2. Seal (7D285)

      Material

      : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

    GFD326847Courtesy of FORD MOTOR COMPANY

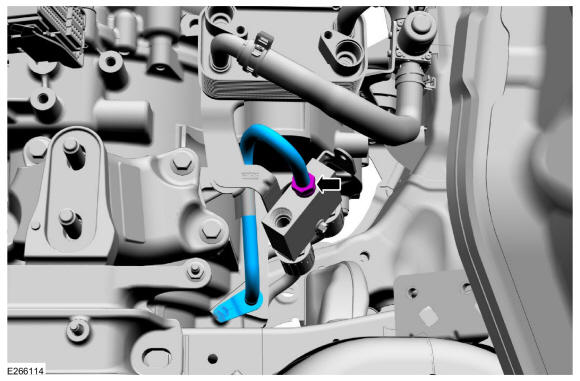

  30. Install the cooler bypass valve-to-transmission tube and finger tighten the fitting.
    GFD326848Courtesy of FORD MOTOR COMPANY

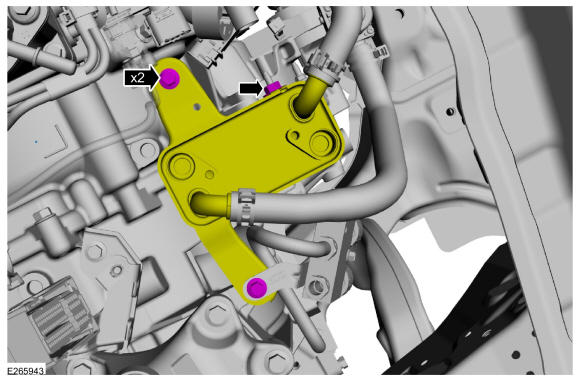

  31. Install the transmission fluid warmer, bolts and the nut.

    Torque

    : Bolts: 18 lb.ft (25 Nm) Nut: 89 lb.in (10 Nm)

    GFD326831Courtesy of FORD MOTOR COMPANY

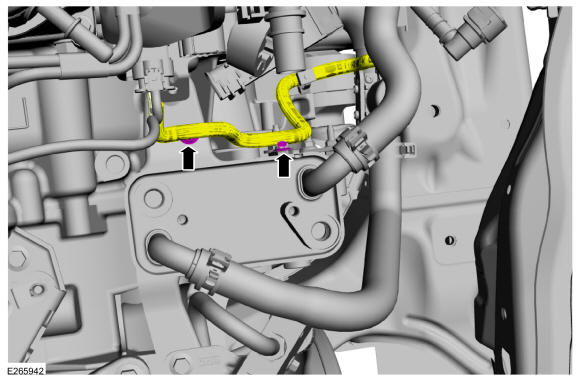

  32. Connect the wiring harness to the transmission warmer bracket.
    GFD326830Courtesy of FORD MOTOR COMPANY

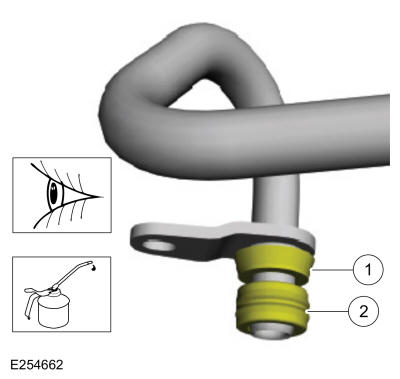

  33. Inspect the transmission fluid tube backing rings and seals for damage and install new backing rings or seals if necessary.

    • Backing ring (7J324)

    • Seal (7D285)

      Material

      : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

    GFD326849Courtesy of FORD MOTOR COMPANY

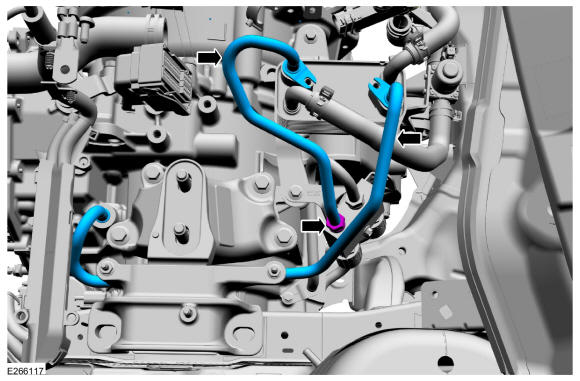

  34. Install the transmission fluid cooler tubes and finger tighten the fitting.
    GFD326850Courtesy of FORD MOTOR COMPANY

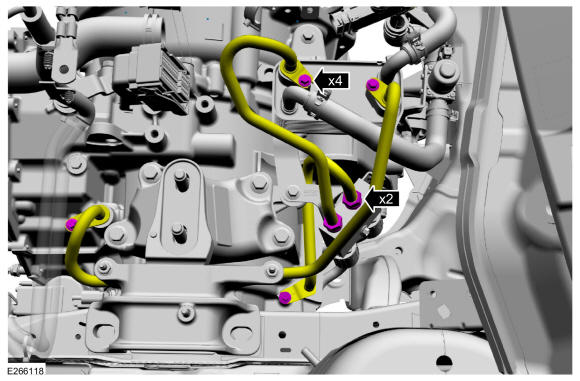

  35. Tighten the transmission fluid cooler tube fittings and the bolts.

    Torque

    : Bolts: 97 lb.in (11 Nm) Fittings: 22 lb.ft (30 Nm)

    GFD326851Courtesy of FORD MOTOR COMPANY

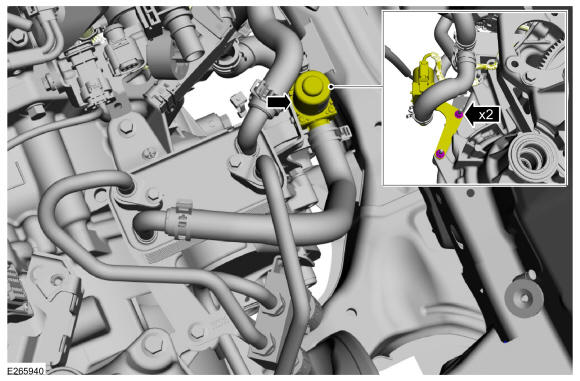

  36. Position back the transmission fluid heater coolant control valve and install the nuts.

    Torque

    : 97 lb.in (11 Nm)

    GFD326827Courtesy of FORD MOTOR COMPANY
  37. Position back the wiring harnesses and connect the transmission main control connector.
    GFD326738Courtesy of FORD MOTOR COMPANY

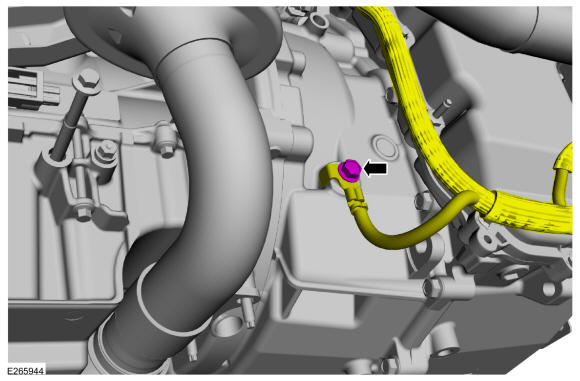

  38. Position back the ground strap and install the bolt.

    Torque

    : 16 lb.ft (22 Nm)

    GFD326826Courtesy of FORD MOTOR COMPANY
  39. Install the starter motor. Refer to: Starter Motor .
  40. Install the catalytic converter. Refer to: Catalytic Converter .

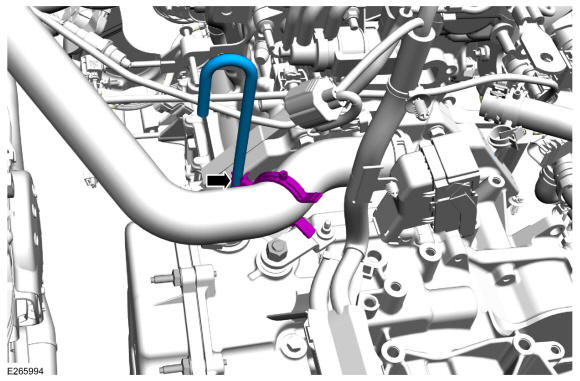

  41. Attach the transmission vent tube to the coolant hose.
    GFD326825Courtesy of FORD MOTOR COMPANY
  42. Position back the selector lever cable and bracket, install the bolts. Connect the selector lever cable end to the manual control lever.

    Torque

    : 18 lb.ft (25 Nm)

    GFD326784Courtesy of FORD MOTOR COMPANY
  43. Install the battery support bracket and the nuts. Install the wiring harness push pin retainers.

    Torque

    : 18 lb.ft (25 Nm)

    GFD326783Courtesy of FORD MOTOR COMPANY

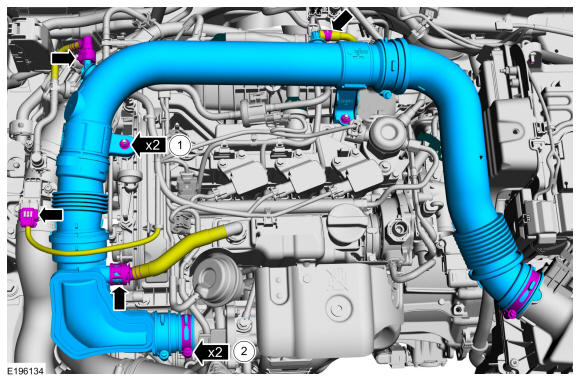

  44. Install the air cleaner. Refer to: Air Cleaner .
    1. Install the air cleaner outlet pipe assembly, tighten the clamps and install the nuts. Connect the vacuum tube to the air outlet pipe. Use the General Equipment: Hose Clamp Remover/Installer

      Torque

      : 1: 97 lb.in (11 Nm) 2: 35 lb.in (4 Nm)

    2. Connect the fuel evaporative tube quick release coupling. Refer to: Quick Release Coupling .
    3. Connect the PCV coupling. Refer to: Quick Release Coupling .
    4. Connect the MAP sensor electrical connector and remove the air cleaner outlet pipe assembly.
    GFD326852Courtesy of FORD MOTOR COMPANY
  45. Install the battery tray. Refer to: Battery Tray .
  46. Install the cowl panel. Refer to: Cowl Panel Grille .
  47. Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6F15 .
  48. Fill the transmission with transmission fluid. Refer to: Transmission Fluid Drain and Refill .
  49. After completing the repairs perform the Misfire Monitor Neutral Profile Correction procedure.
  50. If a new solenoid body is installed, the solenoid body strategy must be updated. Refer to: Transmission Strategy Download .
