Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6F15

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Adjustment

Apply the parking brake.

Courtesy of FORD MOTOR COMPANY
Position the selector lever in D.

Courtesy of FORD MOTOR COMPANY
If equipped with a 1.5L engine, remove the air filter.

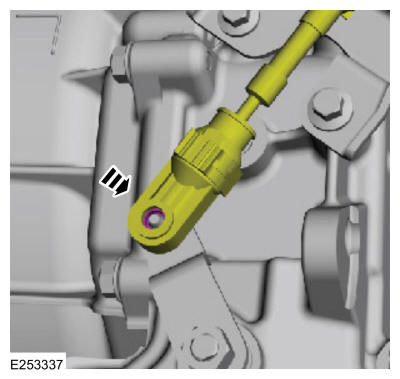

Disconnect the selector lever cable from the transmission manual lever.

Courtesy of FORD MOTOR COMPANY
Position the transmission manual lever in D.
1. Rotate the transmission manual lever counterclockwise until it stops.
2. Rotate the transmission manual lever 3 detents into D.
Courtesy of FORD MOTOR COMPANY

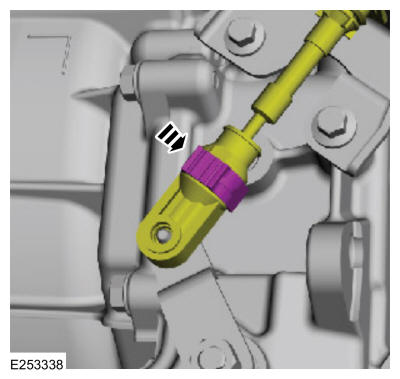

Unlock the selector lever cable adjuster.

Courtesy of FORD MOTOR COMPANY

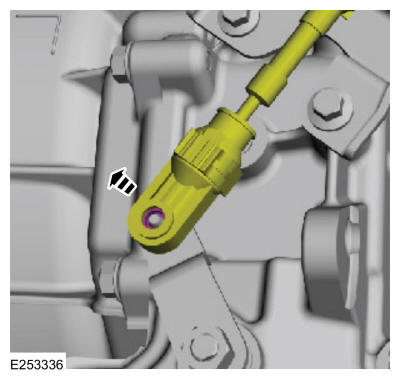

Connect the selector lever cable to the transmission manual lever.

Courtesy of FORD MOTOR COMPANY
Lock the selector lever cable adjuster lock.

Courtesy of FORD MOTOR COMPANY
If equipped with a 1.5L engine, install the air filter.
Verify that the engine starts in P and N and that the reverse lamps illuminate in R.
