Halfshaft Seal RH: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

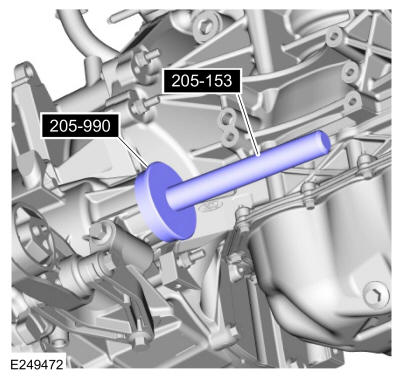

- Install a new halfshaft seal on the special tool. Use Special Service Tool: 205-990 Installer, Axle Seal., 205-153 (T80T-4000-W) Handle.
- Using the special tool, install the halfshaft seal. Use Special Service Tool: 205-990 Installer, Axle Seal., 205-153 (T80T-4000-W) Handle.
- Install the RH halfshaft. Refer to: FRONT HALFSHAFT RH - 1.0L ECOBOOST (92KW/125PS) 1.5L DURATEC (90KW/120PS) - I3, 6-SPEED AUTOMATIC TRANSMISSION - 6F15 .
- Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
