Transmission Fluid Level Check
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Materials
| Name | Specification |
|---|---|
| Motorcraft® MERCON® ULV Automatic Transmission Fluid XT-12-QULV | WSS-M2C949-A, MERCON® ULV |
Check
- Connect the diagnostic scan tool to the vehicle. Monitor the TFT PID.
- With the engine running in PARK on a level surface make sure the transmission is at normal operating temperature 85-93 deg. C (185-200 deg. F). If necessary, drive the vehicle until the transmission is at normal operating temperature 85-93 deg.C (185-200 deg.F).
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Start the engine and slowly select each gear position, stopping in each position and allowing the transmission to engage.

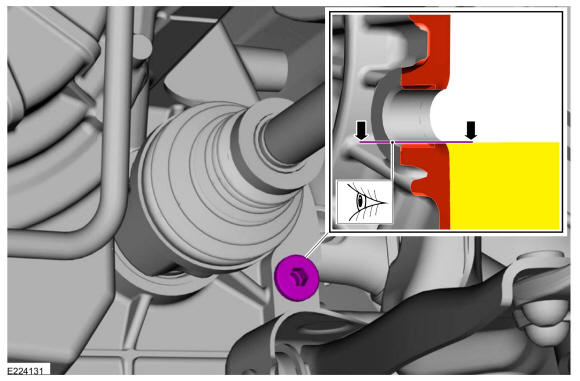

- With the engine running in PARK on a level hoist make sure the transmission is at normal operating temperature 85-93 deg. C (185-200 deg. F). Check the transmission fluid is even with the oil leveling plug hole.

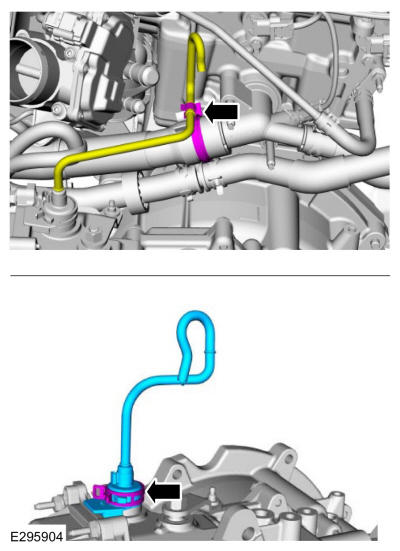

- If the transmission fluid does not seep out of the oil leveling plug hole, remove the vent tube.

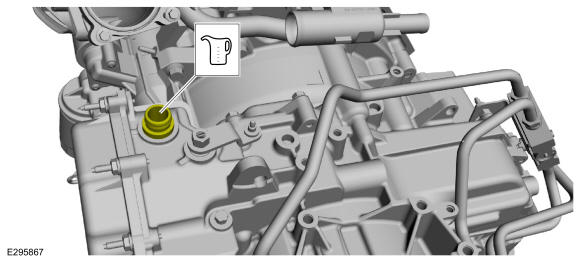

- Add clean transmission fluid in increments of 0.25L (0.5 pt) until the transmission fluid is even with the oil leveling plug hole.
Material
: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

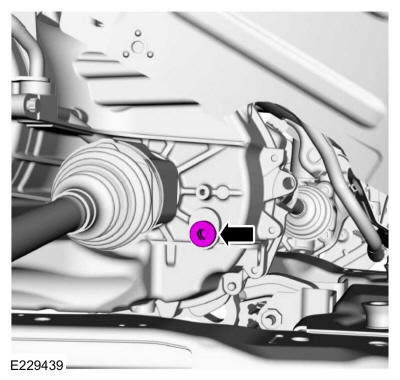

- Install the oil leveling plug.
Torque
: 26 lb.ft (35 Nm)
- Install the vent tube.
