Halfshaft Seal RH - AWD: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the transfer case assembly. Refer to: Transfer Case .

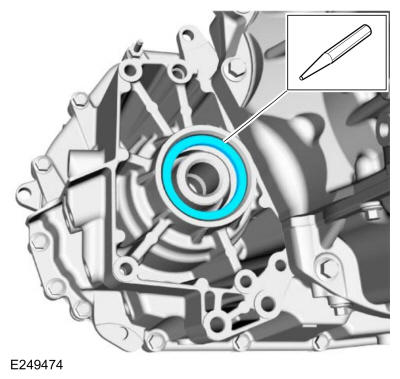

- Using a punch, poke a small hole in the halfshaft seal. Use the General Equipment: Punch

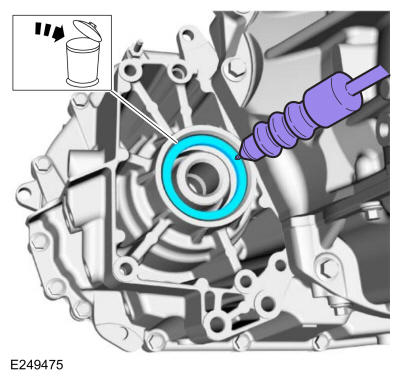

- Using a dent puller, remove and discard the halfshaft seal. Use the General Equipment: Puller
