Front Halfshaft RH - 2.0L Duratec-HE (125kW/170PS) - MI4, AWD: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that a new component is installed.

Replace the transfer case input shaft seal RH. Refer to: Transfer Case Input Shaft Seal RH .

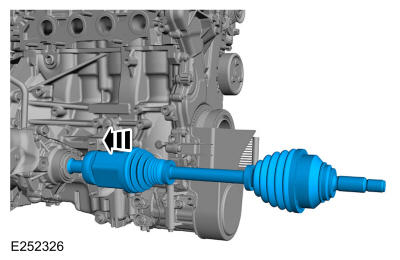

Install the halfshaft until intermediate shaft bearing is seated in the intermediate shaft bearing bracket.

Courtesy of FORD MOTOR COMPANY

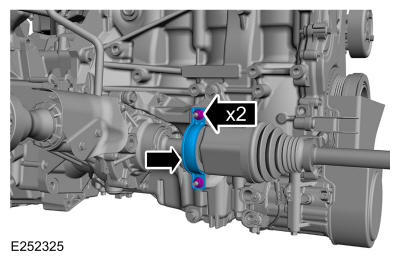

NOTE: Make sure that a new component is installed.

Install the new intermediate shaft bearing strap and new intermediate shaft bearing strap nuts.

Torque: Tighten the lower nut : 44 lb.in (5 Nm) Tighten the upper nut : 18 lb.ft (25 Nm) Tighten the lower nut : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Position the halfshaft through the wheel bearing.

Courtesy of FORD MOTOR COMPANY
Using special tool, pull the halfshaft into the front wheel bearing and wheel hub. Use Special Service Tool: 204-161 (T97P-1175-A) Installer, Halfshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the ball joint ball does not rotate.

NOTE: Make sure that a new component is installed.
1. Attach the tie rod end to the wheel knuckle.
2. Install the new tie rod end nut.
  Torque: 39 lb.ft (53 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new component is installed.

Insert the lower ball joint into the wheel knuckle and install a new bolt and nut.

Torque: 38 lb.ft (52 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the hub nut finger tight at this stage.

Install the wheel hub nut.

Courtesy of FORD MOTOR COMPANY
WARNING: WARNING: Make sure that the alignment line is not twisted.
- Position back the front wheel speed sensor and install the bolt.
  Torque: 80 lb.in (9 Nm)
- Attach the wheel speed sensor retainer.
Courtesy of FORD MOTOR COMPANY
WARNING: WARNING: Make sure that no load is placed on the brake hose.

Position the brake hose and install the bolt.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

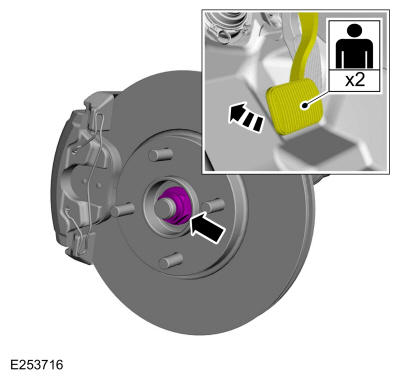

NOTE: Do not tighten the front wheel hub nut with the vehicle on the ground. The nut must be tightened to specification before the vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.

NOTE: Install and tighten the new wheel hub nut to specification in a continuous rotation. Always install a new wheel hub nut after loosening or when not tightened to specification in a continuous rotation or damage to the components may occur.

NOTE: Apply the brake to keep the halfshaft from rotating.

While an assistant applies the brake, install the new wheel hub nut.

Torque: 188 lb.ft (255 Nm)

Courtesy of FORD MOTOR COMPANY
Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
Install the wheel and tire. Refer to: Wheel and Tire .

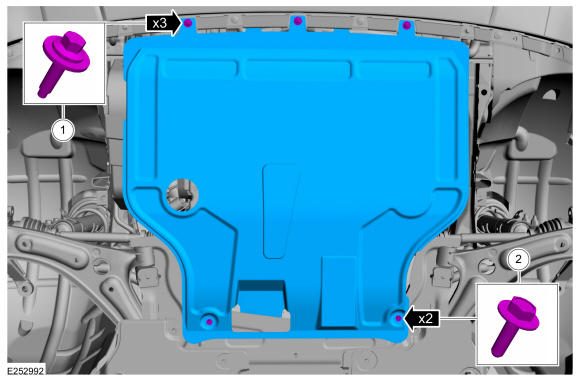

Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
