Front Halfshaft LH - 6-Speed Automatic Transmission - 6F15: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that a new component is installed.

Replace the halfshaft seal. Refer to: Halfshaft Seal LH .
NOTE: Make sure that a new component is installed.

NOTE: Ensure that the circlip opening is aligned and oriented to 6 o' clock position during installation.

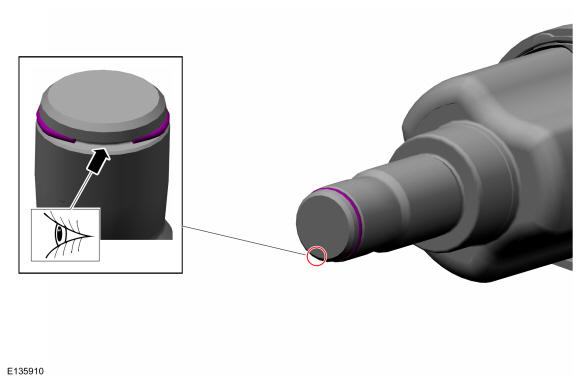

Install the new inner halfshaft retaining circlip.

Courtesy of FORD MOTOR COMPANY

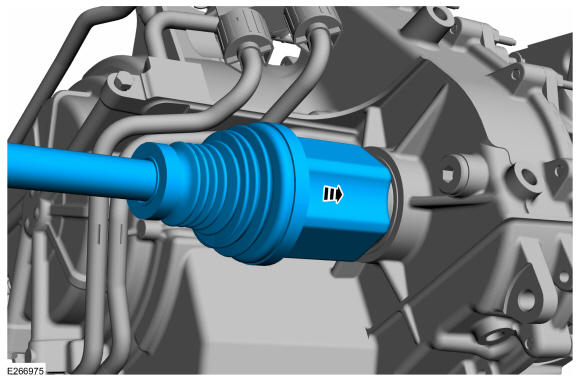

Install the halfshaft until the halfshaft retaining clip is fully seated.

Courtesy of FORD MOTOR COMPANY

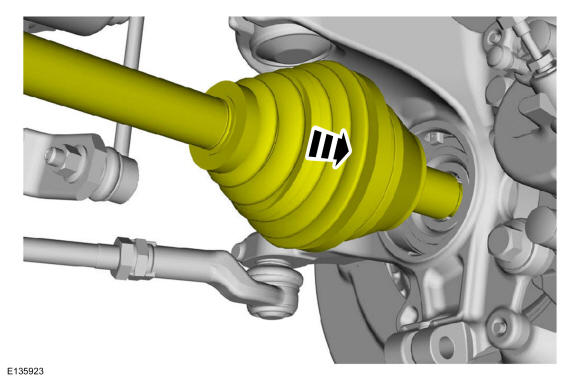

Position the halfshaft through the wheel bearing.

Courtesy of FORD MOTOR COMPANY

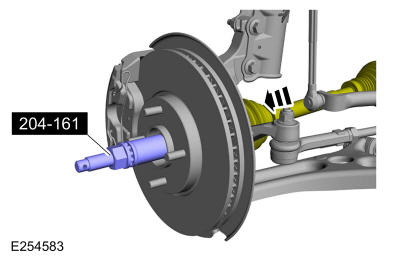

Using special tool, pull the halfshaft into the front wheel bearing and wheel hub. Use Special Service Tool: 204-161 (T97P-1175-A) Installer, Halfshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the ball joint ball does not rotate.

NOTE: Make sure that a new component is installed.

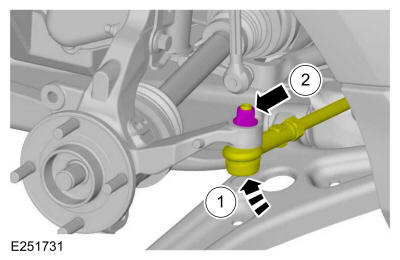

1. Attach the tie rod end to the wheel knuckle.
2. Install the tie rod end nut.
  Torque: 39 lb.ft (53 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new component is installed.

Insert the lower ball joint into the wheel knuckle and install a new bolt and nut.

Torque: 38 lb.ft (52 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the hub nut finger tight at this stage.

Install the new wheel hub nut.

Courtesy of FORD MOTOR COMPANY
WARNING: WARNING: Make sure that the alignment line is not twisted.

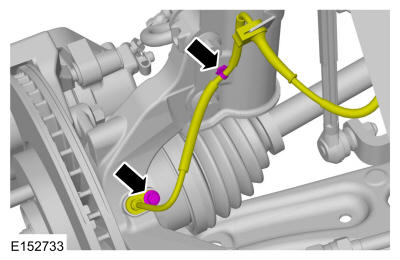

- Position back the front wheel speed sensor and install the bolt.
  Torque: 80 lb.in (9 Nm)
- Attach the wheel speed sensor retainer.
Courtesy of FORD MOTOR COMPANY
WARNING: WARNING: Make sure that no load is placed on the brake hose.

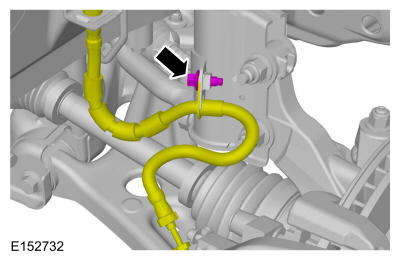

Position the brake hose and install the bolt.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

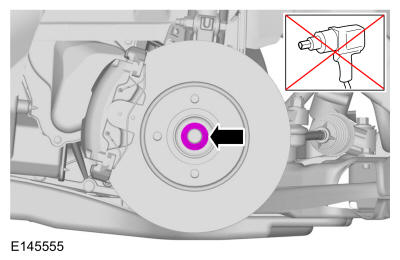

NOTE: Do not tighten the front wheel hub nut with the vehicle on the ground. The nut must be tightened to specification before the vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.

NOTE: Install and tighten the new wheel hub nut to specification in a continuous rotation. Always install a new wheel hub nut after loosening or when not tightened to specification in a continuous rotation or damage to the components may occur.

NOTE: Apply the brake to keep the halfshaft from rotating.

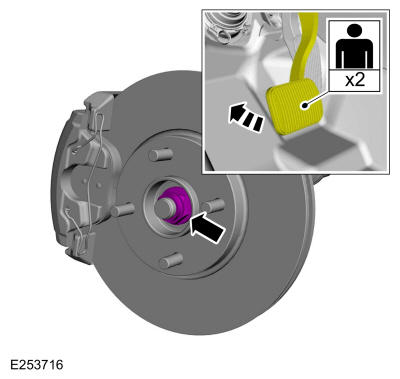

While an assistant applies the brake, install the new wheel hub nut.

Torque: 188 lb.ft (255 Nm)

Courtesy of FORD MOTOR COMPANY
Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
Install the wheel and tire. Refer to: Wheel and Tire .

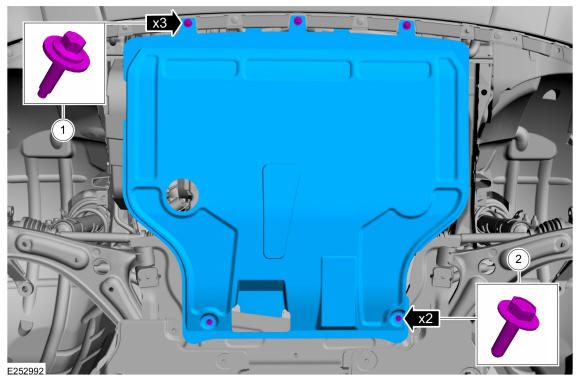

Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
