Steering Column Lock and Ignition Switch Housing: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

Remove the ignition lock cylinder. Refer to: Ignition Lock Cylinder .
Remove the SCCM, Refer to: Steering Column Control Module (SCCM) .

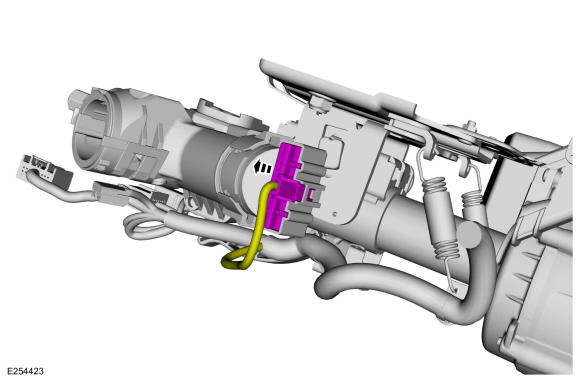

Disconnect the ignition switch electrical connector.

Courtesy of FORD MOTOR COMPANY

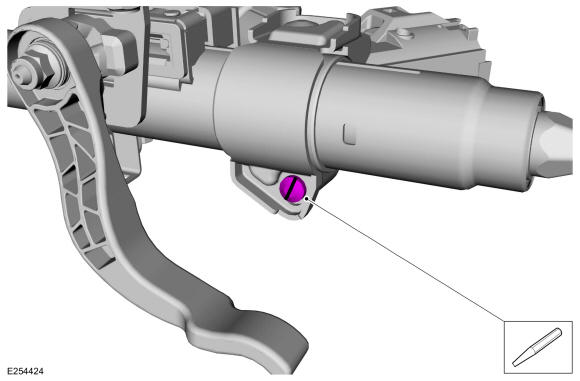

Use a chisel and hammer to cut a slot in the steering column lock and ignition switch housing bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: The steering column lock and ignition switch housing is secured with a break-away head bolt. Tighten the bolt until the hex head portion of the bolt breaks away.

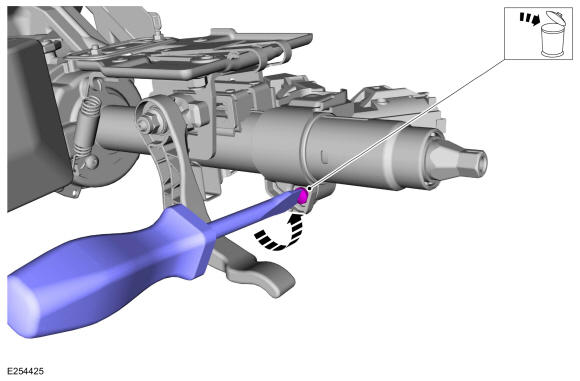

Remove the steering column lock and ignition switch housing bolt. Use the General Equipment: Flat-Bladed Screwdriver

Torque

18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the components before removal.

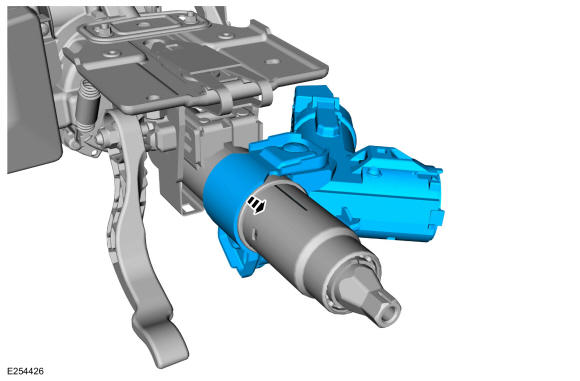

Remove the steering column lock and ignition switch housing.

Courtesy of FORD MOTOR COMPANY
