Ignition Switch - Vehicles With: Push Button Start: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the instrument panel cluster. Refer to: Instrument Panel Cluster (IPC) .

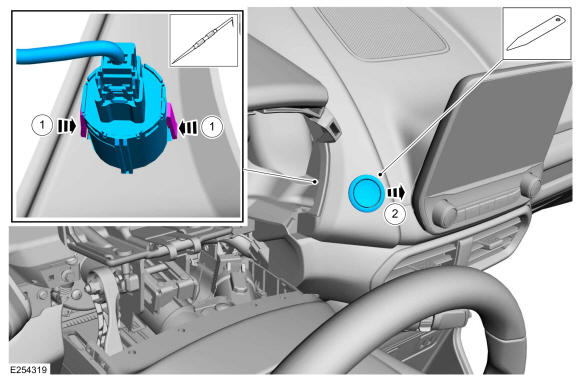

  2. NOTE: The ignition switch can be released through the opening created after removing the instrument panel cluster.

    1. Release the ignition switch locking tabs. Use the General Equipment: Pick Hook
    2. Remove the ignition switch.

    GFD324717Courtesy of FORD MOTOR COMPANY

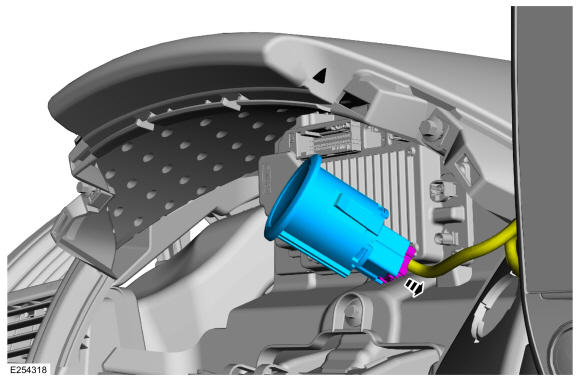

  3. Disconnect the ignition switch electrical connector.
GFD324718Courtesy of FORD MOTOR COMPANY
