Fuel Rail Pressure (FRP) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Remove the intake manifold. Refer to: Intake Manifold .

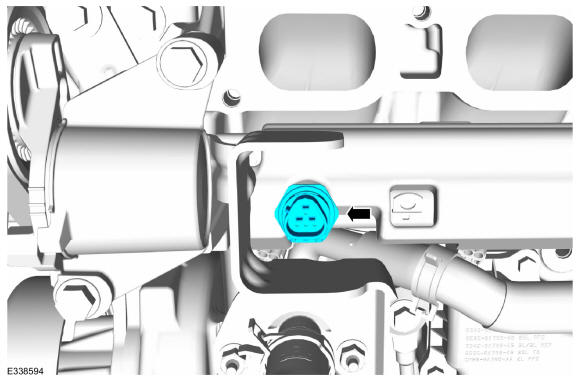

Disconnect the FRP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: During repair procedure, cleanliness is extremely important. Any foreign material, including any material created while cleaning or removing components that enters the fuel supply passages may cause engine failure.

NOTE: Use compressed air to remove any foreign material from around the Fuel Rail Pressure (FRP) sensor area before removal.

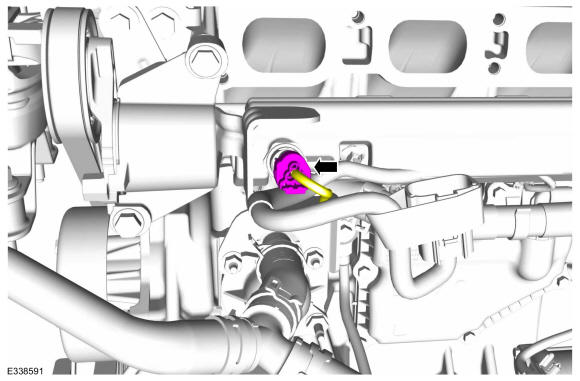

- Remove the FRP sensor.

Courtesy of FORD MOTOR COMPANY
