Cabin Heater Coolant Pump - 1.0L EcoBoost (92kW 125PS): Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery. Refer to: Battery Disconnect and Connect .
With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped, remove the bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY

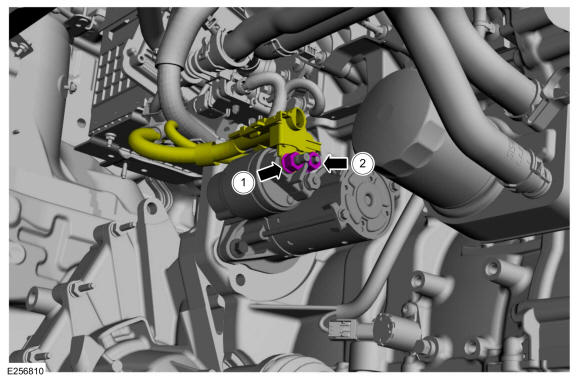

1. Remove the starter motor solenoid positive battery cable retaining nut.
  Torque

  106 lb.in (12 Nm)
2. Remove the starter motor solenoid control wire retaining nut.
  Torque

  53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY

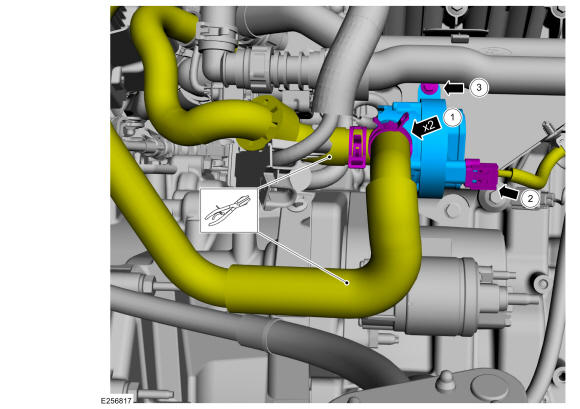

1. Release the clamps and disconnect the heater inlet and outlet hoses. Use the General Equipment: Hose Clamp(s)
2. Disconnect the electrical connector.
3. Remove the bolt and the cabin heater coolant pump.
  Torque

  62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
