Fuel Tank: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Drain the fuel tank. Refer to: Fuel Tank Draining .

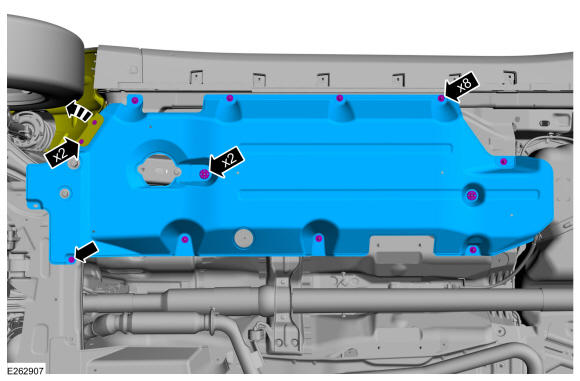

Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

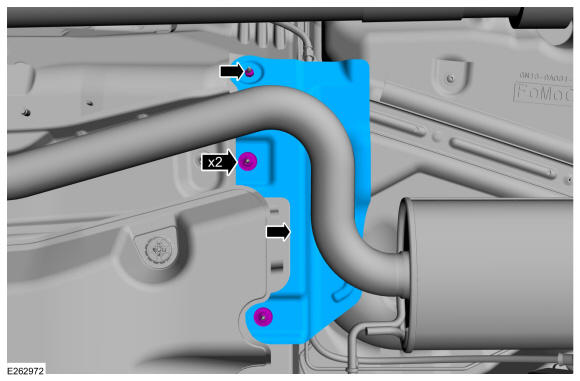

Remove the retainers and the heat shield.

Courtesy of FORD MOTOR COMPANY
Remove and discard the front flange clamp.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

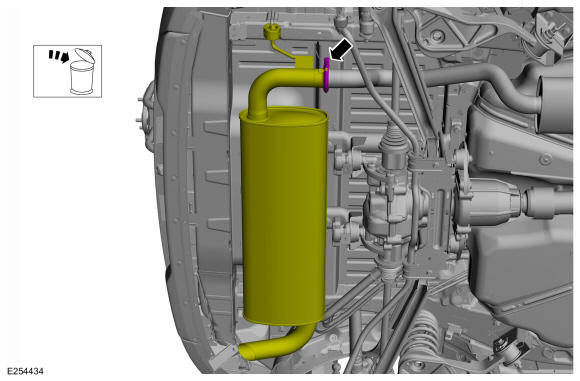

Remove and discard the rear muffler flange clamp.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

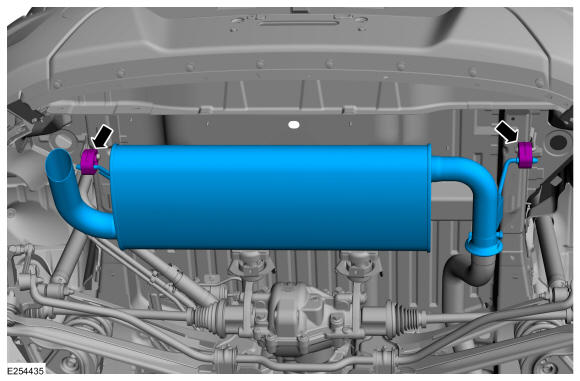

Detach the isolators and remove the rear muffler assembly.

Courtesy of FORD MOTOR COMPANY
Detach the isolators and remove the front muffler pipe assembly.

Courtesy of FORD MOTOR COMPANY
Remove the driveshaft. Refer to: Driveshaft .
NOTE: Some residual fuel may remain in the fuel lines after releasing the fuel system pressure. When disconnecting or removing any fuel lines, carefully drain any residual fuel into a suitable container.
- Disconnect the fuel tube quick release coupling and detach the fuel tube routing retaining clip. Refer to: Quick Release Coupling .
- Detach the parking brake cable routing retainer.
Courtesy of FORD MOTOR COMPANY

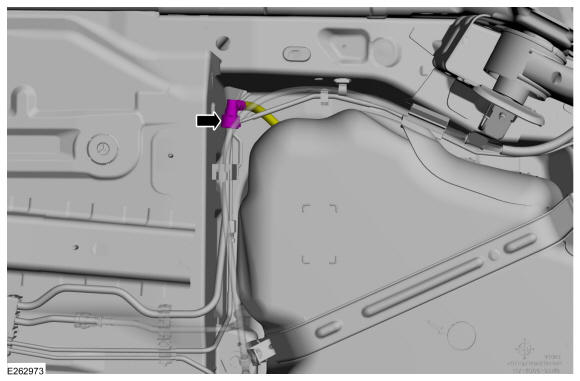

Disconnect the quick release coupling. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

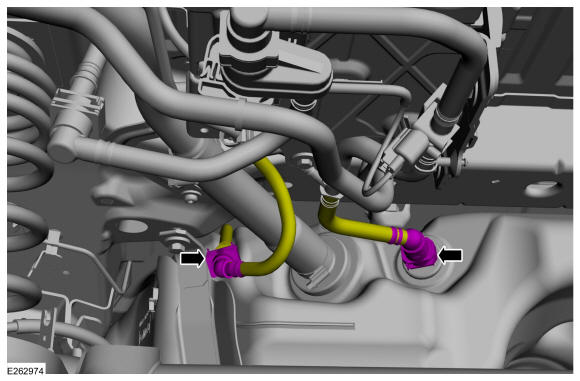

Disconnect the fuel vapor return tube quick release couplings. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

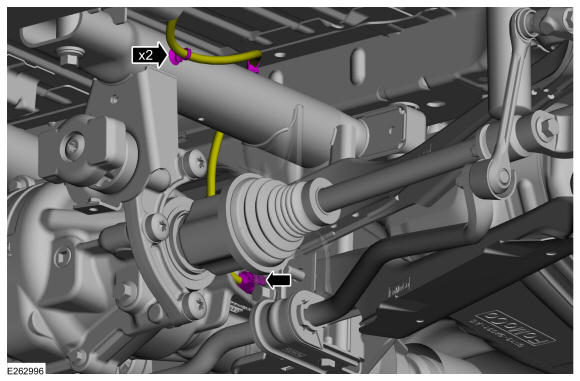

- Disconnect the RDU electrical connector.
- Detach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY

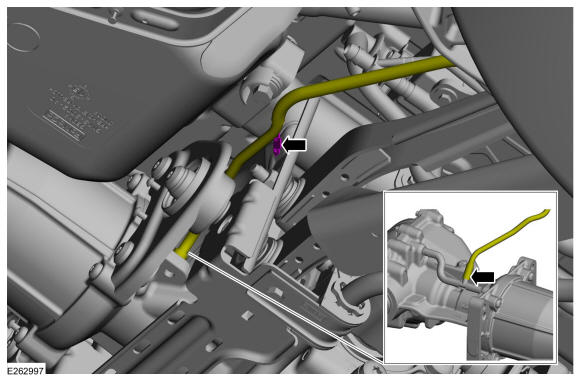

- Disconnect the RDU housing vent tube.
- Detach the RDU housing vent tube routing retainer.
Courtesy of FORD MOTOR COMPANY
NOTE: Position a transmission jack under the subframe before removing the subframe bolts.

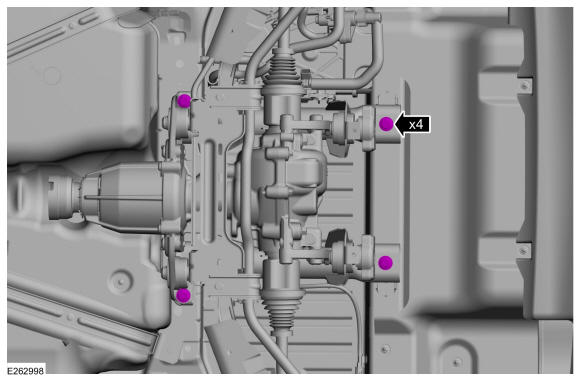

Remove the subframe bolts. Use the General Equipment: Transmission Jack

Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

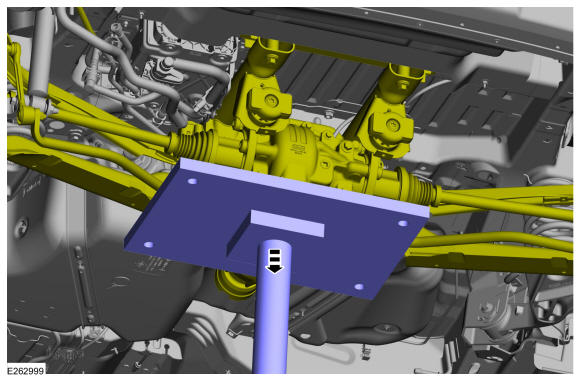

Lower the subframe assembly enough to gain access to the fuel tank. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY

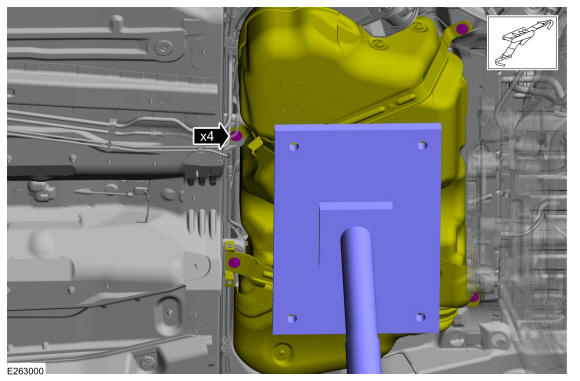

Remove the fuel tank strap bolts. Use the General Equipment: Transmission Jack Use the General Equipment: Retaining Strap

Courtesy of FORD MOTOR COMPANY

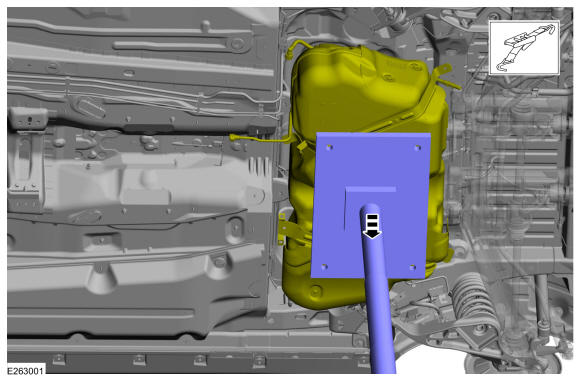

Lower the fuel tank enough to gain access to the vapor tubes. Use the General Equipment: Transmission Jack Use the General Equipment: Retaining Strap

Courtesy of FORD MOTOR COMPANY

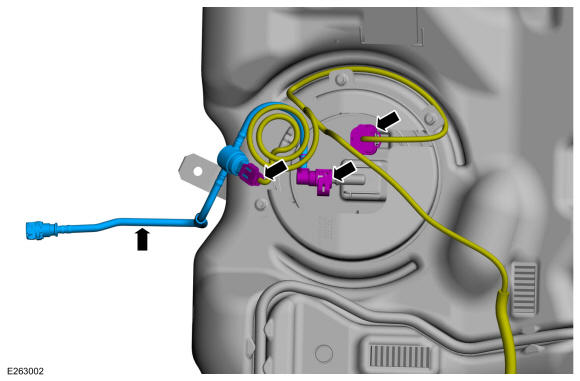

- Disconnect the electrical connectors.
- Disconnect the quick release coupling and remove the fuel tube. Refer to: Quick Release Coupling .
Courtesy of FORD MOTOR COMPANY
Loosen the clamp and remove the hose.
Torque: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY
Detach the fuel vapor tube from the molded slot in the fuel tank.

Courtesy of FORD MOTOR COMPANY

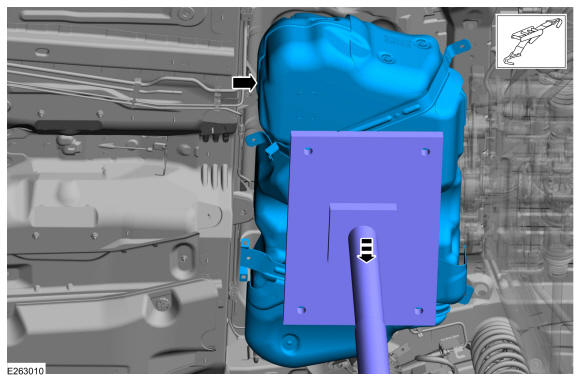

- Lower the front of the fuel tank. Use the General Equipment: Transmission Jack Use the General Equipment: Retaining Strap
- Remove the fuel tank.

Courtesy of FORD MOTOR COMPANY
