Fuel Tank Filler Pipe: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
NOTE: If the fuel tank is completely full, this step will lower the fuel level to the fuel tank inlet.

NOTE: The supplemental refueling adapter is located in the luggage compartment.

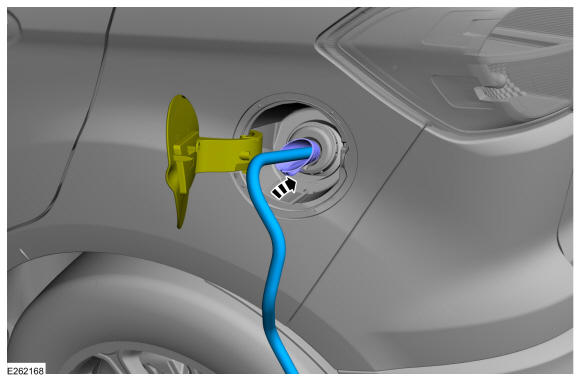

- Install the supplemental refueling adapter and a length of semi-rigid fuel drain tube into the Easy Fuel (capless) fuel tank filler pipe.
- Attach the Fuel Storage Tanker to the fuel drain tube and drain as much fuel as possible from the Easy Fuel (capless) fuel tank filler pipe, lowering the fuel level below the fuel tank inlet spout.
Courtesy of FORD MOTOR COMPANY
Remove the bolts and the rear LH wheel.
Torque: 98 lb.ft (133 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Take extra care when handling the component.

Remove the retainers and position aside the LH rear wheel splash shield.

Courtesy of FORD MOTOR COMPANY

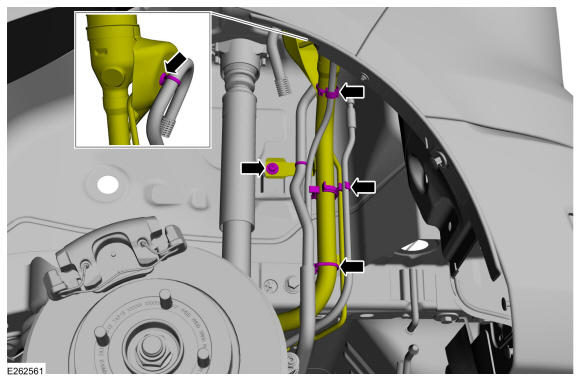

- Disconnect the routing retainers.
- Remove the fuel filler pipe mounting bracket bolt.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

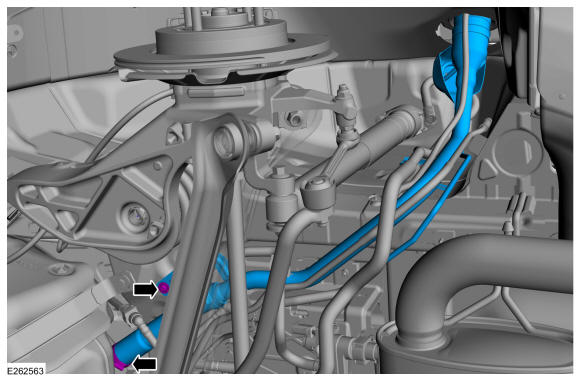

- Disconnect the quick release coupling. Refer to: Quick Release Coupling .
- Disconnect the routing retainer.
Courtesy of FORD MOTOR COMPANY

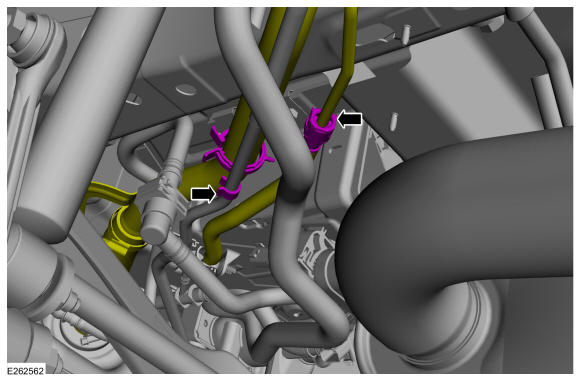

- Loosen the hose clamp and disconnect the hose.
  Torque: 35 lb.in (4 Nm)
- Remove the mounting bracket bolt and the fuel tank filler pipe.
  Torque: 97 lb.in (11 Nm)
