Fuel Lines: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

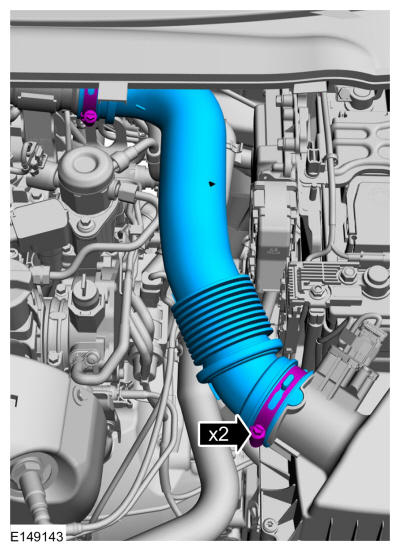

Remove the clamps and air cleaner outlet pipe.
Torque: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY

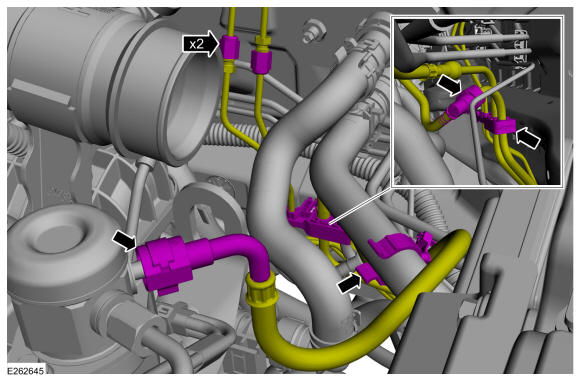

NOTE: Some residual fuel may remain in the fuel lines after releasing the fuel system pressure. When disconnecting or removing any fuel lines, carefully drain any residual fuel into a suitable container.
- Disconnect the brake lines.
  Torque: 133 lb.in (15 Nm)
- Disconnect the fuel line retainers.
- Disconnect the quick release couplings. Refer to: Quick Release Coupling .
Courtesy of FORD MOTOR COMPANY

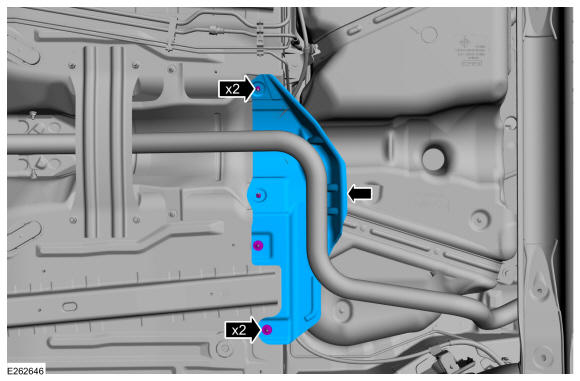

Remove the retainers and the heat shield.

Courtesy of FORD MOTOR COMPANY

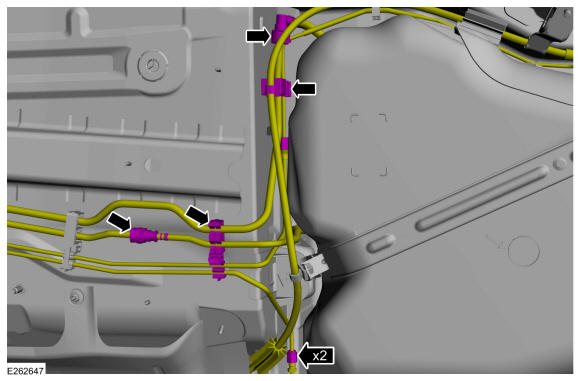

NOTE: Some residual fuel may remain in the fuel lines after releasing the fuel system pressure. When disconnecting or removing any fuel lines, carefully drain any residual fuel into a suitable container.
- Disconnect the brake lines.
  Torque: 133 lb.in (15 Nm)
- Disconnect the fuel line retainers.
- Disconnect the quick release couplings. Refer to: Quick Release Coupling .
Courtesy of FORD MOTOR COMPANY

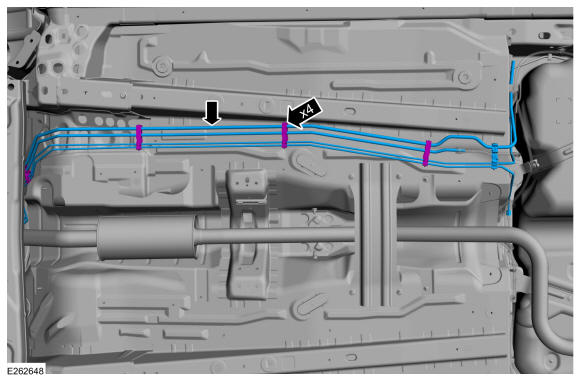

Disconnect the fuel line retainers and remove the fuel lines.

Courtesy of FORD MOTOR COMPANY
