Transmission Fluid Cooler Tubes: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

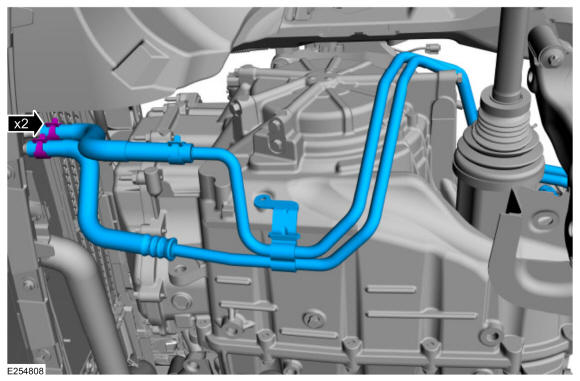

Install the transmission fluid cooler tubes and position the clamps.

Courtesy of FORD MOTOR COMPANY

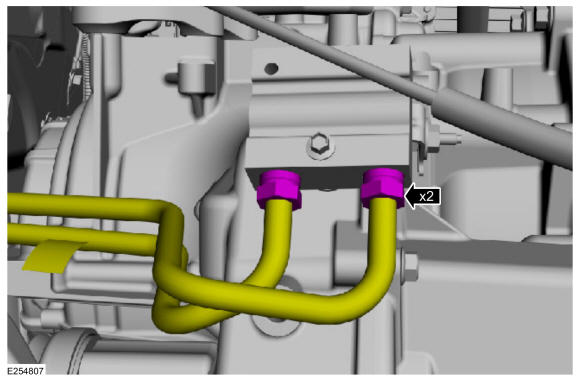

Tighten the transmission fluid cooler tubes fittings to the cooler bypass valve.

Courtesy of FORD MOTOR COMPANY

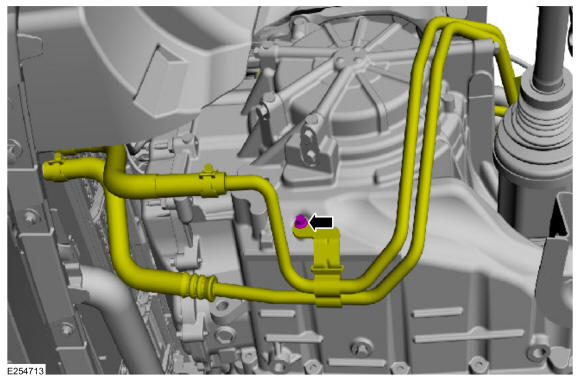

Install the transmission fluid cooler tubes bracket bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

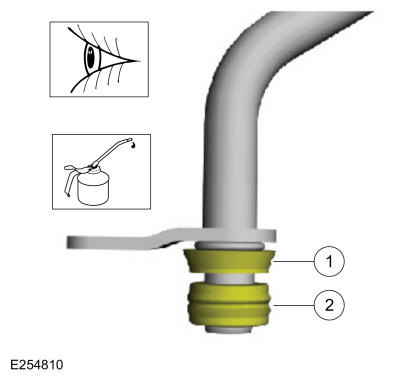

Inspect the transmission fluid tube backing rings and seals for damage and install new backing rings or seals if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
  Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
Courtesy of FORD MOTOR COMPANY

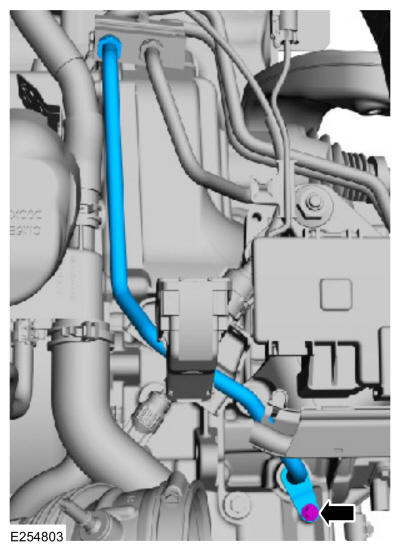

Install the cooler bypass valve-to-transmission fluid tube and the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

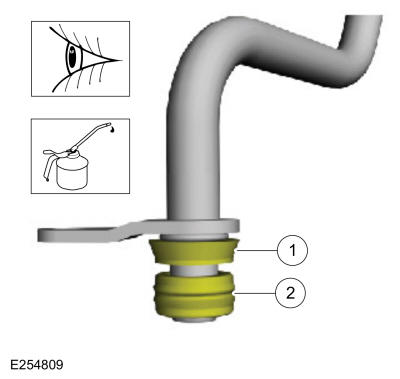

Inspect the transmission fluid tube backing rings and seals for damage and install new backing rings or seals if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
  Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
Courtesy of FORD MOTOR COMPANY

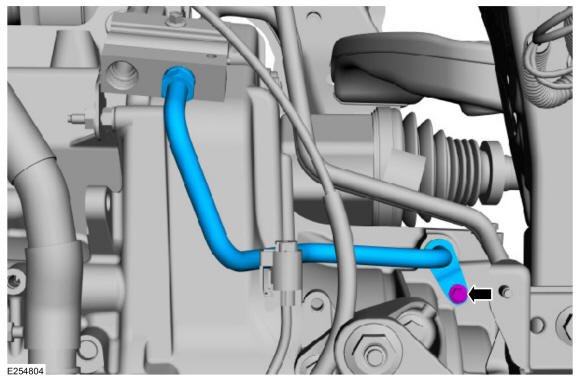

Install the transmission-to-cooler bypass valve tube and the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

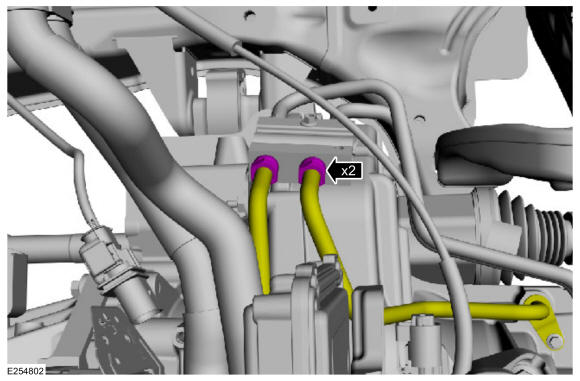

Tighten the transmission fluid cooler tubes fittings to the cooler bypass valve.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Install the battery tray. Refer to: Battery Tray .
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
