Transmission Fluid Cooler Tubes - 1.5L Duratec (90kW 120PS) " I3: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

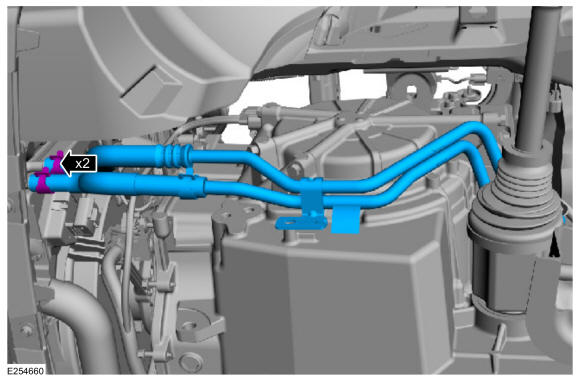

- Install the transmission cooler-to-cooler bypass valve tubes.
- Connect the transmission fluid cooler-to-cooler bypass valve tubes to the cooler bypass valve.
- Install the transmission fluid cooler tubes secondary latches.
- Install the transmission fluid cooler tubes bracket bolt.
Torque: 89 lb.in (10 Nm)
- Inspect the transmission fluid tube backing rings and seals for damage and install new backing rings or seals if necessary.
- Backing ring (7J324)
- Seal (7D285)
Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

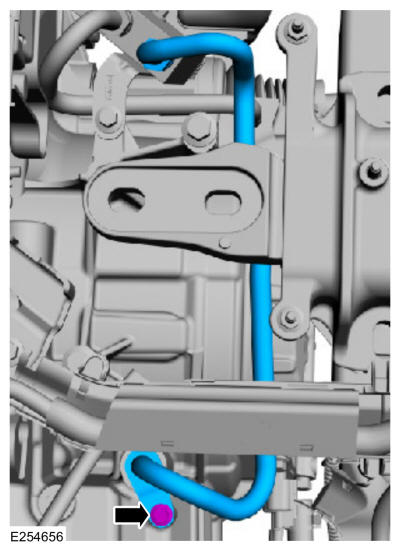

- Install the cooler bypass valve-to-transmission tube and the bolt.
Torque: 89 lb.in (10 Nm)
- Inspect the transmission fluid tube backing rings and seals for damage and install new backing rings or seals if necessary.
- Backing ring (7J324)
- Seal (7D285)
Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

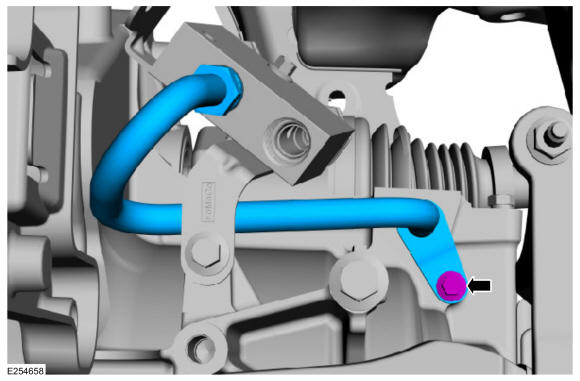

- Install the transmission-to-cooler bypass valve tube and the bolt.
Torque: 89 lb.in (10 Nm)

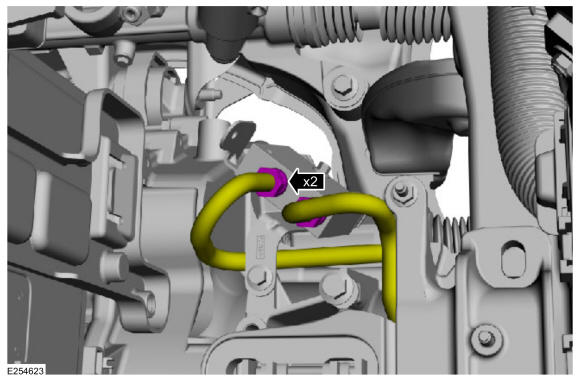

- Tighten the transmission-to-bypass valve tubes to the cooler bypass valve.
Torque: 22 lb.ft (30 Nm)
- Install the battery tray. Refer to: Battery Tray .
- Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
