Transmission Fluid Cooler Tubes - 1.0L EcoBoost (92kW 125PS): Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the transmission fluid tube backing ring and seal for damage and install a new backing ring or seal if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
  Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)
Courtesy of FORD MOTOR COMPANY
Position the cooler bypass valve-to-transmission tube and the cooler bypass valve and install the bolt.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the cooler bypass valve-to-transmission tube fitting and install the bolt.
1. Tighten the fitting.
  Torque: 16 lb.ft (22 Nm)
2. Install the bolt.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
Inspect the transmission fluid tube backing ring and seal for damage and install a new backing ring or seal if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
  Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)
Courtesy of FORD MOTOR COMPANY
Install the transmission fluid warmer-to-cooler bypass valve tube, install the bolt and tighten the fitting.
- Install the bolt.
  Torque: 80 lb.in (9 Nm)
- Tighten the fitting.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
Inspect the transmission fluid tube backing rings and seals for damage and install new backing rings or seals if necessary.
1. Backing ring (7J324)
2. Seal (7D285)
  Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)
Courtesy of FORD MOTOR COMPANY
Install the transmission-to-transmission fluid warmer tube and the bolts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the battery tray. Refer to: Battery Tray .

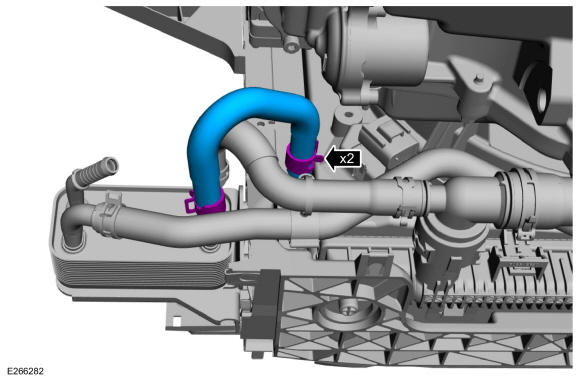

Install the transmission fluid cooler-to-auxiliary transmission fluid cooler hose and position the clamps.

Courtesy of FORD MOTOR COMPANY

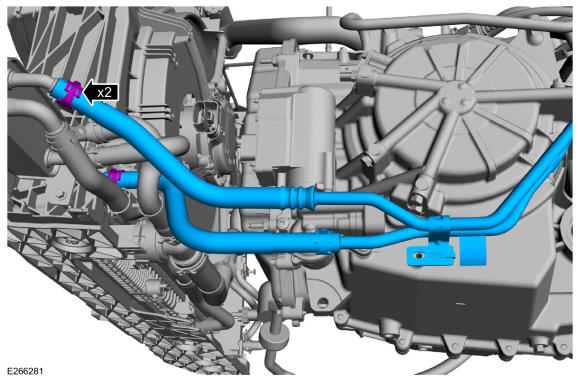

Install the transmission fluid cooler-to-bypass valve tube assembly and position the clamps.

Courtesy of FORD MOTOR COMPANY

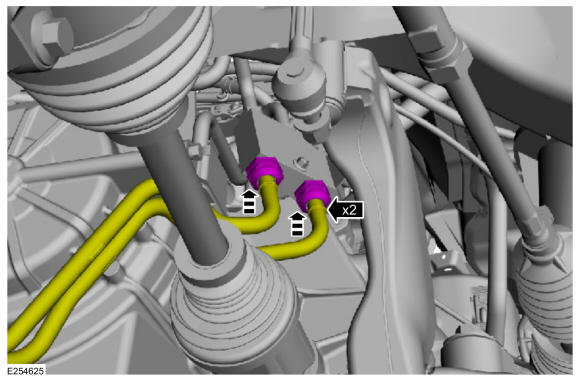

Connect the transmission fluid cooler-to-cooler bypass valve tubes to the cooler bypass valve.

Courtesy of FORD MOTOR COMPANY

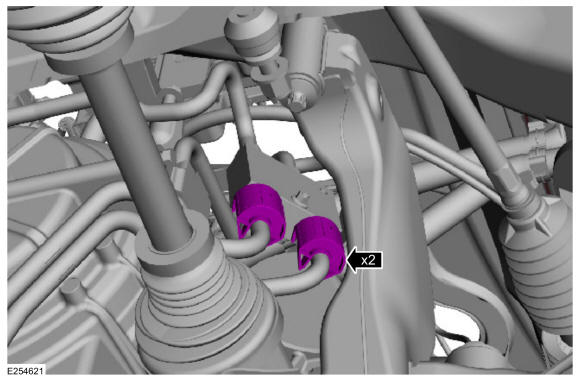

Install the transmission fluid cooler tubes secondary latches.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid cooler tube assembly bracket bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
