Cooler Bypass Valve - 1.0L EcoBoost (92kW 125PS): Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

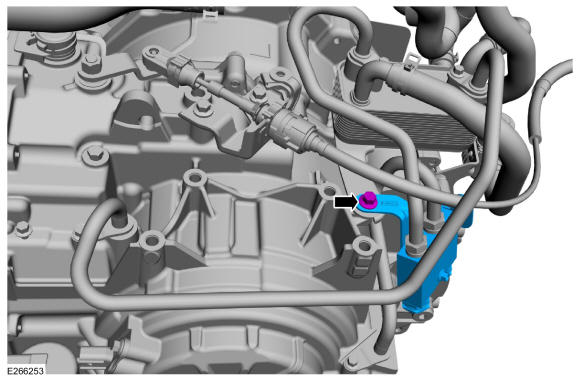

- Position the cooler bypass valve and install the bolt.
Torque: 18 lb.ft (25 Nm)

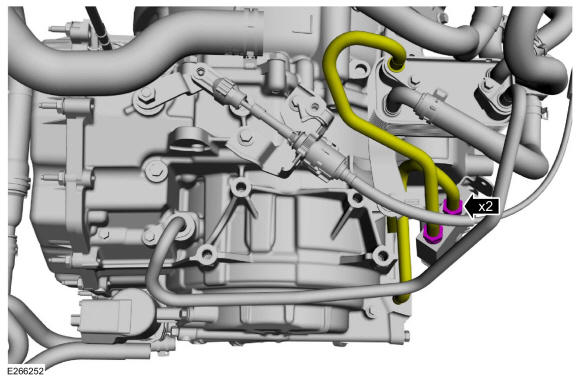

- Tighten the transmission-to-bypass valve tubes to the cooler bypass valve.
Torque: 22 lb.ft (30 Nm)
- Install the battery tray. Refer to: Battery Tray .
- Connect the transmission fluid cooler-to-cooler bypass valve tubes to the cooler bypass valve.
- Install the transmission fluid cooler tubes secondary latches.
- Install the transmission fluid cooler tubes bracket bolt.
Torque: 89 lb.in (10 Nm)
- Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
