Transmission Description - Component Location
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

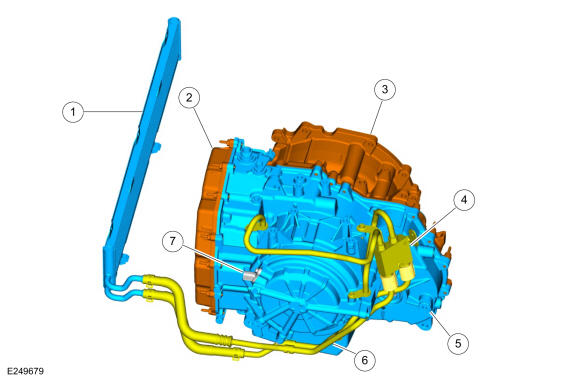

Automatic transmission 6F15
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Oil cooler assembly |
| 2 |
Transmission side cover |
| 3 |
Torque converter housing |
| 4 |
Thermal bypass valve |
| 5 |
Transmission housing |
| 6 |
Oil cooler tube assembly |
| 7 |
Turbine shaft speed sensor |
