Transmission Fluid Temperature (TFT) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

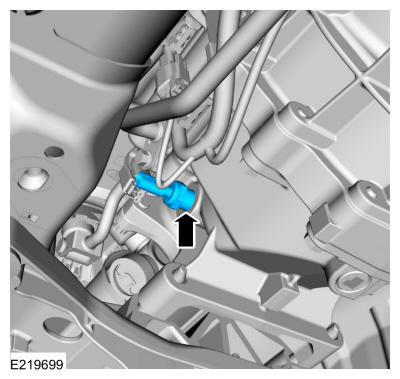

  1. Install the TFT sensor.

    Torque: 97 lb.in (11 Nm)

    GFD288383Courtesy of FORD MOTOR COMPANY

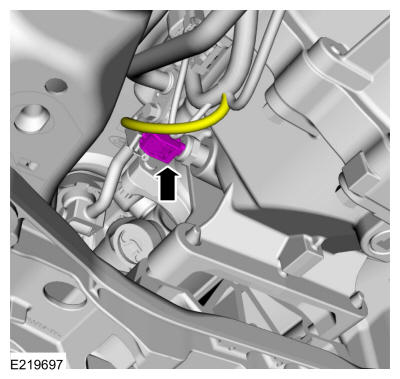

  2. Connect the TFT sensor electrical connector.
    GFD288384Courtesy of FORD MOTOR COMPANY
  3. Fill the transmission. Refer to: Transmission Draining and Filling .
