Ignition Coil-On-Plug: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery. Refer to: Battery Disconnect and Connect .
  2. Remove the engine appearance cover retaining nuts, remove the engine appearance cover retaining bolts and then remove the engine appearance cover.
    GFD286882Courtesy of FORD MOTOR COMPANY
  3. NOTE: If equipped with a sliding cover over the locking tab, then slide the cover back to gain access to the tab.

    1. Disconnect the wiring harness retainers.
    2. Depress the locking tab on the ignition coil-on-plug electrical connector, and disconnect ignition coil-on-plug electrical connectors.

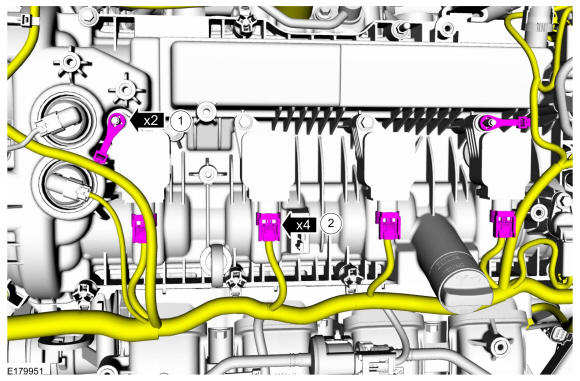

    GFD287124Courtesy of FORD MOTOR COMPANY
  4. NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
    NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    1. Remove the ignition coil-on-plug mounting bolts.
    2. Remove the ignition coil-on-plugs.

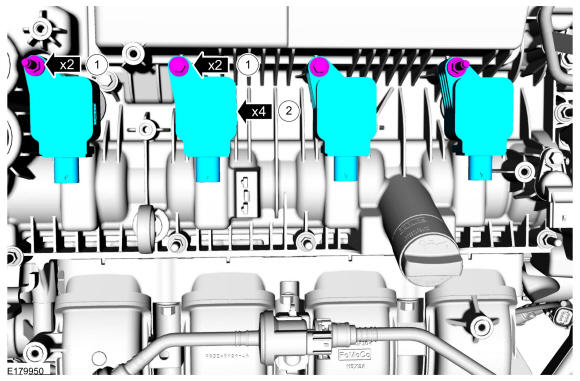

GFD287125Courtesy of FORD MOTOR COMPANY
