Ignition Coil-On-Plug: Installation

WARNING: This page is about a different variant/trim than selected.

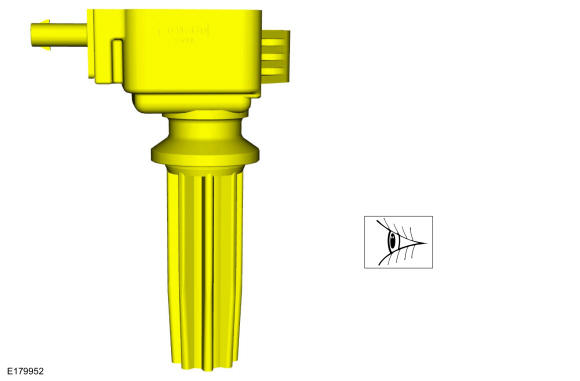

  1. Inspect the ignition coil-on-plug assembly for cracks, rips, or tears. Replace any damaged coil-on-plug assemblies.
    GFD287126Courtesy of FORD MOTOR COMPANY

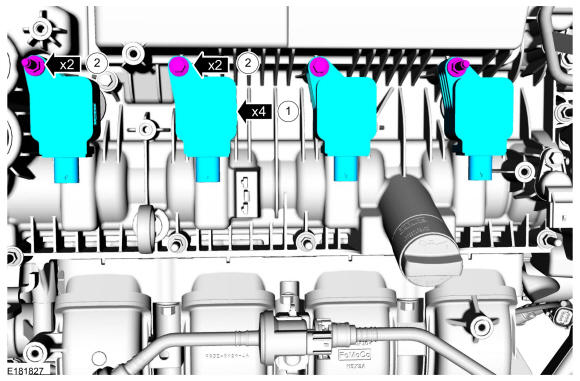

    1. Install the ignition coil-on-plugs.
    2. Install the ignition coil-on-plug mounting bolts.

      Torque: 89 lb.in (10 Nm)

    GFD287127Courtesy of FORD MOTOR COMPANY

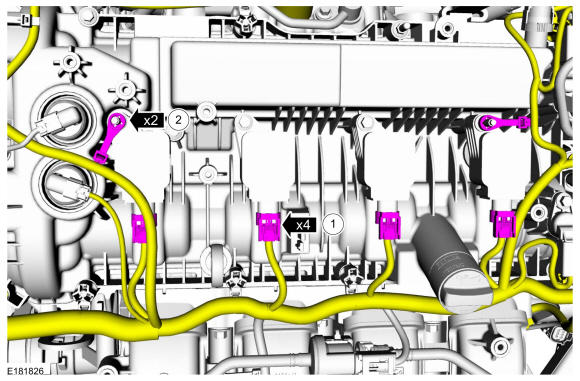

  3. NOTE: If equipped with a sliding cover over the locking tab, then slide the cover back to gain access to the tab.

    1. Connect the ignition coil-on-plug the electrical connectors and press the locking tab.
    2. Connect the wiring harness retainers.

    GFD287128Courtesy of FORD MOTOR COMPANY
  4. Install the engine appearance cover, then install and tighten the engine appearance cover retaining nuts and bolts.

    Torque: 80 lb.in (9 Nm)

    GFD286882Courtesy of FORD MOTOR COMPANY
  5. Connect the battery. Refer to: Battery Disconnect and Connect .
