Valve Cover LH: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    GFD286522Courtesy of FORD MOTOR COMPANY
  2. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the special tools, install new VCT variable force solenoid seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.

    GFD286523Courtesy of FORD MOTOR COMPANY

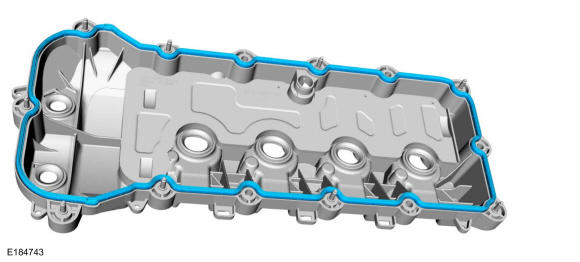

  3. Install a new gasket.
    GFD286524Courtesy of FORD MOTOR COMPANY

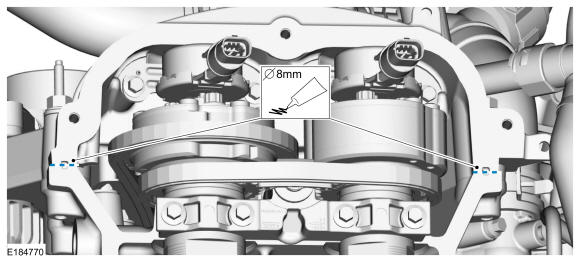

  4. NOTE: If the valve cover is not installed and the fasteners tightened within 5 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 8 mm (0.31 in) bead of silicone gasket and sealant to the engine front cover-to-cylinder head joints.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD286525Courtesy of FORD MOTOR COMPANY

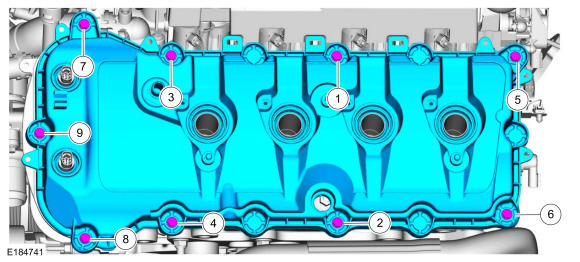

  5. Install the valve cover and tighten the bolts.

    Torque: 89 lb.in (10 Nm)

    Fig 1: LH Valve Cover Tightening Sequence
    GFD286526Courtesy of FORD MOTOR COMPANY

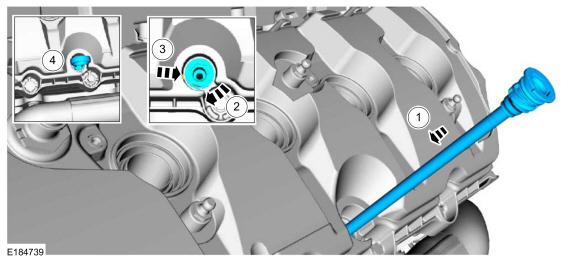

    1. Push the oil level indicator tube into the engine.
    2. Rotate the oil level indicator tube clockwise.
    3. Verify the tab is locked in place.
    4. Install the oil level indicator.
    GFD286527Courtesy of FORD MOTOR COMPANY

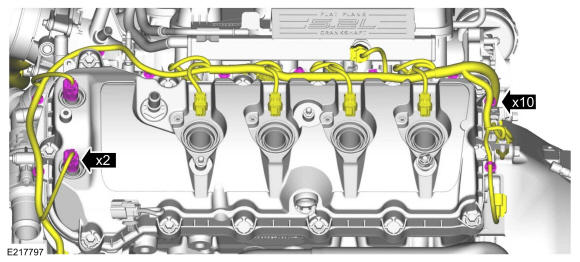

    • Attach the wiring harness retainers.

    • Connect the VCT variable force solenoid electrical connectors.

    GFD286515Courtesy of FORD MOTOR COMPANY
  8. Install the LH ignition coils. Refer to: Ignition Coil-On-Plug .

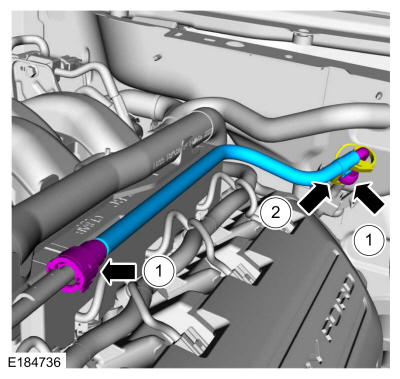

    1. Position the fuel tube and connect the quick release couplings. Refer to: Quick Release Coupling .
    2. Install the safety clip.
    GFD286528Courtesy of FORD MOTOR COMPANY

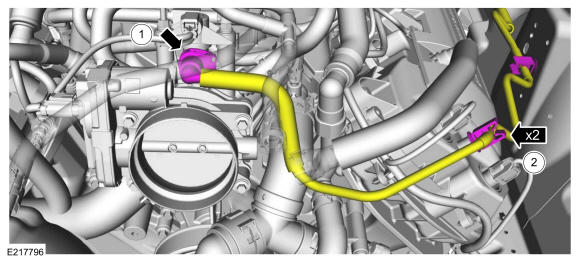

    1. Connect the EVAP tube coupling. Refer to: Quick Release Coupling .
    2. Attach the EVAP tube to the retainers.
    GFD286513Courtesy of FORD MOTOR COMPANY
  11. Install the cowl extension and the fasteners.

    Torque: 26 lb.ft (35 Nm)

    GFD286381Courtesy of FORD MOTOR COMPANY
  12. Install the following items:

    1. Refer to: Cowl Panel Grille .
    2. Refer to: Air Cleaner .
    3. Refer to: Air Cleaner Outlet Pipe .

    1. Install the strut tower cross brace and nuts.

      Torque: 41 lb.ft (55 Nm)

    2. Attach the wiring harness retainer.
    GFD286380Courtesy of FORD MOTOR COMPANY
  14. Connect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .
