Exhaust Manifold RH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .
    • Detach the wiring harness retainer.

    • Remove and discard the nuts. Remove the strut tower cross brace.

    GFD286372Courtesy of FORD MOTOR COMPANY
  3. Remove the following items:

    1. Refer to: Cowl Panel Grille .
    2. Refer to: Battery Tray .
    3. Refer to: Air Conditioning (A/C) Compressor Belt .

  4. Remove the fasteners and the cowl extension.
    GFD286381Courtesy of FORD MOTOR COMPANY
  5. Remove the fasteners and the battery heat shield.
    GFD286382Courtesy of FORD MOTOR COMPANY

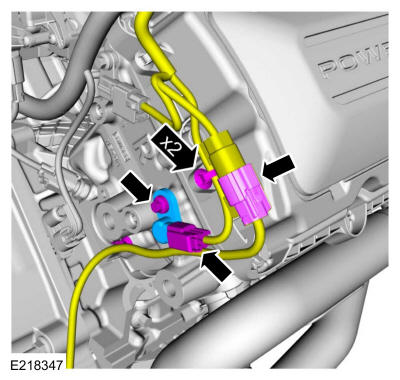

    • Disconnect the CMP sensor and the HO2S electrical connectors, the wiring harness retainers and position the harness aside.

    • Remove the bolt and the CMP sensor.

    GFD286394Courtesy of FORD MOTOR COMPANY
  6. Remove the LH engine mount nut.
    GFD286373Courtesy of FORD MOTOR COMPANY
  7. Remove the RH engine mount nut.
    GFD286374Courtesy of FORD MOTOR COMPANY
  8. Remove the bolts and the underbody shield.
    GFD286375Courtesy of FORD MOTOR COMPANY
  9. Remove the bolts and the underbody shield.
    GFD286376Courtesy of FORD MOTOR COMPANY
  10. Remove the following items:

    1. Refer to: Catalytic Converter RH .
    2. Refer to: Starter Motor .

  11. Remove the bolts and disconnect the oil cooler hoses.
    GFD286377Courtesy of FORD MOTOR COMPANY
  12. NOTE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs should be positioned on the body structure. Failure to follow these instructions may result in body damage.

    Install the special tools and raise the engine 50 mm (2 inch). Use Special Service Tool: 303-F072 Support Bar, Engine, 303-050 (T70P-6000) Lifting Bracket, Engine.

    GFD286395Courtesy of FORD MOTOR COMPANY
  13. Remove the nut and ground strap from the RH engine mount bracket stud bolt.
    GFD286396Courtesy of FORD MOTOR COMPANY
  14. Remove the nut and position the wiring harness aside.
    GFD286397Courtesy of FORD MOTOR COMPANY
  15. If equipped, remove the nuts and position the transmission cooler tubes aside.
    GFD286398Courtesy of FORD MOTOR COMPANY
  16. Remove the fasteners and the RH engine mount bracket.
    GFD286399Courtesy of FORD MOTOR COMPANY
  17. Detach the wiring harness retainers from the A/C compressor stud bolts.
    GFD286400Courtesy of FORD MOTOR COMPANY
  18. Remove the stud bolts and position the A/C compressor aside.
    GFD286401Courtesy of FORD MOTOR COMPANY

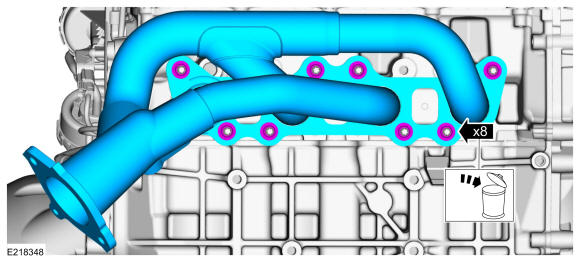

    • Remove the nuts and the RH exhaust manifold.

    • Discard the nuts.

    GFD286402Courtesy of FORD MOTOR COMPANY

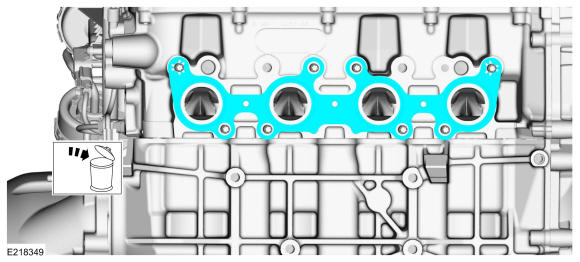

  19. Remove and discard the gasket.
    GFD286403Courtesy of FORD MOTOR COMPANY

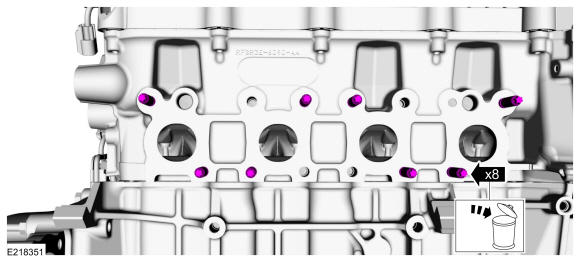

  20. Remove and discard the studs.
GFD286404Courtesy of FORD MOTOR COMPANY
