Exhaust Manifold RH: Installation

WARNING: This page is about a different variant/trim than selected.

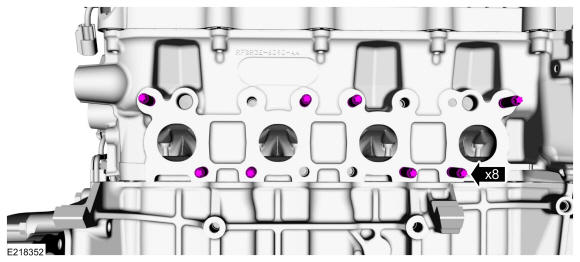

Install new studs.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

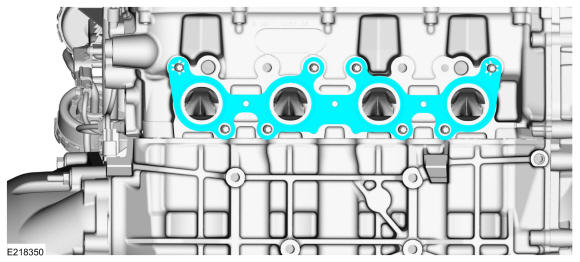

Install a new gasket.

Courtesy of FORD MOTOR COMPANY
1. Position the RH exhaust manifold onto the engine and finger-tighten the nuts.
2. Tighten the nuts in the sequence shown.
  Torque: 24 lb.ft (32 Nm)

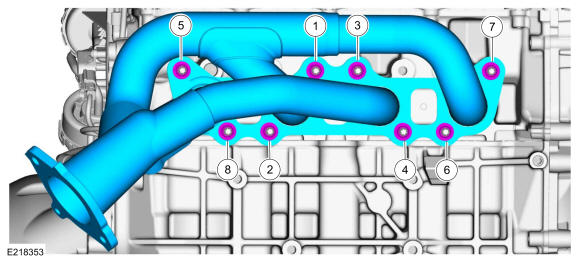

Fig 1: RH Exhaust Manifold Tightening Sequence
Courtesy of FORD MOTOR COMPANY

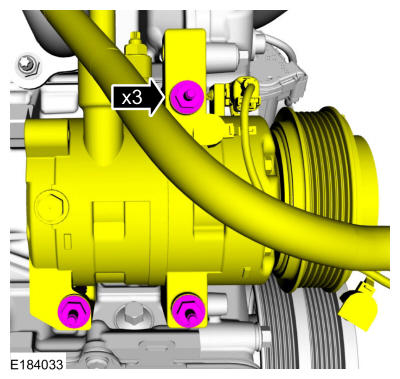

Install the A/C compressor and the stud bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

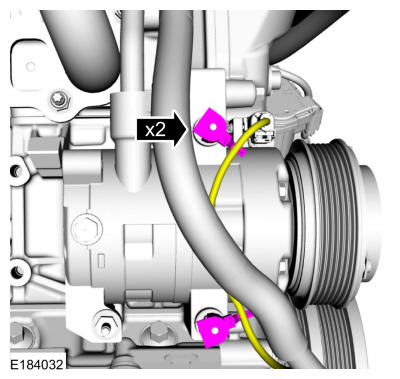

Attach the wiring harness retainers to the A/C compressor stud bolts.

Courtesy of FORD MOTOR COMPANY

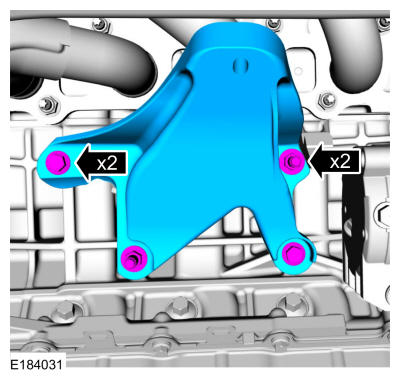

Install the RH motor mount bracket and the fasteners.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

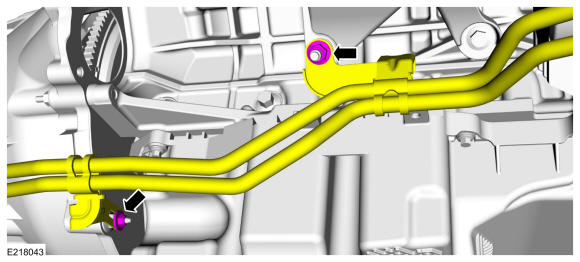

If equipped, position the transmission cooler tubes and install the nuts.
Torque: Bracket-to-engine mount bracket stud nut: 159 lb.in (18 Nm) Bracket-to-engine cover stud nut: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

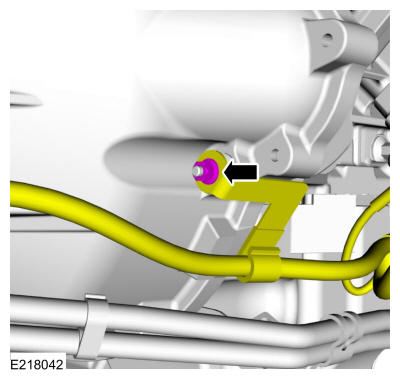

Position the wiring harness and install the nut.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

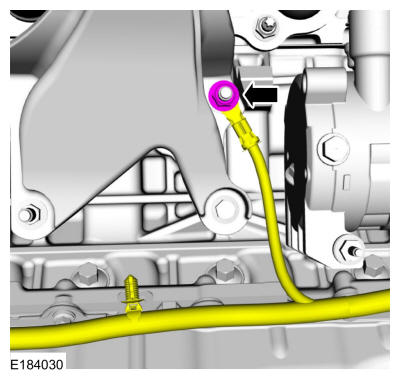

Install the ground strap and the nut.
Torque: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the oil cooler hoses and install the bolts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Starter Motor .
2. Refer to: Catalytic Converter RH .
Position the underbody shield and install the bolts.

Courtesy of FORD MOTOR COMPANY
Position the underbody shield and install the bolts.

Courtesy of FORD MOTOR COMPANY

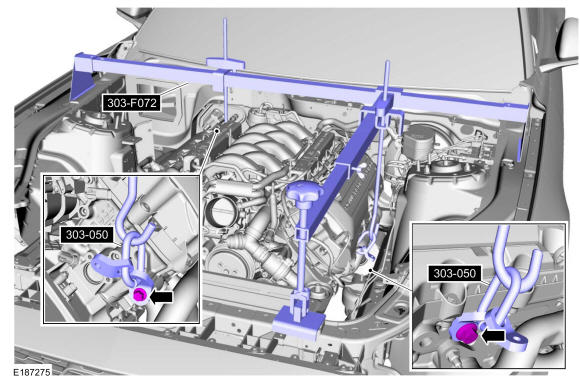

Lower the engine onto the engine mounts and remove the special tools Use Special Service Tool: 303-F072 Support Bar, Engine, 303-050 (T70P-6000) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY
Install the RH engine mount nut.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH engine mount nut.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
- Install the CMP sensor and the bolt.
  Torque: 89 lb.in (10 Nm)
- Connect the CMP sensor and the HO2S electrical connectors, then attach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
Install the battery heat shield and fasteners.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the cowl extension and the fasteners.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Air Conditioning (A/C) Compressor Belt .
2. Refer to: Battery Tray .
3. Refer to: Cowl Panel Grille .
1. Install the strut tower cross brace and nuts.
  Torque: 41 lb.ft (55 Nm)
2. Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY
Connect the positive and battery ground cables. Refer to: Battery Disconnect and Connect .
Inspect and adjust the engine oil level.
Material: Castrol® EDGE® Supercar 5W-50 (WSS-M2C931-C)
