Exhaust Manifold LH: Installation

WARNING: This page is about a different variant/trim than selected.

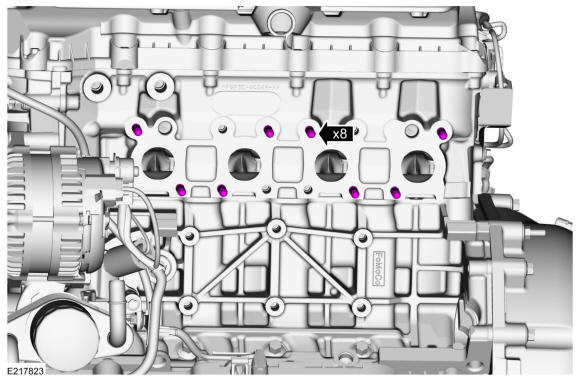

  1. Install new studs.

    Torque: 18 lb.ft (25 Nm)

    GFD286391Courtesy of FORD MOTOR COMPANY

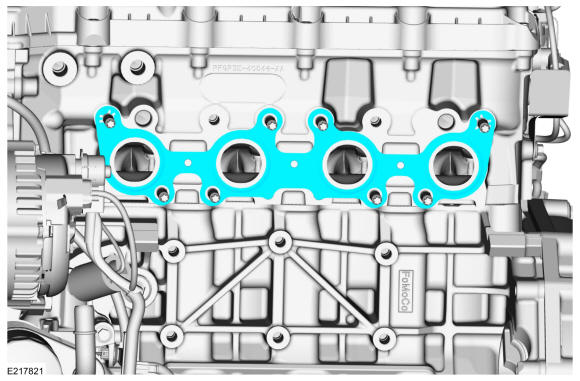

  2. Install a new gasket.
    GFD286392Courtesy of FORD MOTOR COMPANY
    1. Position the LH exhaust manifold onto the engine and finger-tighten the nuts.
    2. Tighten the nuts in the sequence shown.

      Torque: 24 lb.ft (32 Nm)

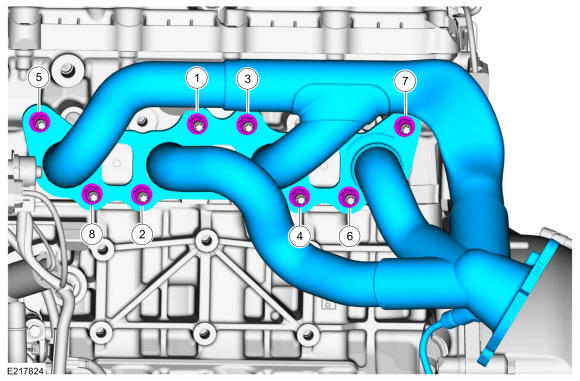

    Fig 1: LH Exhaust Manifold Tightening Sequence
    GFD286393Courtesy of FORD MOTOR COMPANY

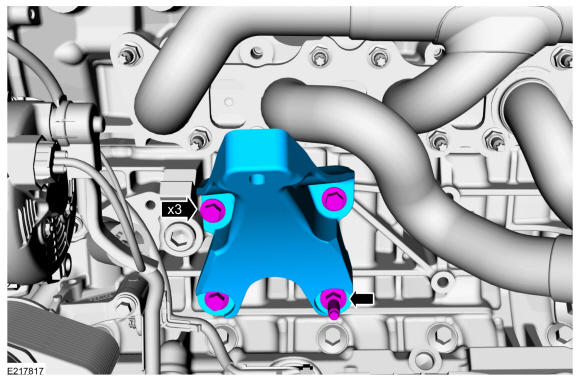

  3. Install the LH motor mount bracket and the fasteners.

    Torque: 41 lb.ft (55 Nm)

    GFD286387Courtesy of FORD MOTOR COMPANY

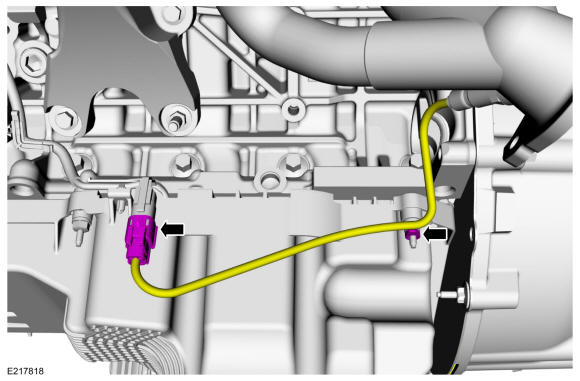

    • Connect the HO2S electrical connector.

    • Attach the wiring harness retainer.

    GFD286386Courtesy of FORD MOTOR COMPANY
  4. Lower the engine onto the engine mount and remove the special tools Use Special Service Tool: 303-F072 Support Bar, Engine, 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD286328Courtesy of FORD MOTOR COMPANY
  5. Install the RH engine mount nut.

    Torque: 46 lb.ft (63 Nm)

    GFD286374Courtesy of FORD MOTOR COMPANY
  6. Install the LH engine mount nut.

    Torque: 46 lb.ft (63 Nm)

    GFD286373Courtesy of FORD MOTOR COMPANY
  7. WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
    WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

    1. Connect the steering column shaft to the steering gear universal joint.
    2. Install the new steering column shaft bolt.

      Torque: 22 lb.ft (30 Nm)

    GFD285390Courtesy of FORD MOTOR COMPANY
  8. Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check .
  9. Connect the oil cooler hoses and install the bolts.

    Torque: 22 lb.ft (30 Nm)

    GFD286377Courtesy of FORD MOTOR COMPANY
  10. Install the LH catalytic converter. Refer to: Catalytic Converter LH .
  11. Position the underbody shield and install the bolts.
    GFD286376Courtesy of FORD MOTOR COMPANY
  12. Position the underbody shield and install the bolts.
    GFD286379Courtesy of FORD MOTOR COMPANY
    1. Install the strut tower cross brace and nuts.

      Torque: 41 lb.ft (55 Nm)

    2. Attach the wiring harness retainer.
    GFD286380Courtesy of FORD MOTOR COMPANY
  13. NOTE: The air cleaner outlet pipe and air cleaner can be installed as an assembly, they do not have to be separated.

    Install the following items:

    1. Refer to: Air Cleaner .
    2. Refer to: Air Cleaner Outlet Pipe .

  14. Remove the holding device.
    GFD285342Courtesy of FORD MOTOR COMPANY
    1. Position the steering column dash seal.
    2. Tighten the steering column dash seal nuts.

      Torque: 80 lb.in (9 Nm)

    GFD285393Courtesy of FORD MOTOR COMPANY
  15. Connect the positive and battery ground cables. Refer to: Battery Disconnect and Connect .
  16. Inspect and adjust the engine oil level.

    Material: Castrol® EDGE® Supercar 5W-50 (WSS-M2C931-C)
