Engine Mount LH: Installation

WARNING: This page is about a different variant/trim than selected.

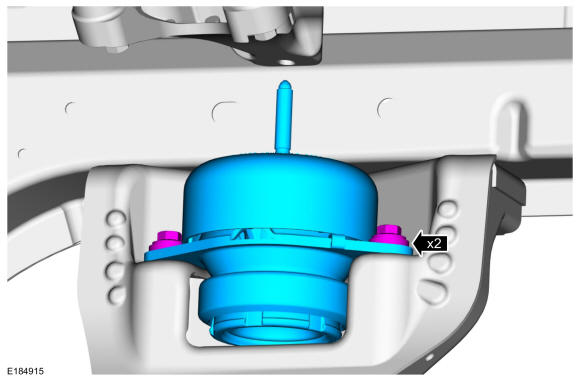

Install the engine mount and the bolts.
Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY

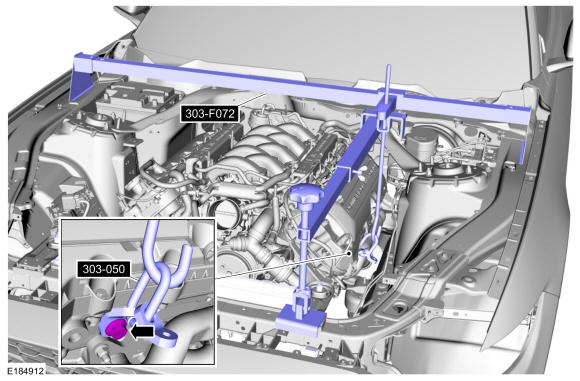

Lower the engine onto the engine mounts and remove the special tools Use Special Service Tool: 303-F072 Support Bar, Engine, 303-050 (T70P-6000) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY

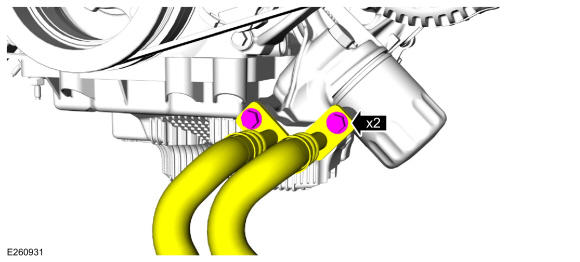

Connect the oil cooler hoses and install the bolts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

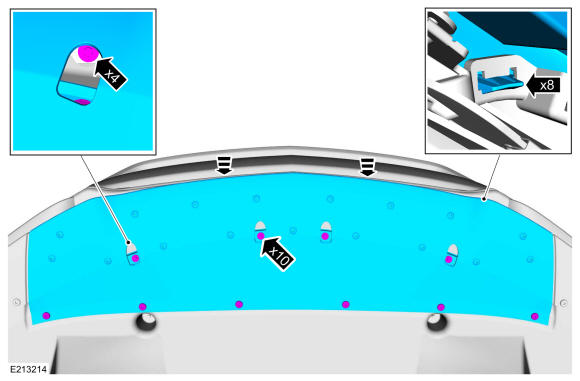

Position the underbody shield and install the bolts.

Courtesy of FORD MOTOR COMPANY

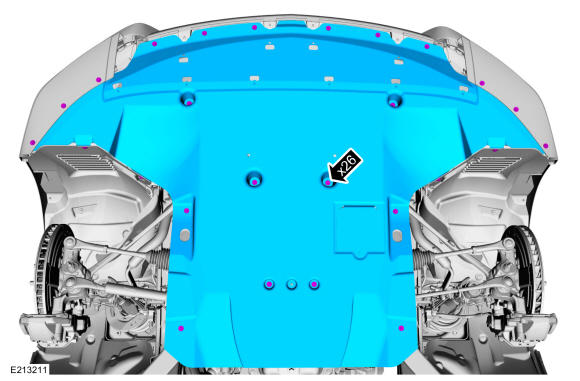

Position the underbody shield and install the bolts.

Courtesy of FORD MOTOR COMPANY

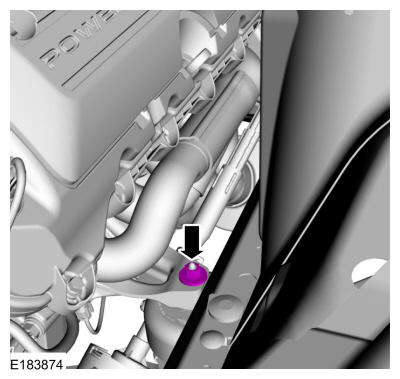

Install the RH engine mount nut.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

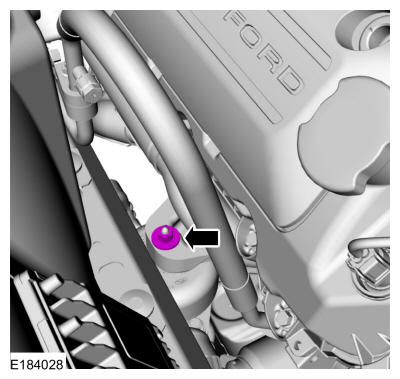

Install the LH engine mount nut.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Air Cleaner .
2. Refer to: Air Cleaner Outlet Pipe .

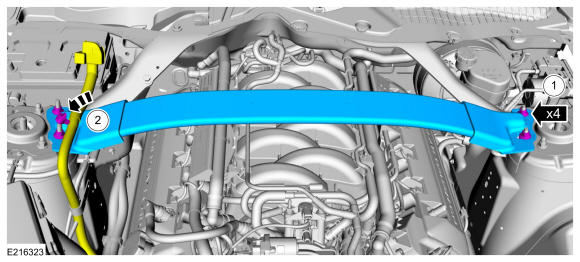

1. Install the strut tower cross brace and nuts.
  Torque: 41 lb.ft (55 Nm)
2. Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY
Connect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .
Inspect and adjust the engine oil level.
Material: Castrol® EDGE® Supercar 5W-50 (WSS-M2C931-C)
