Engine Front Cover: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .
  3. Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  4. Remove the following items:

    1. Refer to: Degas Bottle .
    2. Refer to: Air Cleaner Outlet Pipe .
    3. Refer to: Air Cleaner .
    4. Refer to: Crankshaft Front Seal .
    5. Refer to: Valve Cover RH .
    6. Refer to: Valve Cover LH .

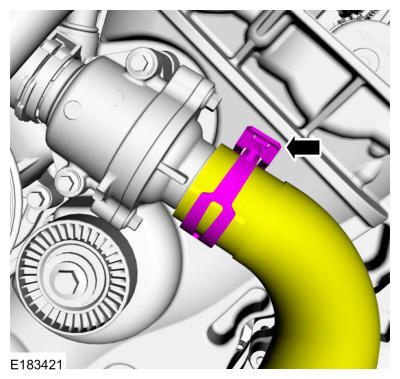

  5. Disconnect the lower radiator hose from the thermostat housing assembly.
    GFD286347Courtesy of FORD MOTOR COMPANY

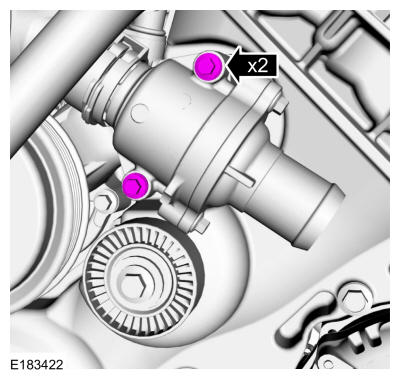

  6. Remove the thermostat housing bolts.
    GFD286348Courtesy of FORD MOTOR COMPANY

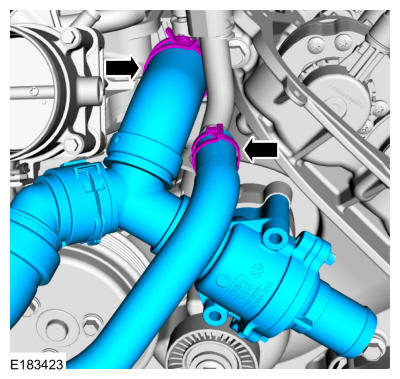

    • Release the clamp and remove the upper radiator hose T-connector/thermostat housing assembly.

    • Release the clamp and remove the degas bottle coolant hose.

    GFD286349Courtesy of FORD MOTOR COMPANY

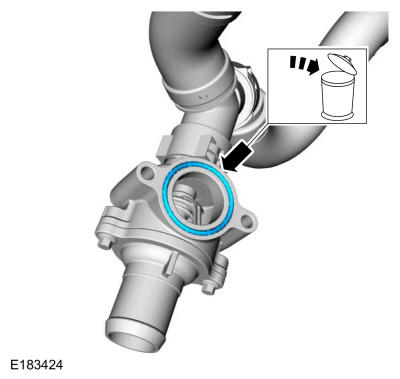

  8. Remove and discard the thermostat housing O-ring seal.
    GFD286350Courtesy of FORD MOTOR COMPANY

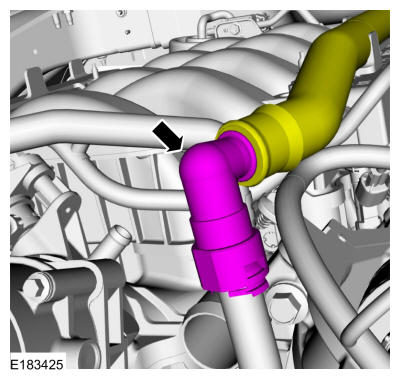

  9. Disconnect the heater hose.
    GFD286351Courtesy of FORD MOTOR COMPANY

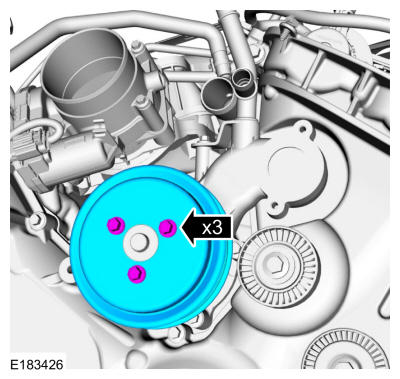

  10. Remove the bolts and the coolant pump pulley.
    GFD286352Courtesy of FORD MOTOR COMPANY

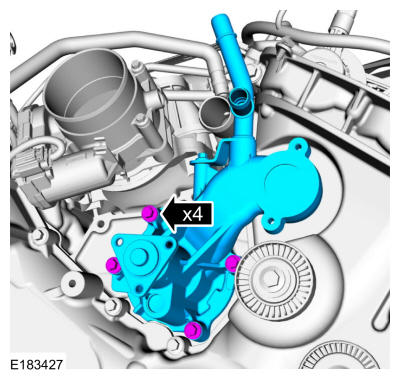

  11. Remove the bolts and the coolant pump.
    GFD286353Courtesy of FORD MOTOR COMPANY
  12. Remove and discard the coolant pump O-ring seal.
    GFD286354Courtesy of FORD MOTOR COMPANY

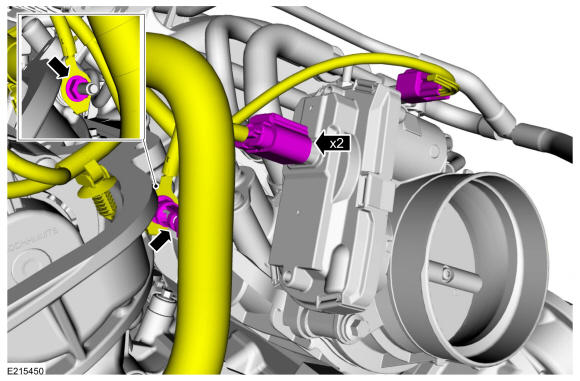

    • Disconnect the throttle body and the EVAP purge valve electrical connectors.

    • Detach the wiring harness retainer.

    • Remove the nut and ground wire.

    GFD286355Courtesy of FORD MOTOR COMPANY

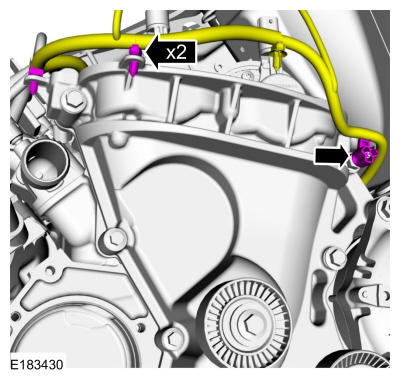

  14. Detach the wiring harness retainers from the engine front cover and stud bolt.
    GFD286356Courtesy of FORD MOTOR COMPANY

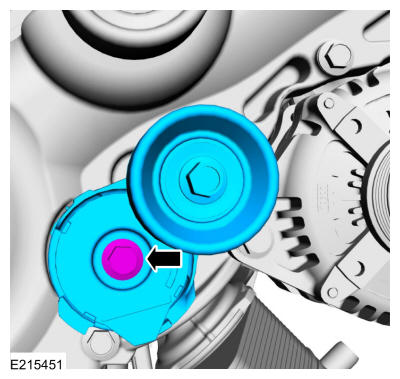

  15. Remove the bolt and the accessory drive belt tensioner.
    GFD286357Courtesy of FORD MOTOR COMPANY

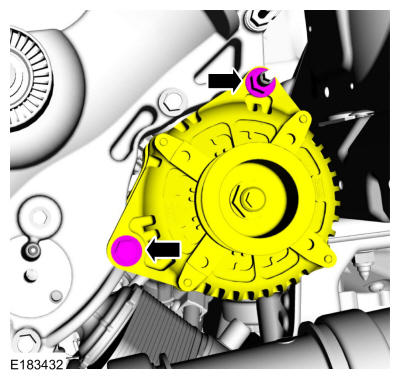

  16. Remove the fasteners and position the generator aside.
    GFD286358Courtesy of FORD MOTOR COMPANY
  17. Remove the nut and the wiring harness retainer.
    GFD286359Courtesy of FORD MOTOR COMPANY

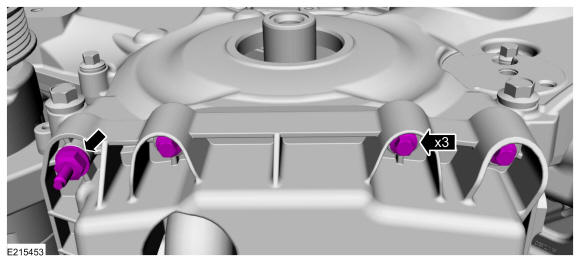

  18. Remove the bolts and stud bolt.
    GFD286360Courtesy of FORD MOTOR COMPANY

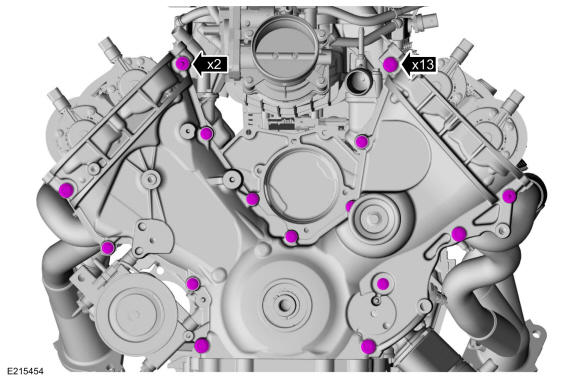

  19. Remove the bolts and stud bolts.
    GFD286361Courtesy of FORD MOTOR COMPANY

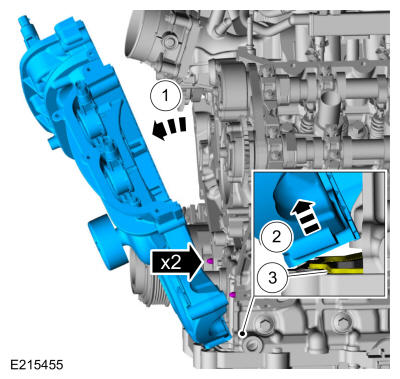

  20. NOTE: Oil filter adapter and timing drive components removed from view for clarity.

    • Rock the top of the engine front cover forward to release the cover from the 2 dowels.

    • Lift the engine front cover off of the engine.

    • Inspect the oil pan gasket for damage.

    GFD286362Courtesy of FORD MOTOR COMPANY
  21. Remove and discard the engine front cover gaskets.
    GFD286363Courtesy of FORD MOTOR COMPANY

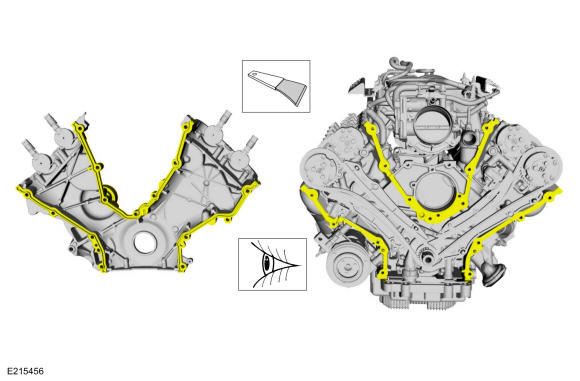

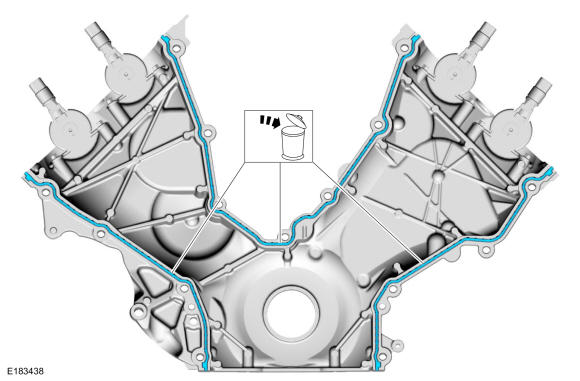

  22. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD286364Courtesy of FORD MOTOR COMPANY
