Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.

6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

NOTE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. NOTE: Make sure to minimize damage to sealer foam and avoid pulling apart dash seal brackets from retainer pins. Excessive damage may allow engine noise, fumes, air or water to enter the passenger compartment.

    1. Remove the steering column dash seal nuts.
    2. Loosen the dash seal.
    3. Hand start the dash seal nuts.

    GFD285341Courtesy of FORD MOTOR COMPANY
  3. Using a holding device, hold the steering wheel in the straight-ahead position.
    GFD285342Courtesy of FORD MOTOR COMPANY
  4. Remove the nuts and the engine appearance cover.
    GFD285343Courtesy of FORD MOTOR COMPANY
  5. Disconnect the battery ground. Refer to: Battery Disconnect and Connect .
  6. Remove the engine front cover. Refer to: Engine Front Cover .
  7. Install the special tool on the LH side of the cylinder head. Use Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD285344Courtesy of FORD MOTOR COMPANY
  8. NOTE: Coolant tube removed for clarity.

    Install the special tool on the RH side of the cylinder head. Use Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    GFD285345Courtesy of FORD MOTOR COMPANY
  9. Remove the retainers and the radiator top shield.
    GFD285346Courtesy of FORD MOTOR COMPANY
  10. Install retaining pins to support cooling module.
    GFD285347Courtesy of FORD MOTOR COMPANY
  11. Remove the RH and LH engine mount bracket nuts.
    GFD285348Courtesy of FORD MOTOR COMPANY
  12. Disconnect the vacuum tubes from the engine mount control vacuum reservoir.
    GFD285349Courtesy of FORD MOTOR COMPANY
  13. Disconnect the vacuum tube from the RH engine mount.
    GFD285350Courtesy of FORD MOTOR COMPANY
  14. NOTE: Do not position the legs of the Engine Support Bar on the fenders. Instead, position the legs on the body structure near the suspension strut tower. Failure to follow these instructions may result in body damage.

    Install the special tool to support the engine. Install Special Service Tool: 303-F072 Support Bar, Engine.

    GFD285351Courtesy of FORD MOTOR COMPANY
  15. Remove the front wheels and tires. Refer to: Wheel and Tire .
  16. Remove the screws, bolts and the underbody shield.
    GFD285352Courtesy of FORD MOTOR COMPANY

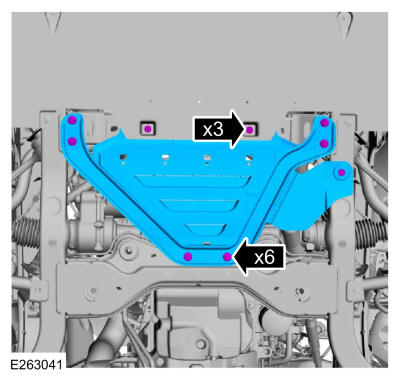

  17. Remove the pin-type retainers, bolts and the underbody shield.
    GFD285353Courtesy of FORD MOTOR COMPANY

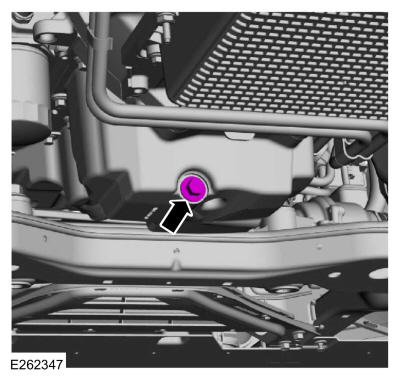

  18. Drain engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment

    Torque: 20 lb.ft (27 Nm)

    GFD285354Courtesy of FORD MOTOR COMPANY

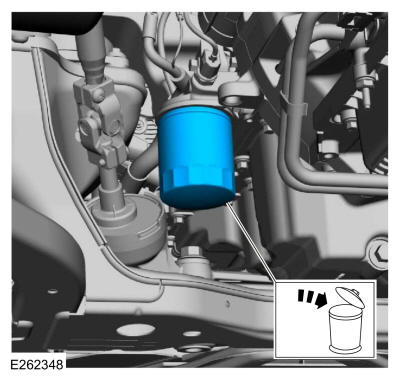

  19. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
    GFD285355Courtesy of FORD MOTOR COMPANY
  20. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
    WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

    Detach the steering column lower shaft from the lower coupling.

    1. Remove and discard the steering column shaft bolt.
    2. Pull apart the steering column shaft from the coupling.
    3. Secure the lower shaft to the frame rail to avoid damaging it during subframe removal.

    GFD285356Courtesy of FORD MOTOR COMPANY
  21. Detach the EPAS wiring harness pin-type retainers.
    GFD285357Courtesy of FORD MOTOR COMPANY
  22. Detach the brake line retainers from the subframe.
    GFD285358Courtesy of FORD MOTOR COMPANY
  23. Remove the bolts from the support bar on the front of the subframe.
    GFD285359Courtesy of FORD MOTOR COMPANY
  24. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the oil pan bolt.

    GFD285360Courtesy of FORD MOTOR COMPANY
  25. If equipped, remove the RH and LH front height sensors. Refer to: Front Suspension Height Sensor .
  26. Remove the fasteners and the RH deflector shield.
    GFD285361Courtesy of FORD MOTOR COMPANY
  27. Using an adjustable stand, support the subframe. Use the General Equipment: Vehicle/Axle Stands
    GFD285362Courtesy of FORD MOTOR COMPANY
  28. Mark the position of the front subframe for reference during installation.
    GFD285363Courtesy of FORD MOTOR COMPANY
  29. Mark the position of the rear subframe for reference during installation.
    GFD285364Courtesy of FORD MOTOR COMPANY

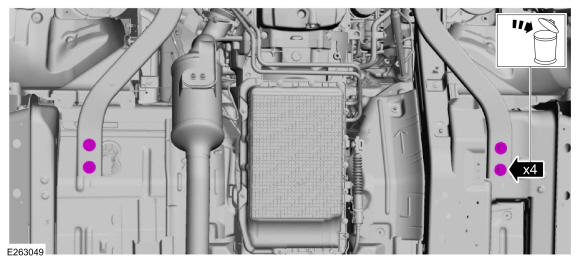

  30. Remove and discard the rear subframe bolts.
    GFD285365Courtesy of FORD MOTOR COMPANY

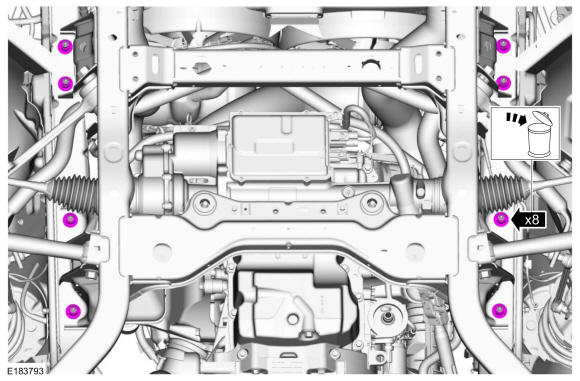

  31. Remove and discard the front subframe nuts.
    GFD285366Courtesy of FORD MOTOR COMPANY

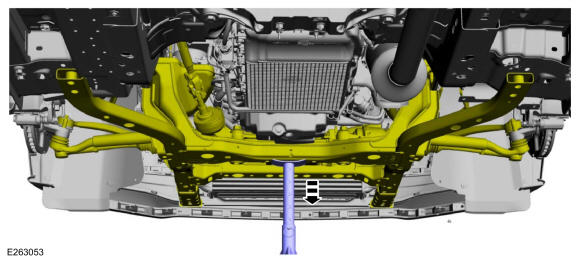

  32. Using an adjustable stand, lower the subframe 101.6 mm (4 in.). Use the General Equipment: Vehicle/Axle Stands
    GFD285367Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

  33. Remove the nut from the RH engine mount bracket stud bolt for the transmission cooling tubes.
    GFD285368Courtesy of FORD MOTOR COMPANY
  34. Remove the transmission cooling tube bracket nut and position aside.
    GFD285369Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

  35. NOTE: Automatic transmission shown, manual transmission similar.

    Remove the oil pan bolts.

    GFD285370Courtesy of FORD MOTOR COMPANY
  36. Remove the bolts and the oil pan.
    GFD285371Courtesy of FORD MOTOR COMPANY
  37. Remove the bolts and the oil pump screen and pickup tube.
    GFD285372Courtesy of FORD MOTOR COMPANY
  38. Remove and discard the oil pump screen and pickup tube gasket.
    GFD285373Courtesy of FORD MOTOR COMPANY

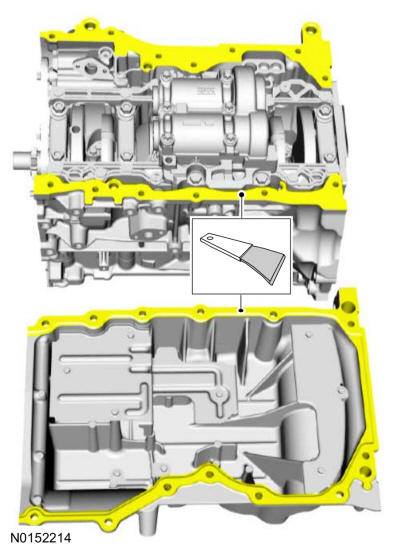

  39. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD285374Courtesy of FORD MOTOR COMPANY
    1. WARNING: Take extra care when handling the compressed spring.

      Release the tension on the tensioner spring.

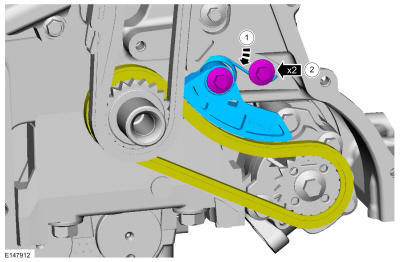

    2. Remove the shoulder bolts and the tensioner and position the chain aside.
    GFD285375Courtesy of FORD MOTOR COMPANY
  41. Remove the bolt and oil pump sprocket.
    GFD285376Courtesy of FORD MOTOR COMPANY

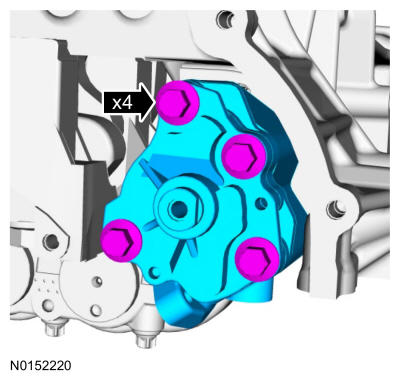

  42. Remove the bolts and the oil pump.
    GFD285377Courtesy of FORD MOTOR COMPANY
  43. Remove and discard the oil pump gasket.
    GFD285378Courtesy of FORD MOTOR COMPANY

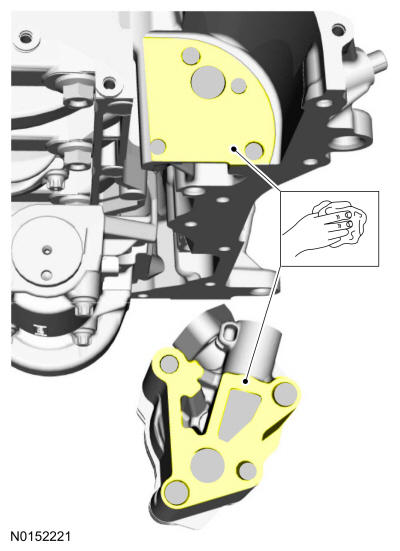

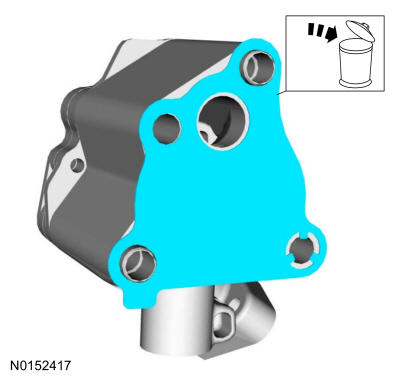

  44. Clean the mating surfaces of the oil pump.
GFD285379Courtesy of FORD MOTOR COMPANY
