Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.

6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

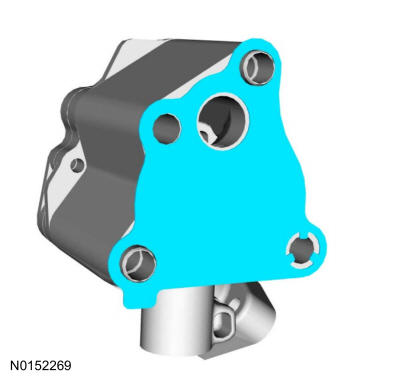

  1. Install the oil pump gasket.
    GFD285380Courtesy of FORD MOTOR COMPANY
  2. Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
  3. Install the oil pump and the bolts.

    Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 177 lb.in (20 Nm)

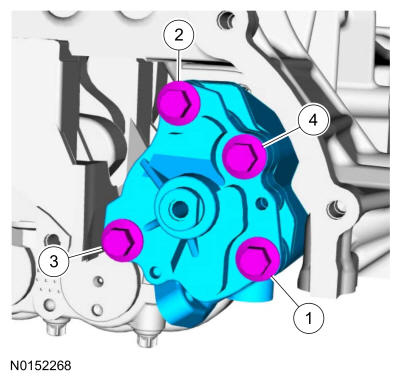

    Fig 1: Oil Pump Tightening Sequence
    GFD285381Courtesy of FORD MOTOR COMPANY

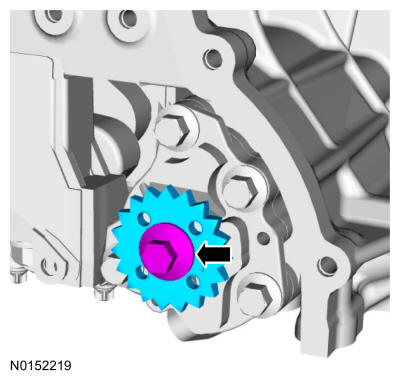

  4. Install the oil pump sprocket and bolt.

    Torque: 18 lb.ft (25 Nm)

    GFD285376Courtesy of FORD MOTOR COMPANY

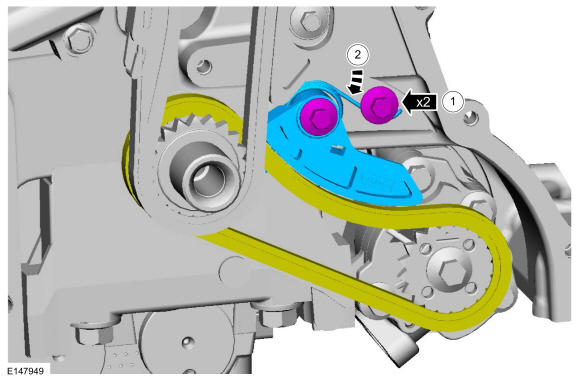

    1. WARNING: Take extra care when handling the compressed spring.

      Install the oil pump drive chain, tensioner and the shoulder bolts.

      Torque: 89 lb.in (10 Nm)

    2. Hook the tensioner spring around the shoulder bolt.
    GFD285382Courtesy of FORD MOTOR COMPANY
  5. Install the new oil pump screen and pickup tube gasket.
    GFD285383Courtesy of FORD MOTOR COMPANY

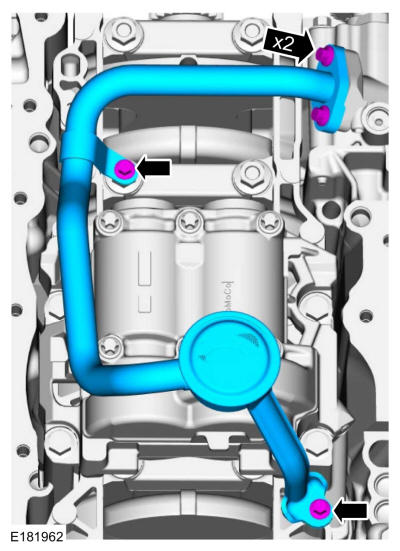

  6. Install the oil pump screen and pickup tube and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD285372Courtesy of FORD MOTOR COMPANY

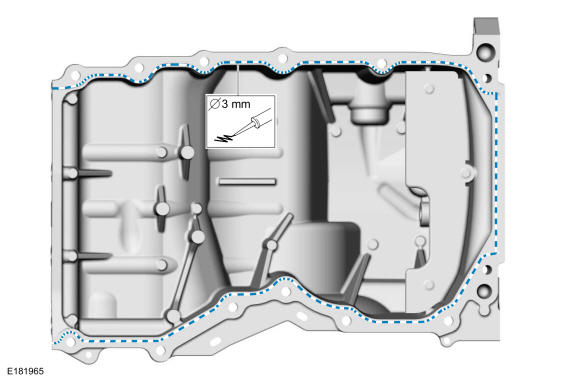

  7. NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

    Apply a 3 mm (0.19 in) bead of silicone sealant.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD285384Courtesy of FORD MOTOR COMPANY

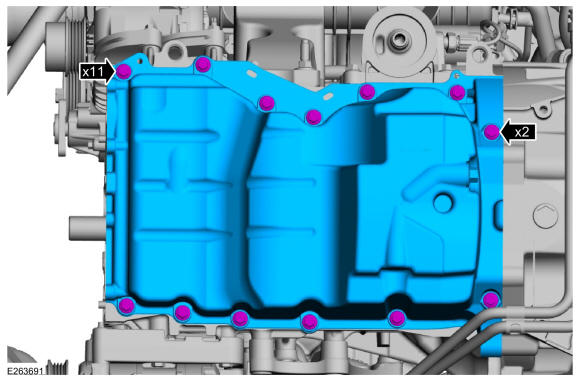

  8. Install the oil pan and the bolts finger tight.
    GFD285371Courtesy of FORD MOTOR COMPANY

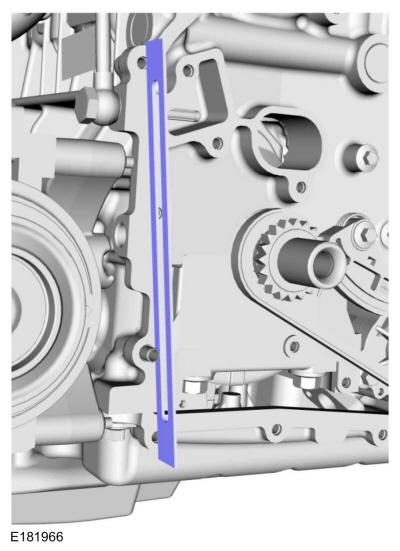

  9. Align the front surface of the oil pan flush with the front surface of the engine block. Use the General Equipment: Round-Ended Steel Rule
    GFD285385Courtesy of FORD MOTOR COMPANY

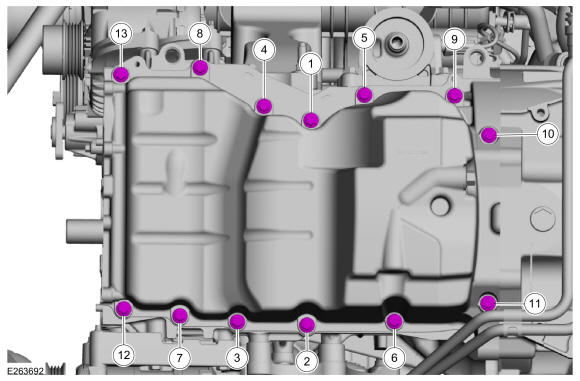

  10. Tighten the oil pan bolts in sequence shown.

    Torque: 18 lb.ft (25 Nm)

    GFD285386Courtesy of FORD MOTOR COMPANY

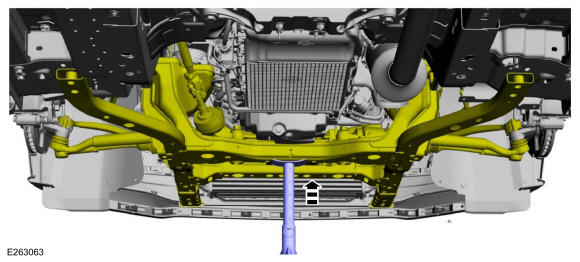

  11. Using an adjustable stand, raise the subframe. Use the General Equipment: Vehicle/Axle Stands
    GFD285387Courtesy of FORD MOTOR COMPANY

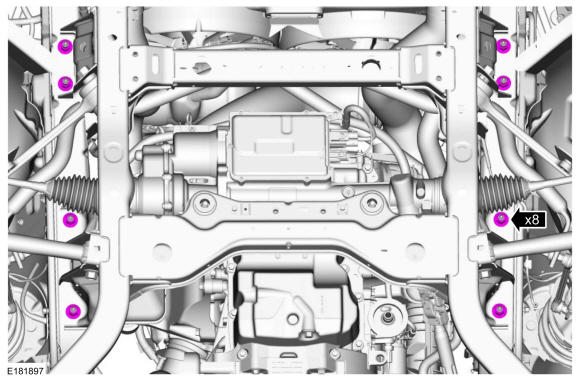

  12. Install the new front subframe nuts loosely.
    GFD285388Courtesy of FORD MOTOR COMPANY
    • Use a suitable alignment tool with a 15 mm (0.59 in) OD shaft that is long enough to go through the subframe and body.

    • Align the subframe to the alignment marks made during removal.

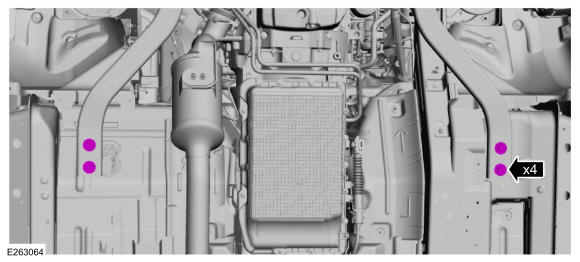

    • Install the new rear subframe bolts loosely.

    GFD285389Courtesy of FORD MOTOR COMPANY
  13. Tighten the rear subframe bolts in a cross pattern.

    Torque: 85 lb.ft (115 Nm)

    GFD285389Courtesy of FORD MOTOR COMPANY
  14. Tighten the front subframe nuts in a cross pattern.

    Torque: 85 lb.ft (115 Nm)

    GFD285388Courtesy of FORD MOTOR COMPANY

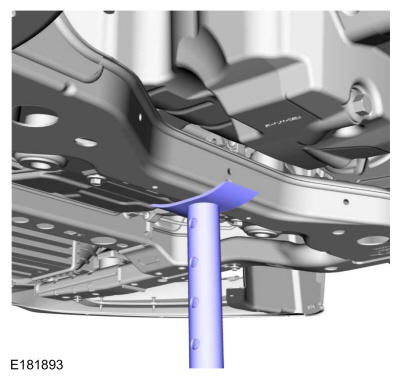

  15. Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands
    GFD285362Courtesy of FORD MOTOR COMPANY

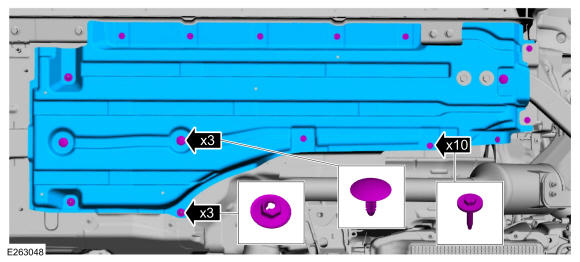

  16. Install the RH deflector shield and the fasteners.
    GFD285361Courtesy of FORD MOTOR COMPANY
  17. If equipped, install the RH and LH front height sensors. Refer to: Front Suspension Height Sensor .

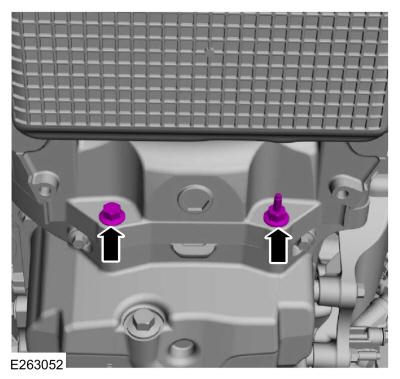

  18. NOTE: Automatic transmission shown, manual transmission similar.

    Install the oil pan bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD285370Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

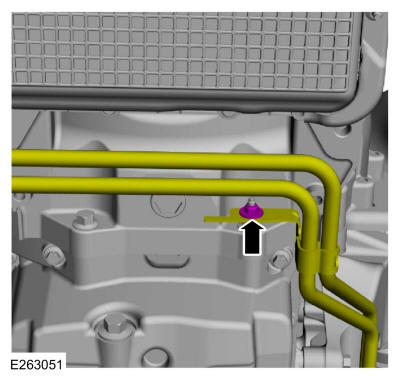

  19. Position the transmission cooling tube bracket and install the nut.

    Torque: 124 lb.in (14 Nm)

    GFD285369Courtesy of FORD MOTOR COMPANY

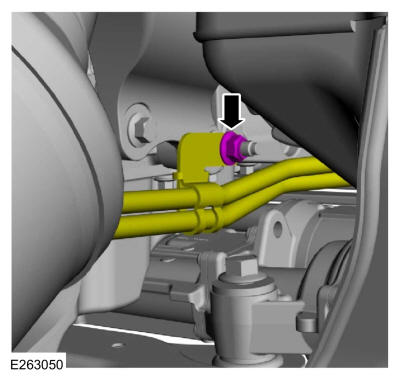

  20. Install the nut on the RH engine mount bracket stud bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD285368Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

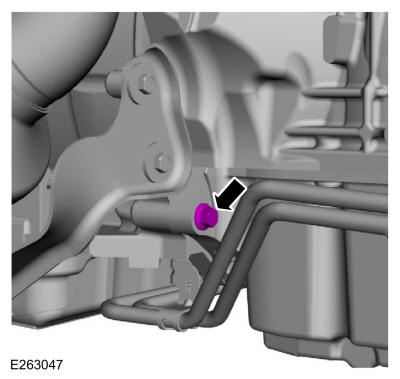

  21. NOTE: Automatic transmission shown, manual transmission similar.

    Install the oil pan bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD285360Courtesy of FORD MOTOR COMPANY

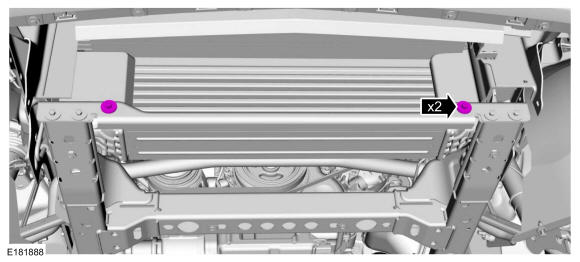

  22. Install the bolts in the support bar.

    Torque: 89 lb.in (10 Nm)

    GFD285359Courtesy of FORD MOTOR COMPANY
  23. Attach the brake line retainers to the subframe.
    GFD285358Courtesy of FORD MOTOR COMPANY

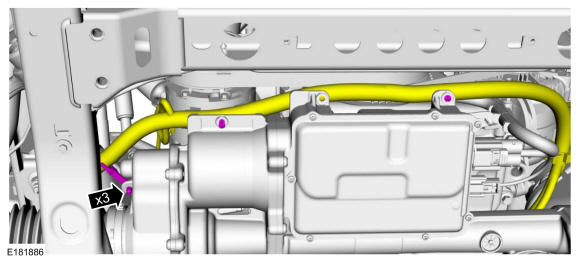

  24. Attach the EPAS wiring harness pin-type retainers.
    GFD285357Courtesy of FORD MOTOR COMPANY
  25. WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
    WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

    1. Connect the steering column shaft to the steering gear universal joint.
    2. Install the new steering column shaft bolt.

      Torque: 22 lb.ft (30 Nm)

    GFD285390Courtesy of FORD MOTOR COMPANY
  26. Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check .

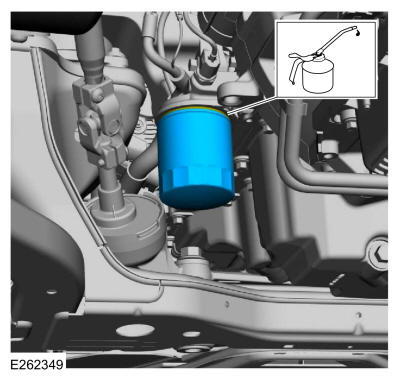

  27. NOTE: Lubricate the engine oil filter seal with clean engine oil.

    Install a new engine oil filter.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 180°

    GFD285391Courtesy of FORD MOTOR COMPANY

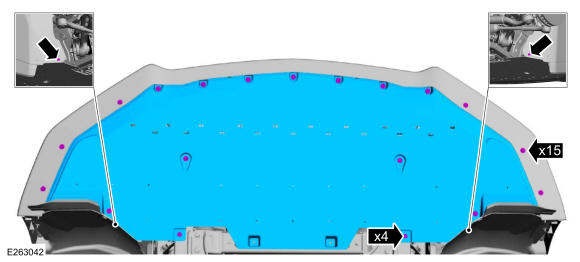

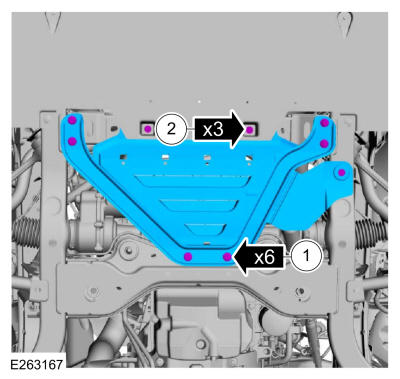

  28. Install the underbody shield, bolts and the pin-type retainers.
    GFD285353Courtesy of FORD MOTOR COMPANY
    1. Install the underbody shield and the bolts.

      Torque: 46 lb.ft (63 Nm)

    2. Install the underbody shield screws.
    GFD285392Courtesy of FORD MOTOR COMPANY
  29. Install the front wheels and tires. Refer to: Wheel and Tire .

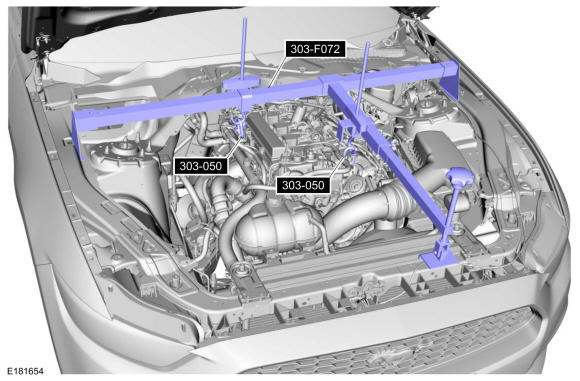

  30. Remove Special Service Tool: 303-F072 Support Bar, Engine.
    GFD285351Courtesy of FORD MOTOR COMPANY

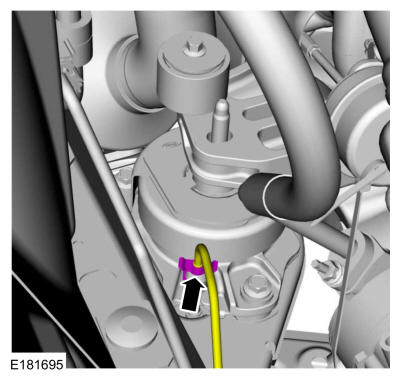

  31. Connect the vacuum tube to the RH engine mount.
    GFD285350Courtesy of FORD MOTOR COMPANY

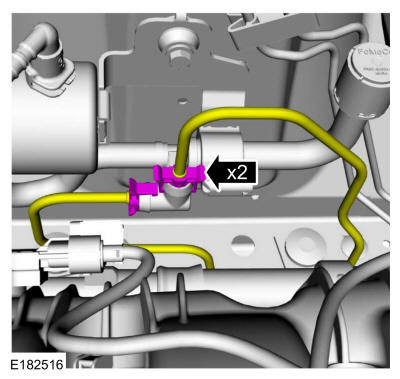

  32. Connect the vacuum tubes to the engine mount control vacuum reservoir.
    GFD285349Courtesy of FORD MOTOR COMPANY

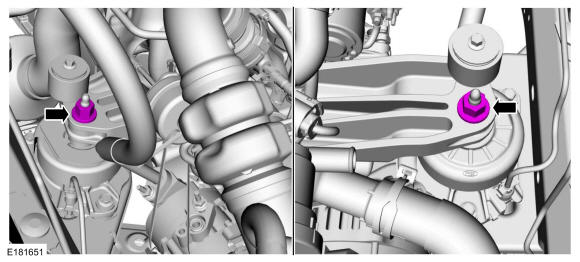

  33. Install the RH and LH engine mount bracket nuts.

    Torque: 92 lb.ft (125 Nm)

    GFD285348Courtesy of FORD MOTOR COMPANY

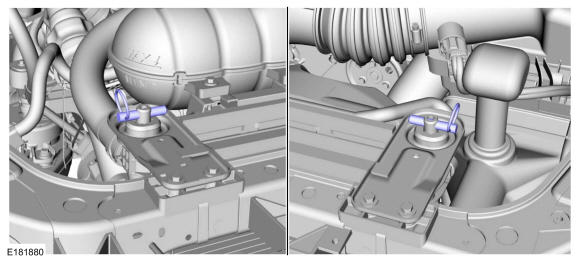

  34. Remove the retaining pins.
    GFD285347Courtesy of FORD MOTOR COMPANY

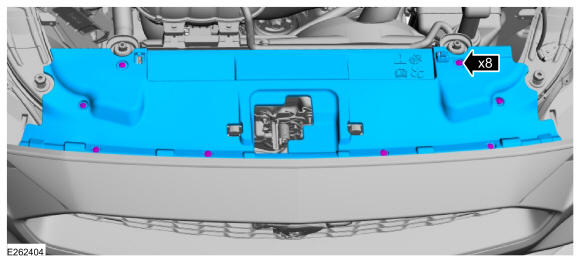

  35. Install the radiator top shield and the retainers.
    GFD285346Courtesy of FORD MOTOR COMPANY

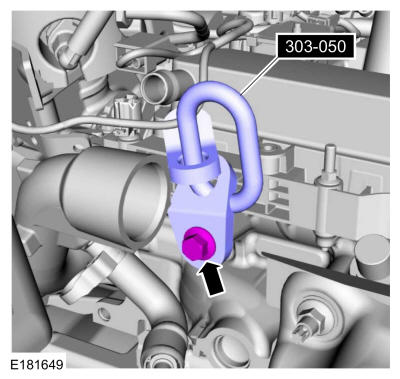

  36. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD285345Courtesy of FORD MOTOR COMPANY

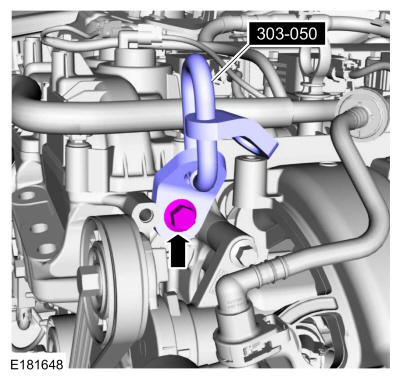

  37. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD285344Courtesy of FORD MOTOR COMPANY
  38. Install the engine front cover. Refer to: Engine Front Cover .
  39. Connect the battery ground. Refer to: Battery Disconnect and Connect .

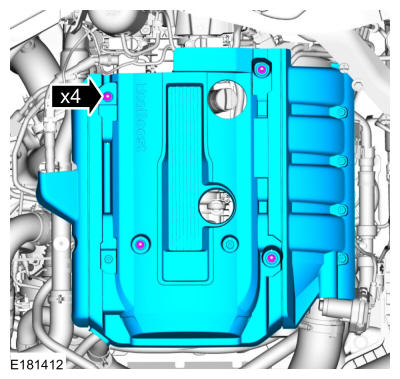

  40. Install the engine appearance cover and the nuts.

    Torque: 80 lb.in (9 Nm)

    GFD285343Courtesy of FORD MOTOR COMPANY
  41. Remove the holding device.
    GFD285342Courtesy of FORD MOTOR COMPANY
    1. Position the steering column dash seal.
    2. Tighten the steering column dash seal nuts.

      Torque: 80 lb.in (9 Nm)

    GFD285393Courtesy of FORD MOTOR COMPANY

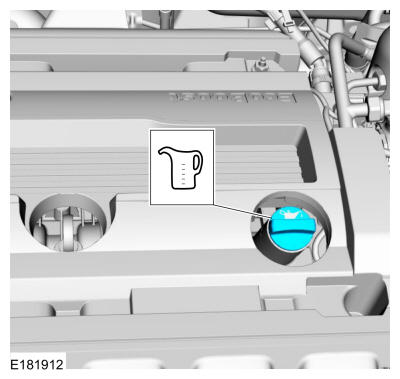

  42. Fill the engine with clean engine oil. Refer to: Specifications .
GFD285394Courtesy of FORD MOTOR COMPANY
