Oil Pan: Installation

WARNING: This page is about a different variant/trim than selected.

6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

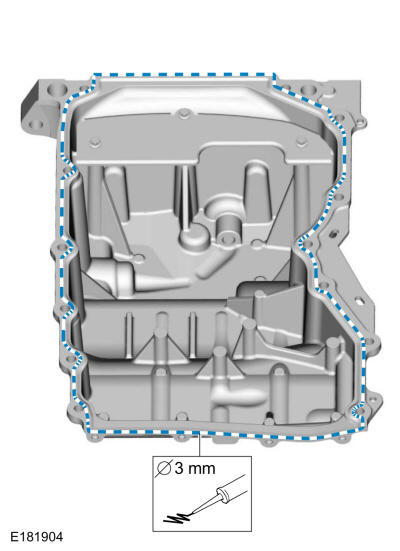

  1. NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

    Apply a 3 mm (0.19 in) bead of silicone sealant.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD285327Courtesy of FORD MOTOR COMPANY

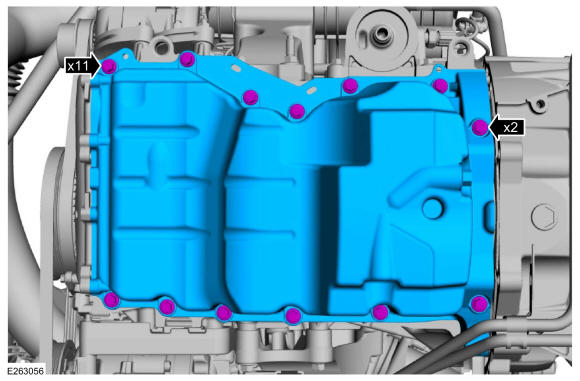

  2. Install the oil pan and the bolts finger tight.
    GFD285323Courtesy of FORD MOTOR COMPANY

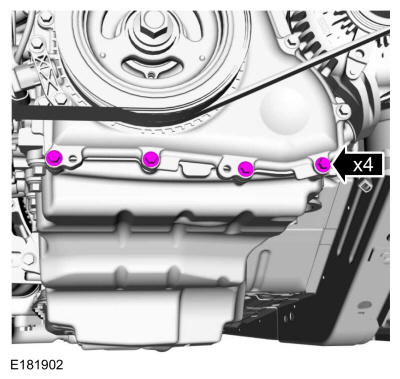

  3. NOTE: The engine front cover-to-oil pan fasteners must be tightened first to align the front surface of the oil pan flush with the front surface of the engine block.

    Install the engine front cover bolts.

    Torque: 89 lb.in (10 Nm)

    GFD285322Courtesy of FORD MOTOR COMPANY

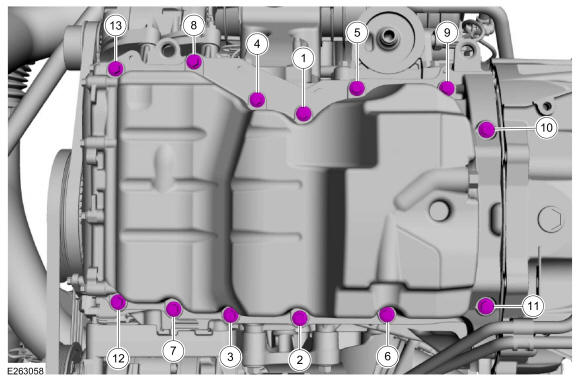

  4. Tighten the oil pan bolts in sequence shown.

    Torque: 18 lb.ft (25 Nm)

    Fig 1: Oil Pan Tightening Sequence
    GFD285328Courtesy of FORD MOTOR COMPANY

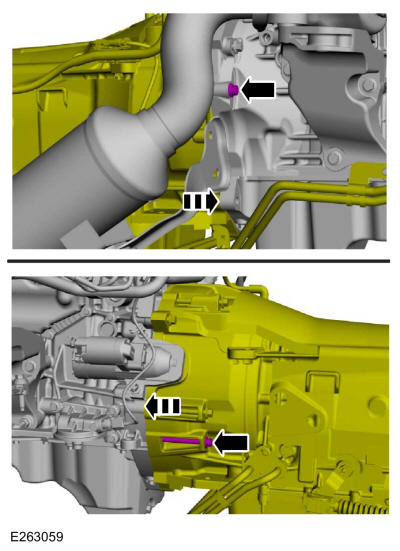

  5. NOTE: Automatic transmission shown, manual transmission similar.

    Alternate tightening the LH bellhousing-to-engine and RH engine-to-bellhousing lower bolts to draw the transmission and engine together.

    Torque: 35 lb.ft (48 Nm)

    GFD285329Courtesy of FORD MOTOR COMPANY

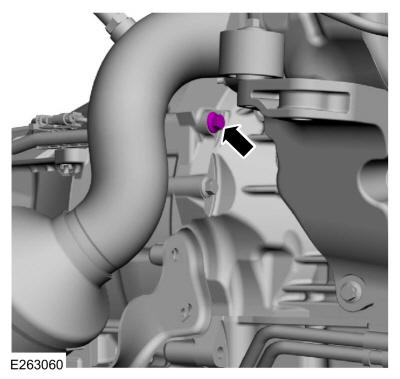

  6. NOTE: Automatic transmission shown, manual transmission similar.

    Tighten the bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD285330Courtesy of FORD MOTOR COMPANY

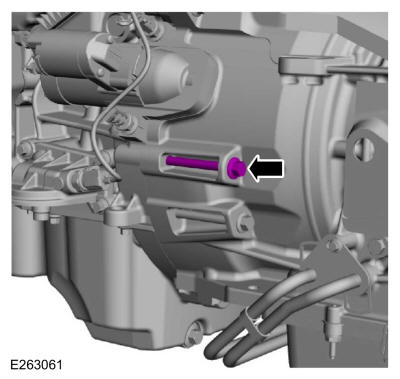

  7. NOTE: Automatic transmission shown, manual transmission similar.

    Tighten the bellhousing-to-engine bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD285331Courtesy of FORD MOTOR COMPANY

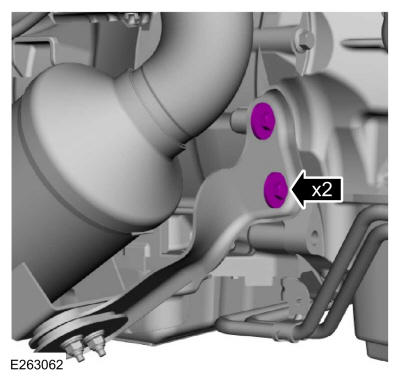

  8. NOTE: Automatic transmission shown, manual transmission similar.

    Install the bolts for the catalytic converter bracket.

    Torque: 18 lb.ft (25 Nm)

    GFD285332Courtesy of FORD MOTOR COMPANY

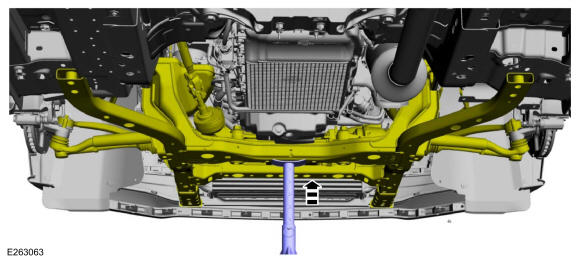

  9. Using an adjustable stand, raise the subframe. Use the General Equipment: Vehicle/Axle Stands
    GFD285333Courtesy of FORD MOTOR COMPANY

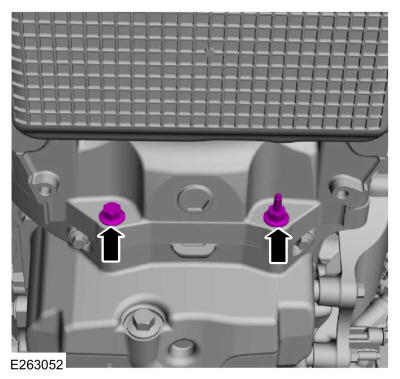

  10. NOTE: Automatic transmission shown, manual transmission similar.

    Install the oil pan bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD285318Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

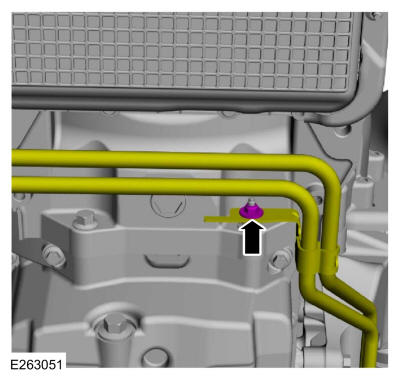

  11. Position the transmission cooling tube bracket and install the nut.

    Torque: 124 lb.in (14 Nm)

    GFD285317Courtesy of FORD MOTOR COMPANY
  12. Install the nut on the RH engine mount bracket stud bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD285275Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

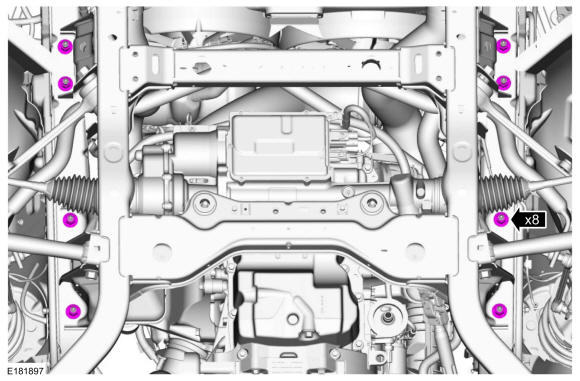

  13. Install the new front subframe nuts loosely.
    GFD285334Courtesy of FORD MOTOR COMPANY
    • Use a suitable alignment tool with a 15 mm (0.59 in) OD shaft that is long enough to go through the subframe and body.

    • Align the subframe to the alignment marks made during removal.

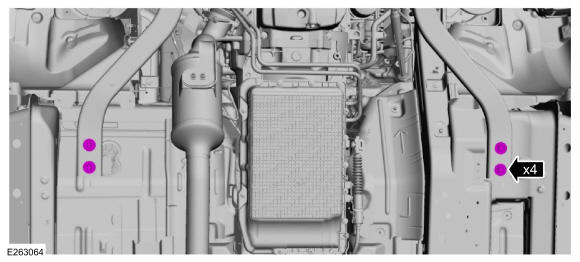

    • Install the new rear subframe bolts loosely.

    GFD285335Courtesy of FORD MOTOR COMPANY
  15. Tighten the rear subframe bolts in a cross pattern.

    Torque: 85 lb.ft (115 Nm)

    GFD285335Courtesy of FORD MOTOR COMPANY
  16. Tighten the front subframe nuts in a cross pattern.

    Torque: 85 lb.ft (115 Nm)

    GFD285334Courtesy of FORD MOTOR COMPANY

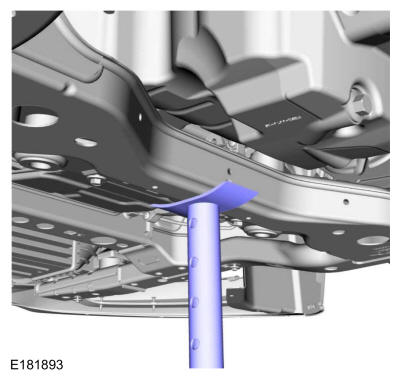

  17. Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands
    GFD285312Courtesy of FORD MOTOR COMPANY

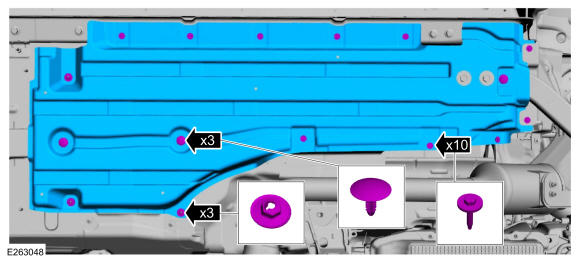

  18. Install the RH deflector shield and the fasteners.
    GFD285311Courtesy of FORD MOTOR COMPANY
  19. If equipped, install the RH and LH front height sensors. Refer to: Front Suspension Height Sensor .

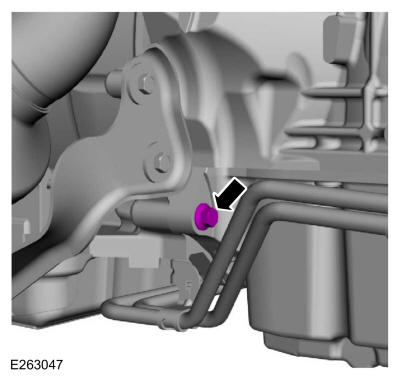

  20. NOTE: Automatic transmission shown, manual transmission similar.

    Install the oil pan bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD285310Courtesy of FORD MOTOR COMPANY

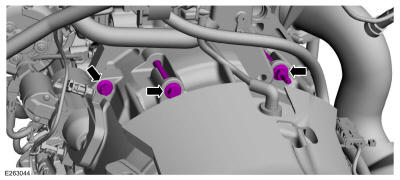

  21. NOTE: Automatic transmission shown, manual transmission similar.

    Tighten the bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD285336Courtesy of FORD MOTOR COMPANY

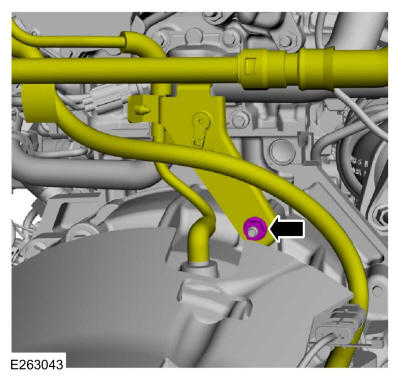

  22. NOTE: Automatic transmission shown, manual transmission similar.

    Position the coolant tube bracket and install the nut.

    Torque: 18 lb.ft (25 Nm)

    GFD285306Courtesy of FORD MOTOR COMPANY

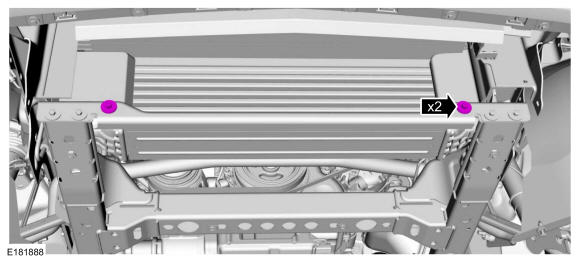

  23. Install the bolts in the support bar.

    Torque: 89 lb.in (10 Nm)

    GFD285305Courtesy of FORD MOTOR COMPANY

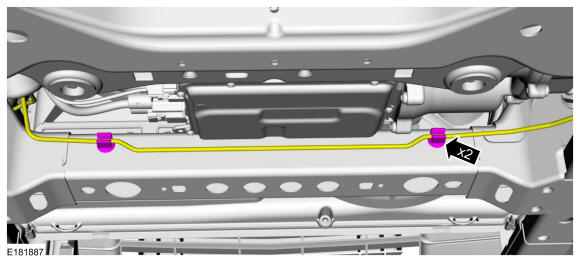

  24. Attach the brake line retainers to the subframe.
    GFD285304Courtesy of FORD MOTOR COMPANY

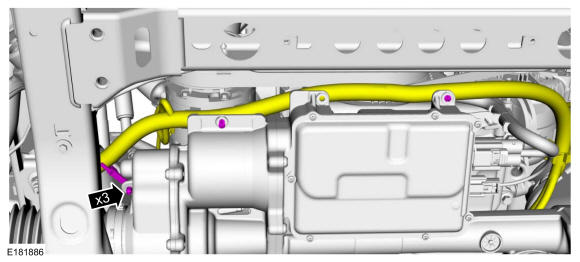

  25. Attach the EPAS wiring harness pin-type retainers.
    GFD285303Courtesy of FORD MOTOR COMPANY

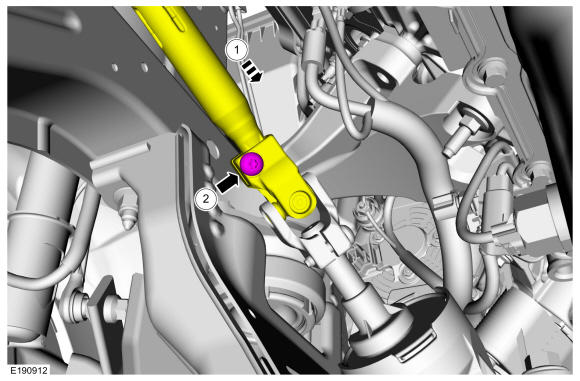

  26. WARNING: DO NOT hammer, pry or force steering column and column shafts during installation or removal. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.
    WARNING: DO NOT attempt to remove or install the steering column lower u-joint at the steering gear without first loosening the steering column dash seal and fasteners. Failure to follow this instruction may cause damage to steering components that could lead to loss of steering control during vehicle operation and could result in serious personal injury or death.

    1. Connect the steering column shaft to the steering gear universal joint.
    2. Install the new steering column shaft bolt.

      Torque: 22 lb.ft (30 Nm)

    GFD284999Courtesy of FORD MOTOR COMPANY
  27. Inspect the steering column lower shaft. Refer to: Steering Column Collapsed Check .

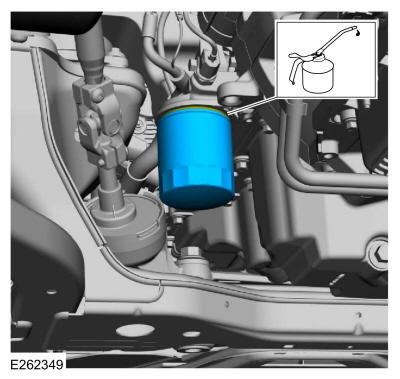

  28. NOTE: Lubricate the engine oil filter seal with clean engine oil.

    Install a new engine oil filter.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 180°

    GFD285213Courtesy of FORD MOTOR COMPANY

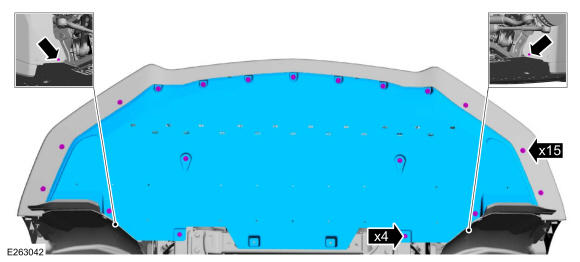

  29. Install the underbody shield, bolts and the pin-type retainers.
    GFD285302Courtesy of FORD MOTOR COMPANY
    1. Install the underbody shield and the bolts.

      Torque: 46 lb.ft (63 Nm)

    2. Install the underbody shield screws.
    GFD285271Courtesy of FORD MOTOR COMPANY
  31. Install the front wheels and tires. Refer to: Wheel and Tire .
  32. Remove Special Service Tool: 303-F072 Support Bar, Engine.
    GFD285262Courtesy of FORD MOTOR COMPANY

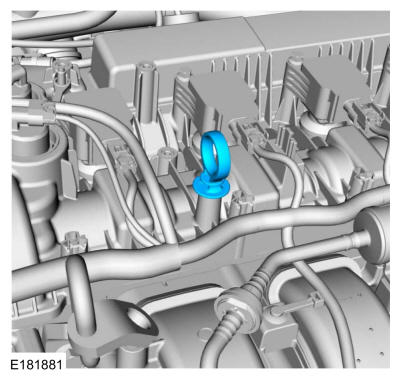

  33. Install the oil level indicator.
    GFD285301Courtesy of FORD MOTOR COMPANY
  34. Connect the vacuum tube to the RH engine mount.
    GFD285273Courtesy of FORD MOTOR COMPANY

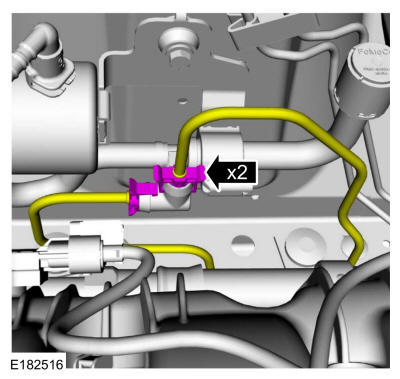

  35. Connect the vacuum tubes to the engine mount control vacuum reservoir.
    GFD285300Courtesy of FORD MOTOR COMPANY
  36. Install the RH and LH engine mount bracket nuts.

    Torque: 92 lb.ft (125 Nm)

    GFD285259Courtesy of FORD MOTOR COMPANY

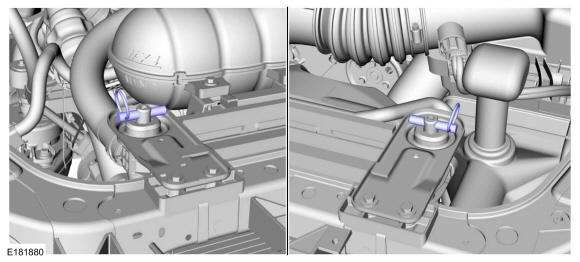

  37. Remove the retaining pins.
    GFD285299Courtesy of FORD MOTOR COMPANY
  38. Install the radiator top shield and the retainers.
    GFD285258Courtesy of FORD MOTOR COMPANY
  39. Connect the battery ground. Refer to: Battery Disconnect and Connect .
  40. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD285257Courtesy of FORD MOTOR COMPANY
  41. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD285256Courtesy of FORD MOTOR COMPANY
  42. Install the engine appearance cover and the nuts.

    Torque: 80 lb.in (9 Nm)

    GFD284928Courtesy of FORD MOTOR COMPANY
  43. Remove the holding device.
    GFD284952Courtesy of FORD MOTOR COMPANY

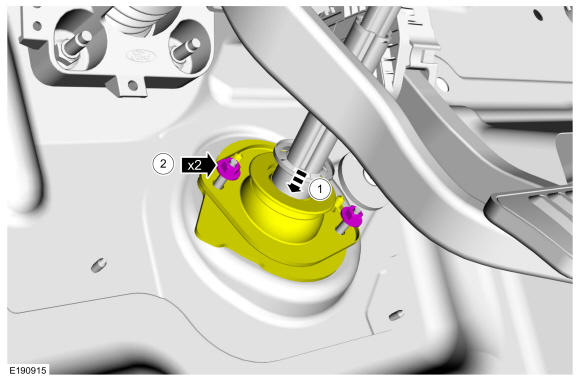

    1. Position the steering column dash seal.
    2. Tighten the steering column dash seal nuts.

      Torque: 80 lb.in (9 Nm)

    GFD285002Courtesy of FORD MOTOR COMPANY

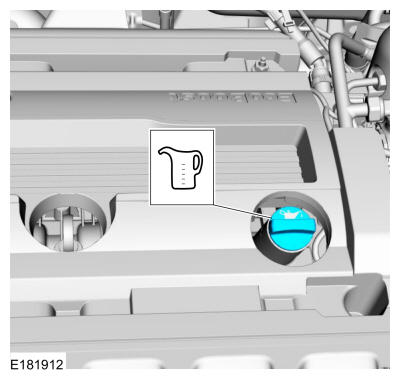

  45. Fill the engine with clean engine oil. Refer to: Specifications .
GFD285003Courtesy of FORD MOTOR COMPANY
