Engine Mount LH: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the nuts and the engine appearance cover.
- Install the special tool on the LH side of the cylinder head. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
-
NOTE: Coolant tube removed for clarity.
Install the special tool on the RH side of the cylinder head. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
- Disconnect the battery ground. Refer to: Battery Disconnect and Connect .
- Remove the retainers and the radiator top shield.
-
NOTE: Both the engine mount nuts must be removed to allow the engine to be raised.
Remove the RH and LH engine mount bracket nuts.
- Disconnect the vacuum tube from the LH engine mount.
- Remove the bolts for the engine mount.
- Install the special tool and raise the engine 26 mm (1.0 in). Use Special Service Tool: 303-F072 Support Bar, Engine.
-
NOTE: The underbody shield will need to be remove for access to the LH front engine mount bracket bolt.

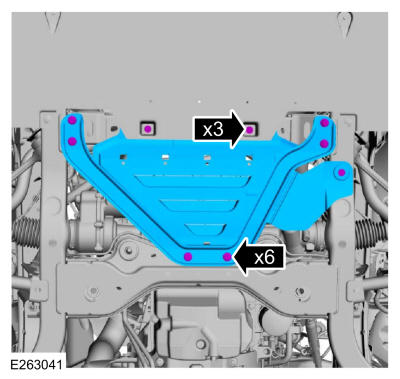

Remove the screws, bolts and the underbody shield.
- Detach the wire harness retainer from the LH engine mount bracket stud bolt.
- Remove the nut and ground wire from the LH engine mount bracket stud bolt.

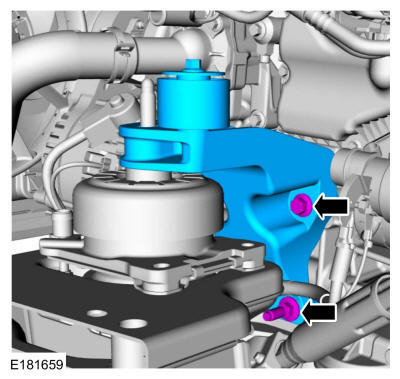

- Remove the bolts for the engine mount bracket.
- Remove the bolt, stud bolt and the engine mount bracket.
- Remove the engine mount.
