Engine Mount LH: Installation
WARNING: This page is about a different variant/trim than selected.
-
NOTE: Do not install the engine mount bolts at this time.

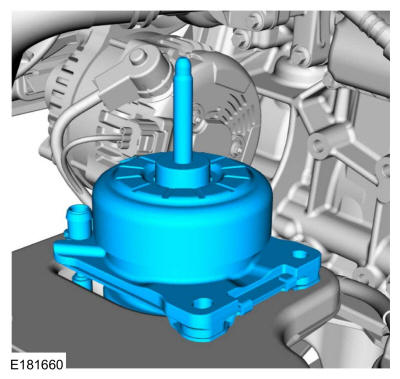

Install the engine mount.
-
NOTE: Do not install the engine mount bracket bolts at this time.

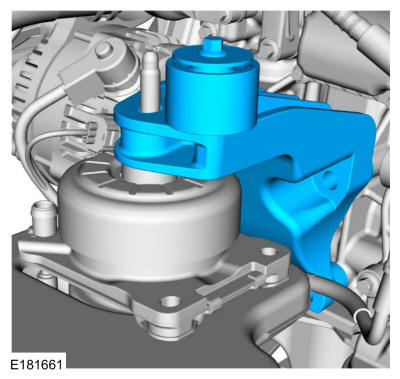

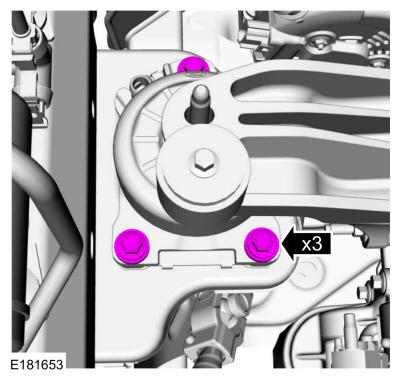

Install the engine mount bracket.

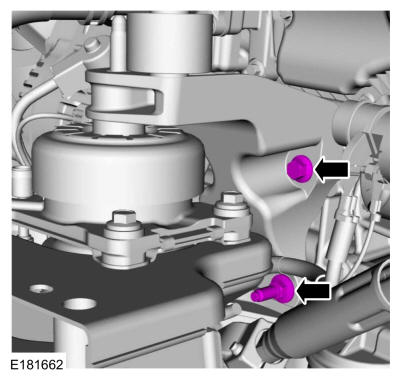

- Install the engine mount bolts.
Torque: 46 lb.ft (63 Nm)
- Install the bolt, stud bolt for the engine mount bracket finger tight.

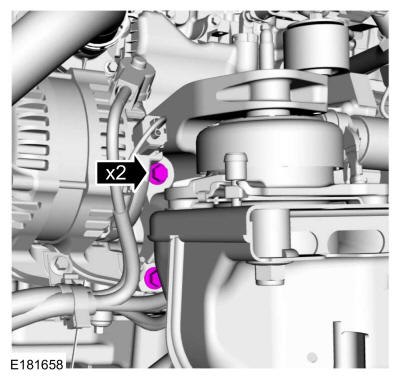

- Install the bolts for the engine mount bracket.
Torque: 46 lb.ft (63 Nm)
- Tighten the bolt, stud bolt for the engine mount bracket.
Torque: 46 lb.ft (63 Nm)

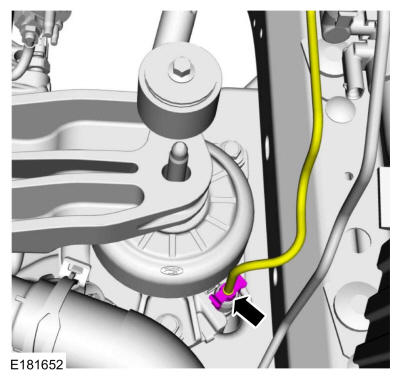

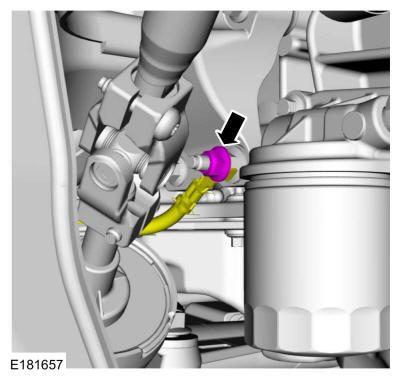

- Install the ground wire and nut to the LH engine mount bracket stud bolt.
Torque: 35 lb.ft (48 Nm)

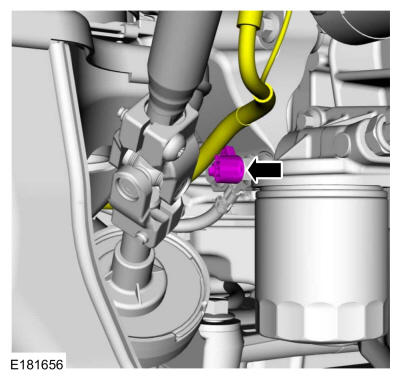

- Attach the wire harness retainer to the LH engine mount bracket stud bolt.
-

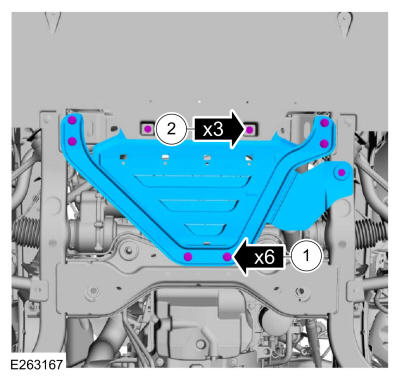

- Install the underbody shield and the bolts.
Torque: 46 lb.ft (63 Nm)
- Install the underbody shield screws.
- Install the underbody shield and the bolts.

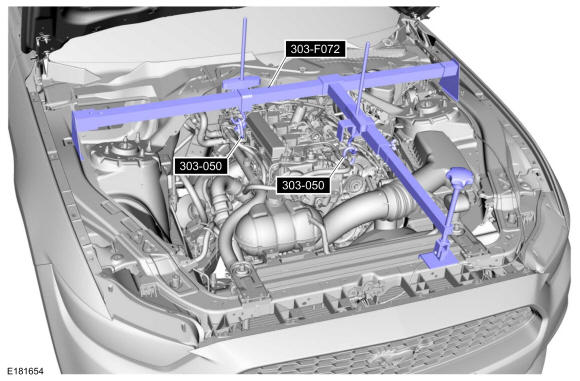

- Lower the engine 26 mm (1.0 in) and remove the special tool. Remove Special Service Tool: 303-F072 Support Bar, Engine.
- Connect the vacuum tube to the LH engine mount.

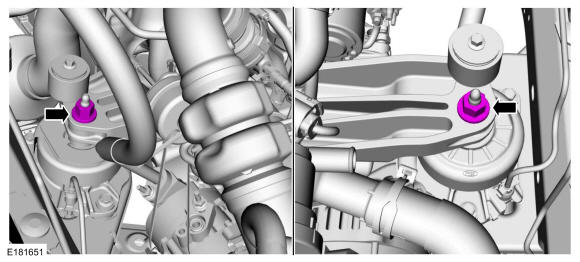

- Install the RH and LH engine mount bracket nuts.
Torque: 92 lb.ft (125 Nm)

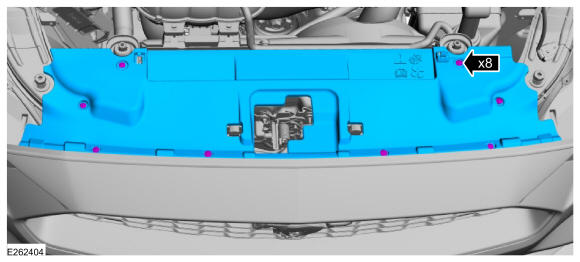

- Install the radiator top shield and the retainers.
- Connect the battery ground. Refer to: Battery Disconnect and Connect .

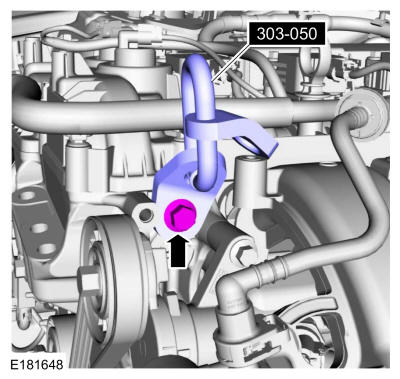

- Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

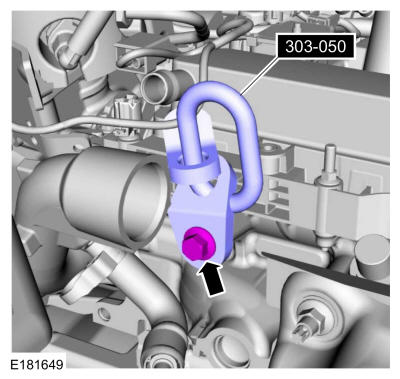

- Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

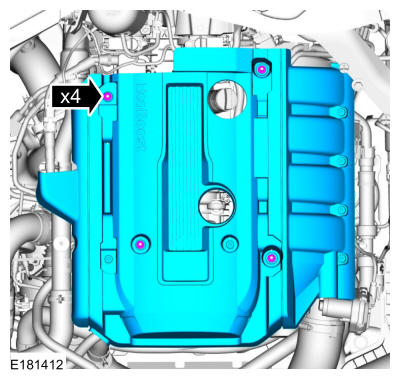

- Install the engine appearance cover and the nuts.
Torque: 80 lb.in (9 Nm)
