Cylinder Head: Installation

WARNING: This page is about a different variant/trim than selected.

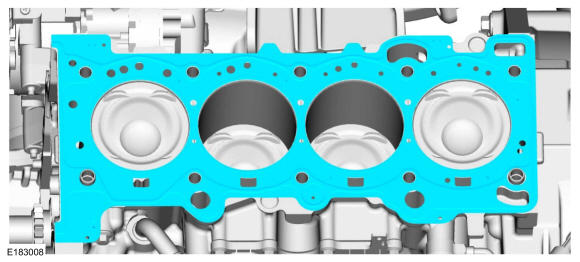

Install the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

Install the cylinder head and the new bolts.

Torque: Stage 1: 62 lb.in (7 Nm) Stage 2: 133 lb.in (15 Nm) Stage 3: 41 lb.ft (55 Nm) Stage 4: 90° Stage 5: 90°

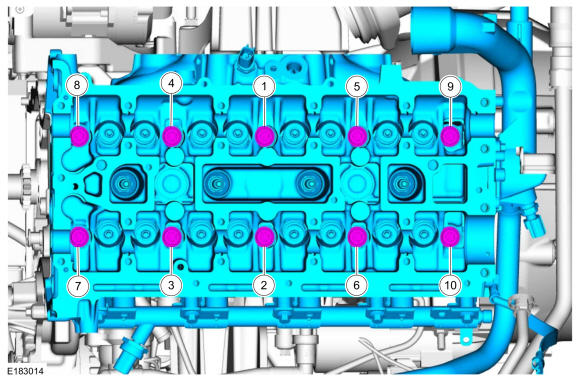

Fig 1: Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Connect the heater hose to the coolant outlet. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Install the ground wire and the bolt.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Lubricate the coolant tube O-ring seal with clean engine coolant.

Courtesy of FORD MOTOR COMPANY

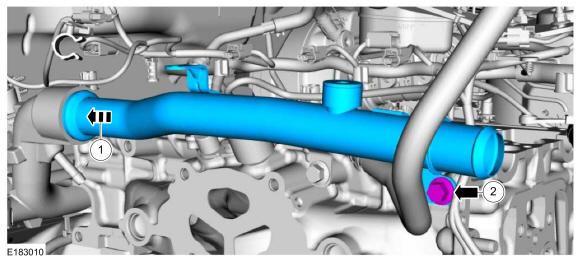

1. NOTE: The coolant tube must be fully seated prior to tighten the bolt.

  Install the coolant tube and the bolt.

  Torque: 97 lb.in (11 Nm)
2. Install the coolant tube retainer bolt.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY
Connect the CHT sensor electrical connector and slide the insulator down.

Courtesy of FORD MOTOR COMPANY

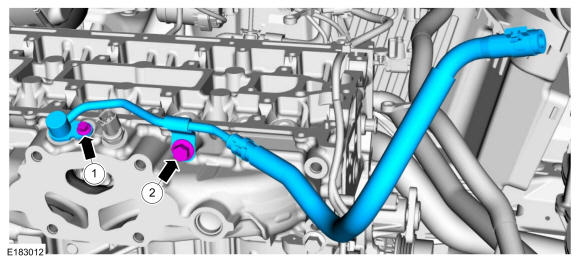

Lubricate the new coolant tube O-ring seal with clean engine coolant.

Courtesy of FORD MOTOR COMPANY
1. Install the coolant tube coolant outlet.
2. Install the bolt.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
- Connect the coolant by-pass hose to the degas bottle. Use the General Equipment: Hose Clamp Remover/Installer
- Connect the upper radiator hose to the coolant outlet tube. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY
- Install the crankcase vent tube and retainer.
- Connect the crankcase vent tube sensor electrical connector and wire harness retainer.
Courtesy of FORD MOTOR COMPANY
Connect the ECT sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Connect the fuel injector and the FRP sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY
Position and connect the coolant tube. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
- Install the fuel rail insulator shield.
- Attach the wiring harness retainers.
- Connect and attach the fuel rail electrical connector.
Courtesy of FORD MOTOR COMPANY

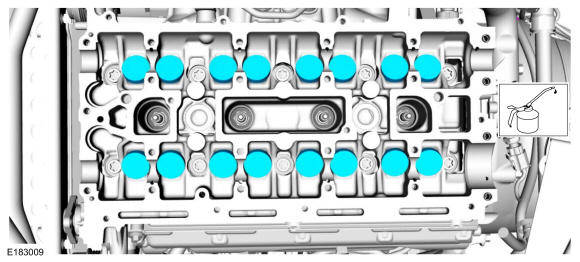

NOTE: Lubricate the valve tappets with clean engine oil.

Install the valve tappets in their original position.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the camshafts. Refer to: Camshafts .
2. Install the intake manifold. Refer to: Intake Manifold .
3. Install the turbocharger. Refer to: Turbocharger .
Drain engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment
Torque: 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY
Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the engine oil filter seal with clean engine oil.

Install a new engine oil filter.

Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 180°

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Connect the battery ground. Refer to: Battery Disconnect and Connect .
Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Install the engine appearance cover and the nuts.
Torque: 80 lb.in (9 Nm)
