Section 10 (Engine - 2.3L ECOBOOST (231KW/314PS)): Installation: Engine

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

GFD285428Courtesy of FORD MOTOR COMPANY
 300-OTC1819E 2, 200# Floor Crane, Fold Away
GFD285429Courtesy of FORD MOTOR COMPANY
 303-050 (T70P-6000) Lifting Bracket, Engine
Magnetic Socket
Trolley Jack
Hose Clamp Remover/Installer
Wooden Block

Materials

Name Specification
Motorcraft® Multi-Purpose Grease Spray XL-5-A ESB-M1C93-B

10-Speed Automatic Transmission - 10R80

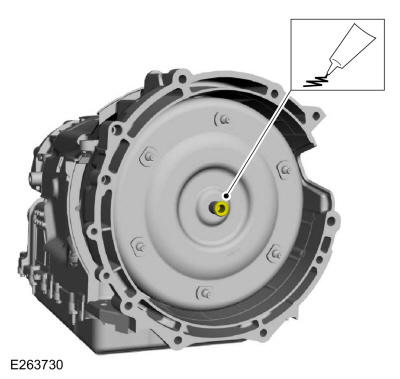

  1. Lubricate the torque converter pilot hub with multi-purpose grease.

    Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD285753Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82

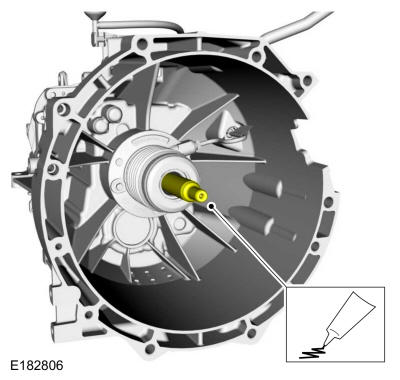

  2. Lubricate the input shaft with multi-purpose grease.

    Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD285754Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

  3. Using the special tool, install the engine. Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.
    GFD285479Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

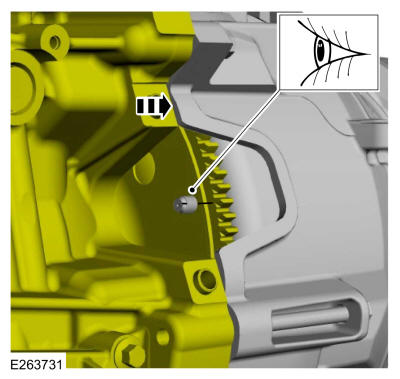

  4. Align the torque converter stud marked during removal with the flexplate.
    GFD285755Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

  5. NOTE: Automatic transmission shown, manual transmission similar.

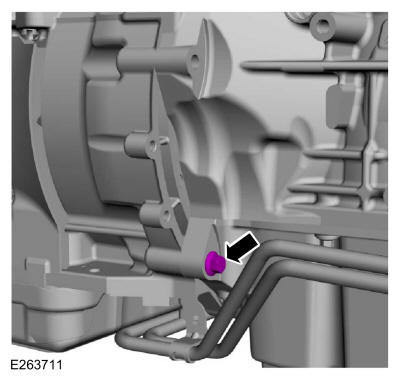

    Install the oil pan bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD285481Courtesy of FORD MOTOR COMPANY

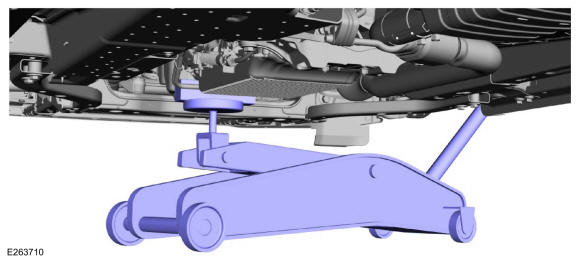

  6. Remove the jack and wooden block. Use the General Equipment: Wooden Block. Use the General Equipment: Trolley Jack
    GFD285480Courtesy of FORD MOTOR COMPANY
  7. Remove Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.
    GFD285479Courtesy of FORD MOTOR COMPANY
  8. NOTE: Automatic transmission shown, manual transmission similar.

    Install the transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD285470Courtesy of FORD MOTOR COMPANY

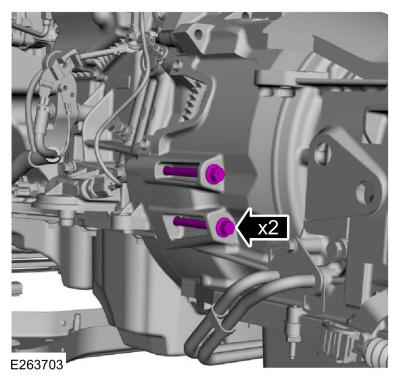

  9. NOTE: Automatic transmission shown, manual transmission similar.

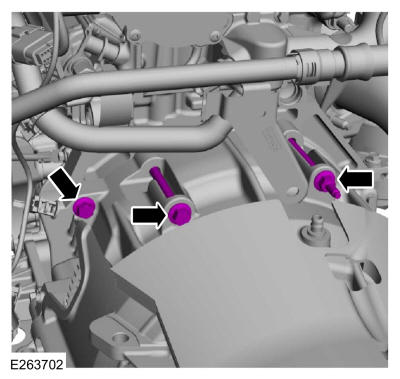

    Install the transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD285469Courtesy of FORD MOTOR COMPANY

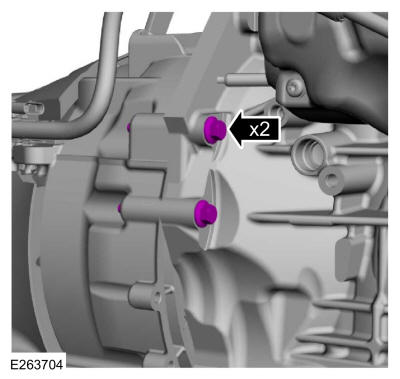

  10. NOTE: Automatic transmission shown, manual transmission similar.

    Install the transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD285468Courtesy of FORD MOTOR COMPANY
  11. NOTE: Automatic transmission shown, manual transmission similar.

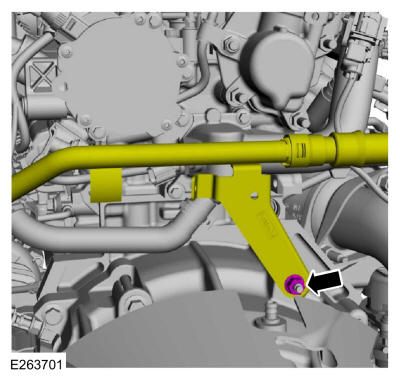

    Position the coolant tube bracket and install the nut.

    Torque: 18 lb.ft (25 Nm)

    GFD285467Courtesy of FORD MOTOR COMPANY
  12. NOTE: Automatic transmission shown, manual transmission similar.

    Install the oil pan bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD285475Courtesy of FORD MOTOR COMPANY

    10-Speed Automatic Transmission - 10R80

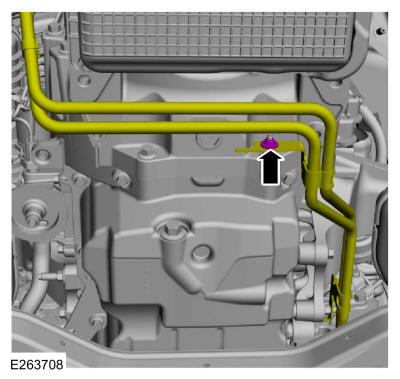

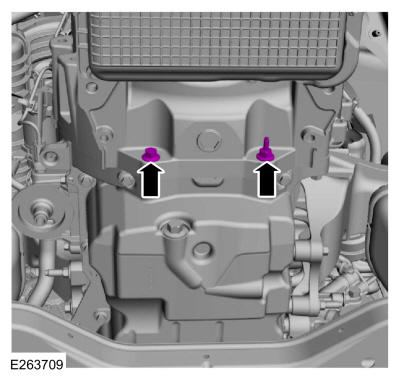

  13. Install the transmission cooling tube bracket and nut.
    GFD285474Courtesy of FORD MOTOR COMPANY

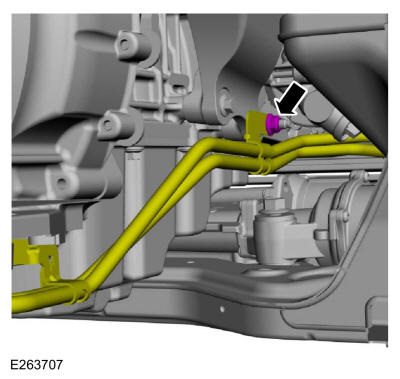

  14. Position the automatic transmission tube bracket and install the nut.

    Torque: 35 lb.ft (48 Nm)

    GFD285473Courtesy of FORD MOTOR COMPANY
  15. NOTE: Only rotate the crankshaft in a clockwise direction.

    Install the new torque convertor nuts. Use the General Equipment: Magnetic Socket

    Torque: 30 lb.ft (40 Nm)

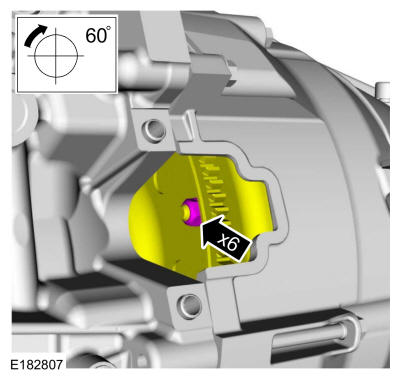

    GFD285756Courtesy of FORD MOTOR COMPANY

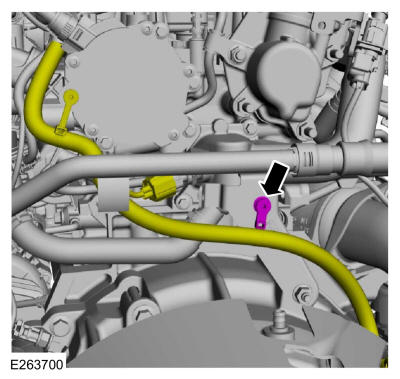

  16. Attach the transmission wiring harness retainer to the coolant tube bracket.
    GFD285466Courtesy of FORD MOTOR COMPANY

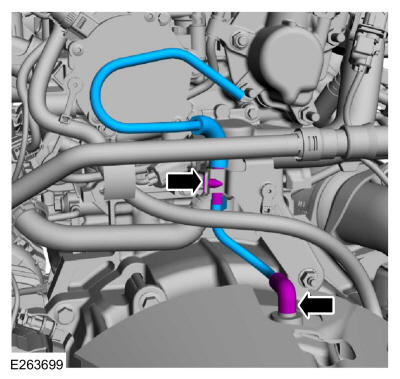

  17. Attach the transmission vent hose and retainer.
    GFD285465Courtesy of FORD MOTOR COMPANY

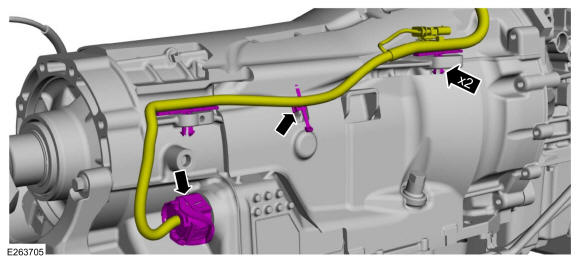

    • Attach the wiring harness retainers.

    • Connect the transmission electrical connector.

    GFD285471Courtesy of FORD MOTOR COMPANY

    6-Speed Manual Transmission - MT82/10-Speed Automatic Transmission - 10R80

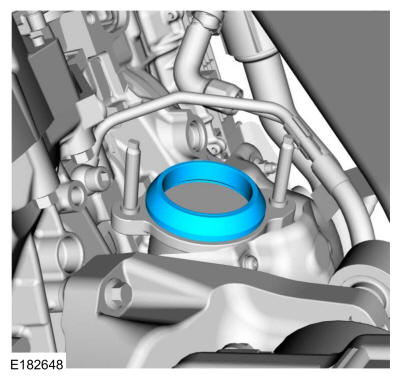

  19. Install a new gasket.
    GFD285757Courtesy of FORD MOTOR COMPANY

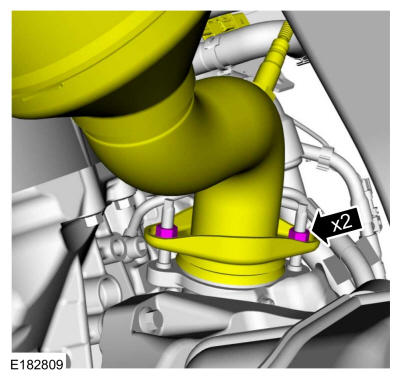

  20. Position the catalytic converter and install the new nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD285758Courtesy of FORD MOTOR COMPANY
  21. NOTE: Automatic transmission shown, manual transmission similar.

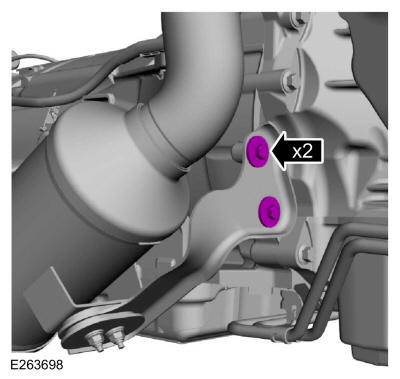

    Install the bolts for the catalytic converter bracket.

    Torque: 18 lb.ft (25 Nm)

    GFD285462Courtesy of FORD MOTOR COMPANY
  22. NOTE: Automatic transmission shown, manual transmission similar.

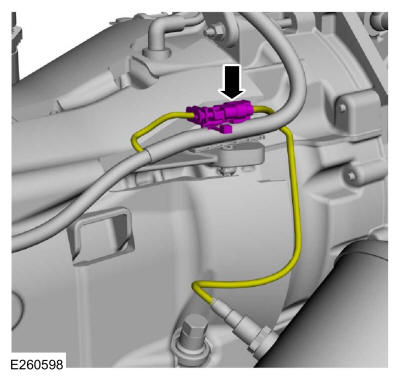

    Connect the catalyst monitor sensor (CMS) sensor electrical connector.

    GFD285461Courtesy of FORD MOTOR COMPANY

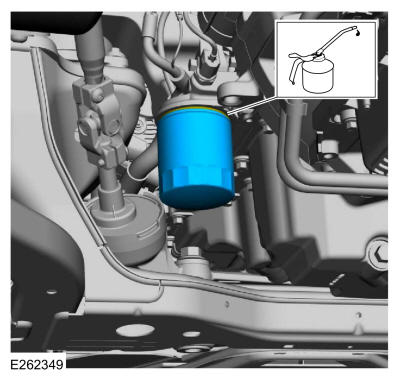

  23. NOTE: Lubricate the engine oil filter seal with clean engine oil.

    Install a new engine oil filter.

    Torque: Stage 1: 71 lb.in (8 Nm) Stage 2: 180°

    GFD285759Courtesy of FORD MOTOR COMPANY

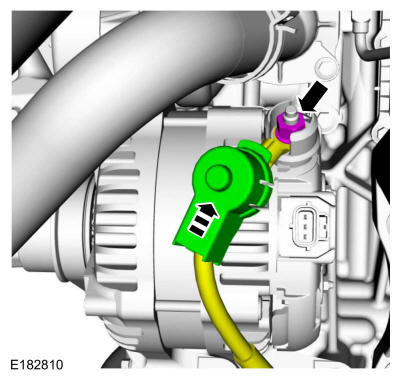

    • Install the B+ cable and the nut.

      Torque: 150 lb.in (17 Nm)

    • Position the protective cover.

    GFD285760Courtesy of FORD MOTOR COMPANY

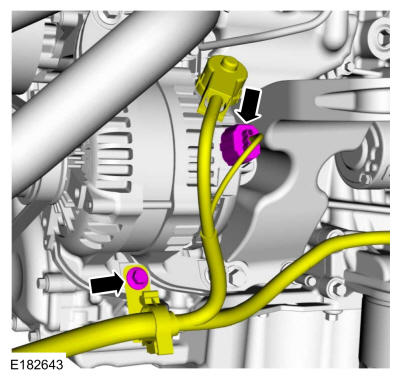

    • Connect the generator electrical connector.

    • Position the wire harness retainer and install the bolt.

      Torque: 89 lb.in (10 Nm)

    GFD285457Courtesy of FORD MOTOR COMPANY

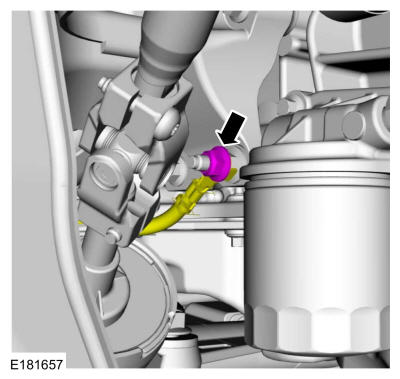

  26. Install the ground wire and nut to the engine mount bracket stud bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD285456Courtesy of FORD MOTOR COMPANY

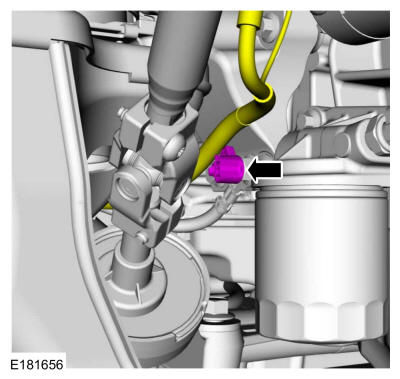

  27. Attach the wire harness retainer to the engine mount bracket stud bolt.
    GFD285455Courtesy of FORD MOTOR COMPANY

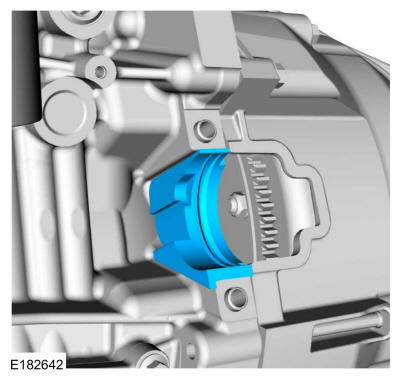

  28. Install the starter motor insulator.
    GFD285454Courtesy of FORD MOTOR COMPANY
  29. Install the starter motor. Refer to: Starter Motor .

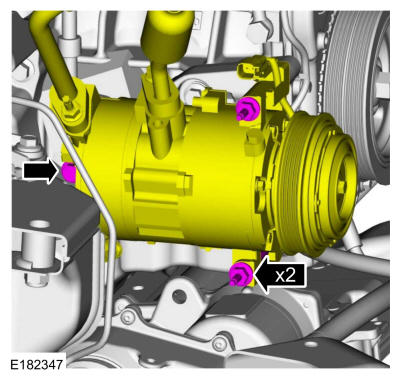

  30. Position the A/C compressor and install the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD285761Courtesy of FORD MOTOR COMPANY

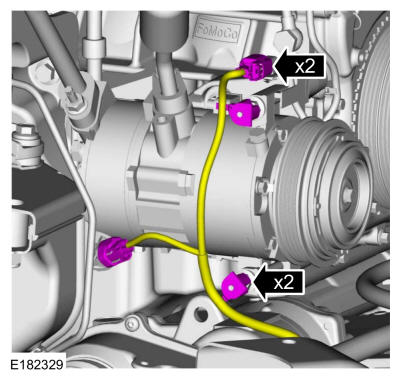

  31. Connect the A/C compressor electrical connectors and the wire harness retainers.
    GFD285452Courtesy of FORD MOTOR COMPANY

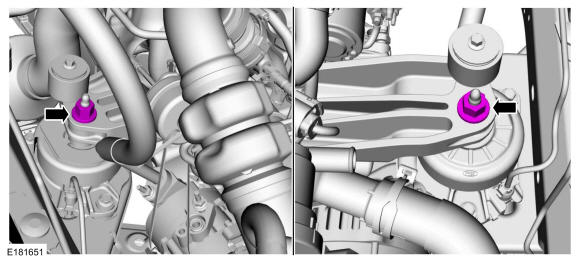

  32. Install the RH and LH engine mount bracket nuts.

    Torque: 92 lb.ft (125 Nm)

    GFD285478Courtesy of FORD MOTOR COMPANY

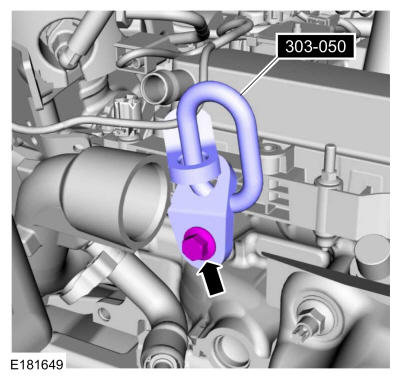

  33. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD285477Courtesy of FORD MOTOR COMPANY

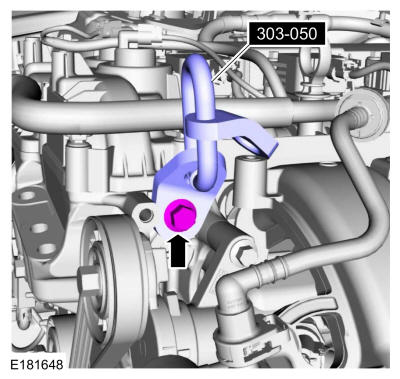

  34. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
    GFD285476Courtesy of FORD MOTOR COMPANY

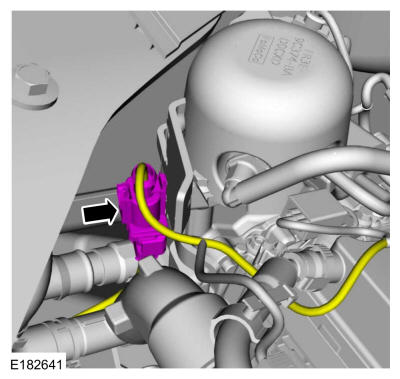

  35. Connect and attach the HO2S electrical connector.
    GFD285451Courtesy of FORD MOTOR COMPANY

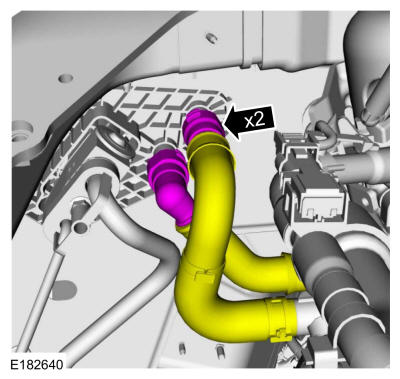

  36. Connect the coolant hoses to the heater core.
    GFD285450Courtesy of FORD MOTOR COMPANY

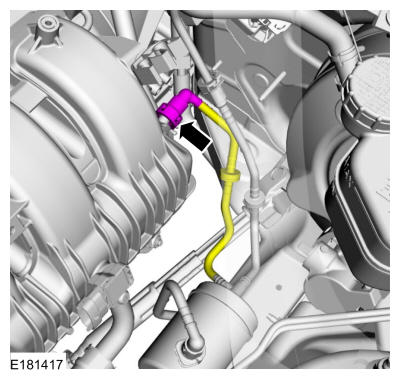

  37. Connect the vacuum tube to the rear of the intake manifold.
    GFD285449Courtesy of FORD MOTOR COMPANY

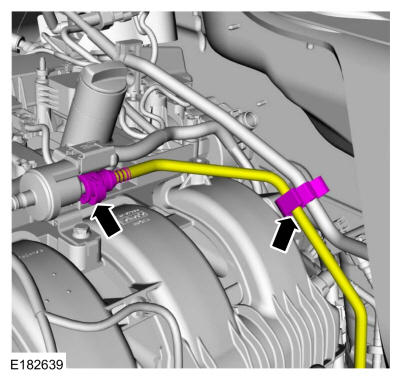

    • Attach the vacuum tube to the intake manifold retainer.

    • Connect the vacuum tube quick release coupling to the EVAP canister purge valve.

    GFD285448Courtesy of FORD MOTOR COMPANY

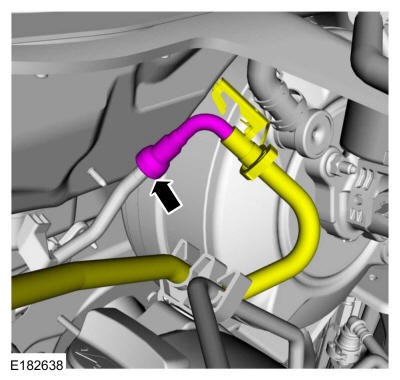

  39. Connect the fuel supply tube. Refer to: Spring Lock Couplings .
    GFD285447Courtesy of FORD MOTOR COMPANY

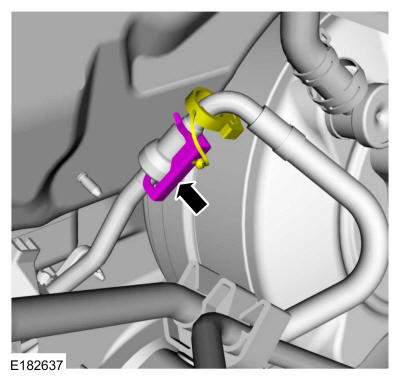

  40. Install the fuel supply tube spring lock coupling retainer.
    GFD285446Courtesy of FORD MOTOR COMPANY

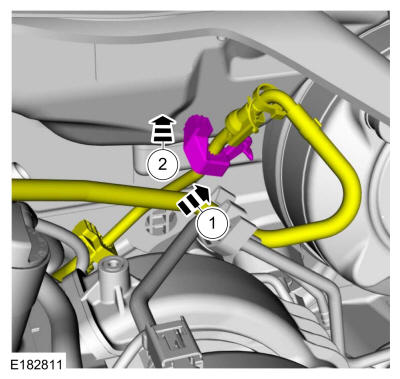

    1. Slide the retainer up the fuel supply tube.
    2. Attach the fuel supply tube retainer to the cowl.
    GFD285762Courtesy of FORD MOTOR COMPANY

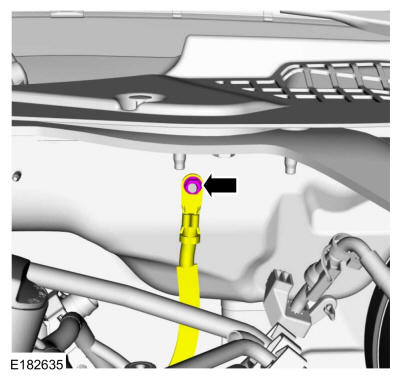

  42. Install the engine ground strap and nut to the cowl.

    Torque: 80 lb.in (9 Nm)

    GFD285444Courtesy of FORD MOTOR COMPANY

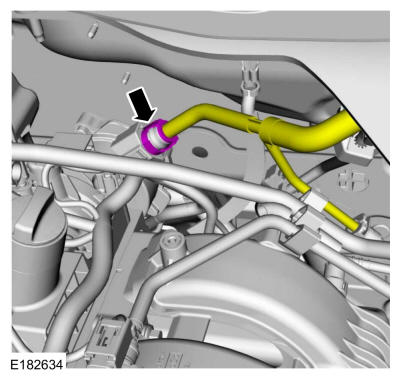

  43. Connect the vacuum hose to the brake vacuum pump.
    GFD285443Courtesy of FORD MOTOR COMPANY

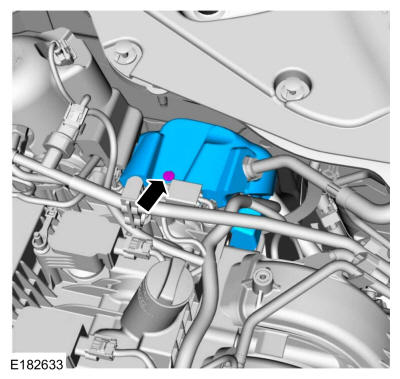

  44. Install the brake vacuum pump insulator cover and the retainer.
    GFD285442Courtesy of FORD MOTOR COMPANY

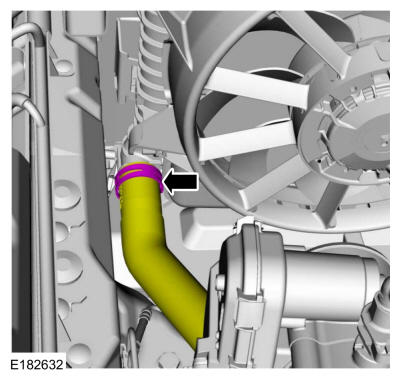

  45. Install the lower radiator hose to the radiator. Use the General Equipment: Hose Clamp Remover/Installer
    GFD285441Courtesy of FORD MOTOR COMPANY

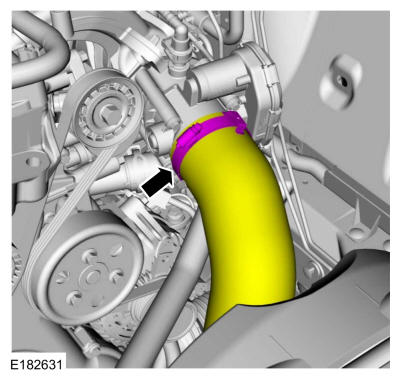

  46. Position the CAC outlet tube and tighten the clamp.

    Torque: 44 lb.in (5 Nm)

    GFD285440Courtesy of FORD MOTOR COMPANY

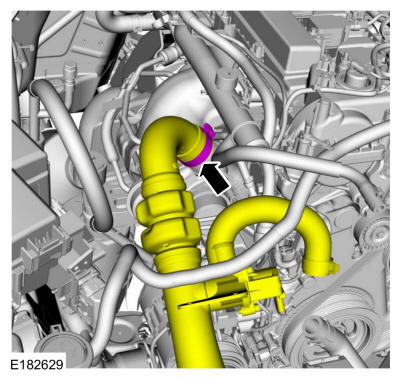

  47. Position the CAC inlet tube and tighten the clamp.

    Torque: 44 lb.in (5 Nm)

    GFD285439Courtesy of FORD MOTOR COMPANY

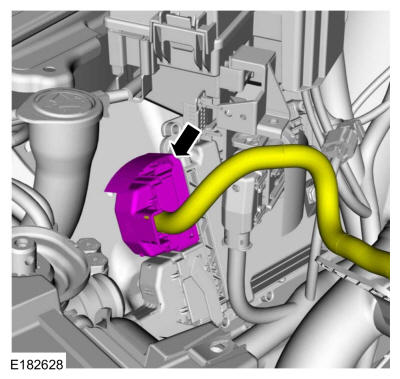

  48. Connect the upper PCM electrical connector.
    GFD285438Courtesy of FORD MOTOR COMPANY

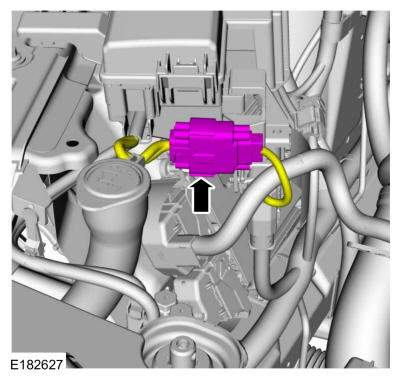

  49. Connect and attach the engine harness electrical connector.
    GFD285437Courtesy of FORD MOTOR COMPANY

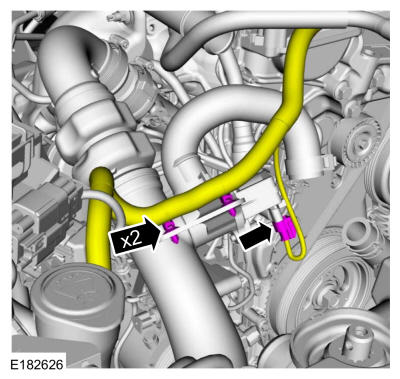

  50. Connect the CAC valve electrical connector and the wire harness retainers.
    GFD285436Courtesy of FORD MOTOR COMPANY
  51. Install the following items:

    1. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
    2. Install the air cleaner. Refer to: Air Cleaner .
    3. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

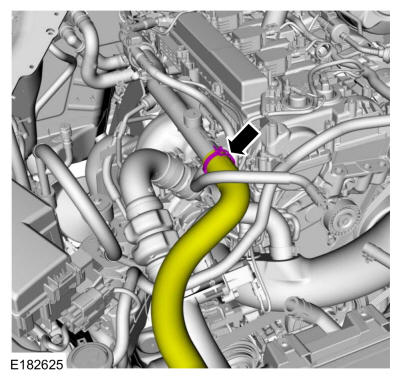

  52. Install the upper radiator hose to the coolant tube. Use the General Equipment: Hose Clamp Remover/Installer
    GFD285435Courtesy of FORD MOTOR COMPANY
  53. Install the degas bottle. Refer to: Degas Bottle .

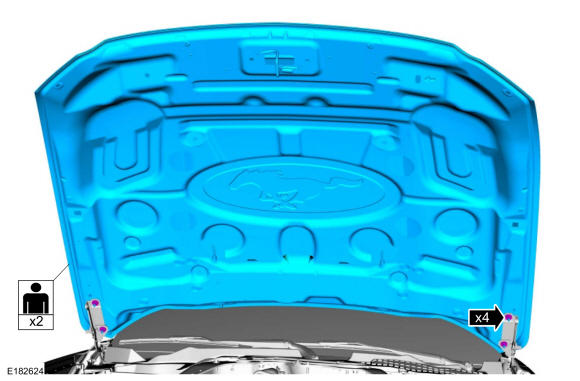

  54. NOTE: Use the index-mark for location to aid in hood installation.

    Install the hood and the 4 nuts.

    Torque: 17 lb.ft (23 Nm)

    GFD285434Courtesy of FORD MOTOR COMPANY

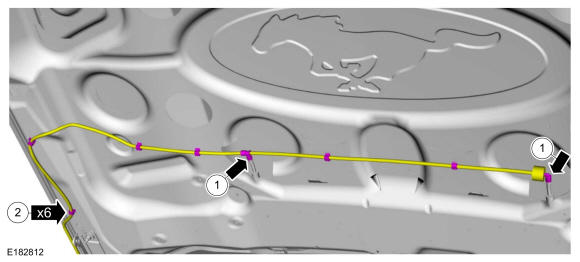

    1. Connect the windshield washer hose couplings. Refer to: Washer Hose Coupling .
    2. Attach the windshield washer hose retainers.
    GFD285763Courtesy of FORD MOTOR COMPANY

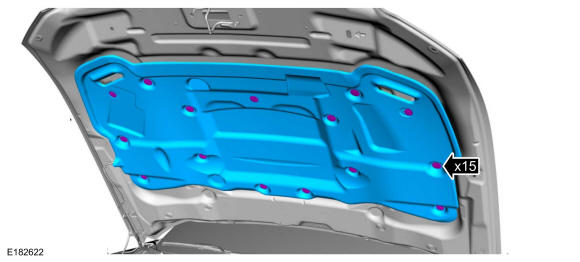

  56. Install the hood insulation and the pin-type retainers.
    GFD285431Courtesy of FORD MOTOR COMPANY
  57. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  58. Install the engine appearance cover and the nuts.

    Torque: 80 lb.in (9 Nm)

    GFD285412Courtesy of FORD MOTOR COMPANY

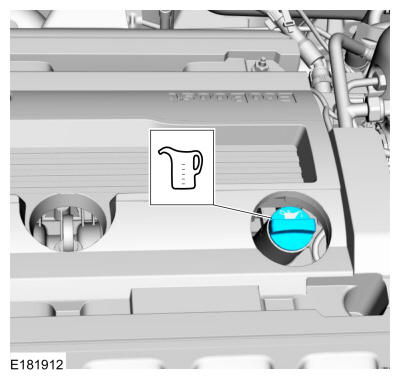

  59. Fill the engine with clean engine oil. Refer to: Specifications .
    GFD285764Courtesy of FORD MOTOR COMPANY
  60. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
  61. Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

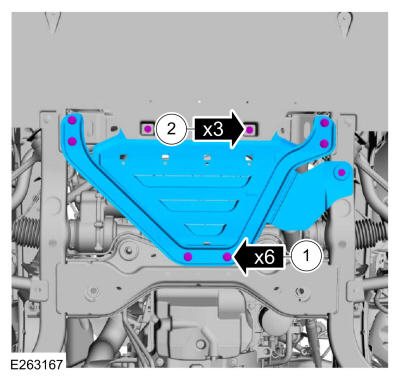

    1. Install the underbody shield and the bolts.

      Torque: 46 lb.ft (63 Nm)

    2. Install the underbody shield screws.
    GFD285765Courtesy of FORD MOTOR COMPANY
  63. Start and check the exhaust system for leaks.
  64. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
