Fuel Rail Pressure (FRP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery cable. Refer to: Battery Disconnect and Connect .
- Remove the nuts and the engine appearance cover.

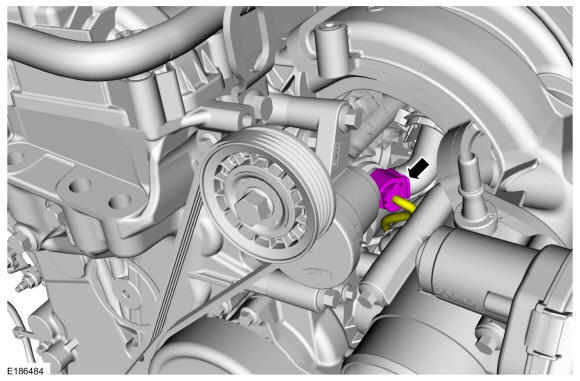

- Disconnect the FRP sensor electrical connector.

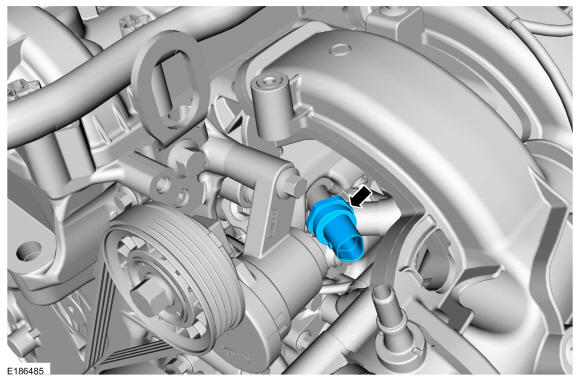

- Remove the FRP sensor.
