Transfer Case Input Shaft Seal: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the PTU/Transfer case. Refer to: Transfer Case Draining and Filling .
- Remove the PTU/transfer case. Refer to: Transfer Case .
- Remove the PTU heat shield.
- Clean the PTU assembly.

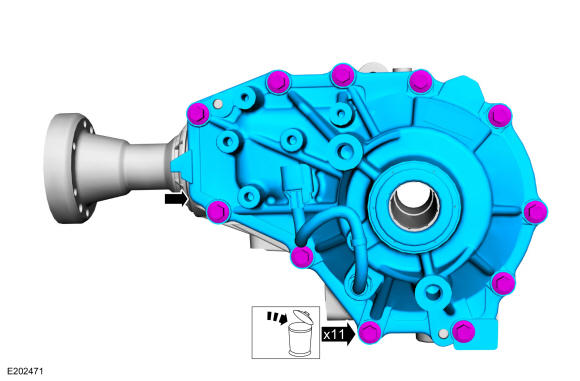

- Remove and discard the PTU cover bolts and remove PTU cover.
- Remove and discard the PTU cover O-ring seal.
- Remove the input shaft assembly.

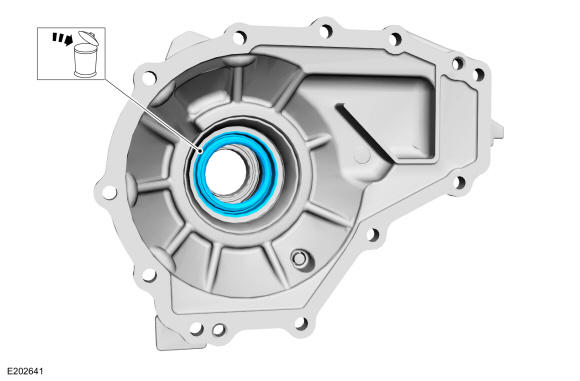

- Remove the LH input shaft seal.

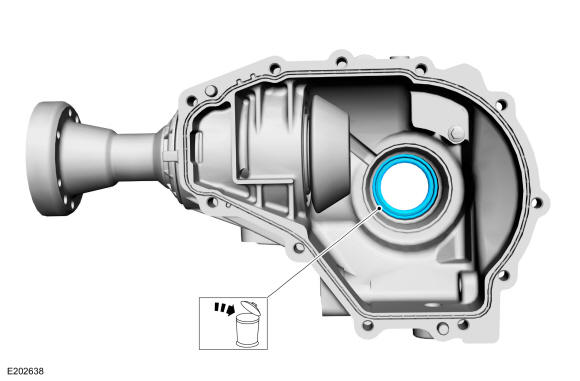

- Remove the RH input shaft seal.
