Transfer Case Input Shaft Seal: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

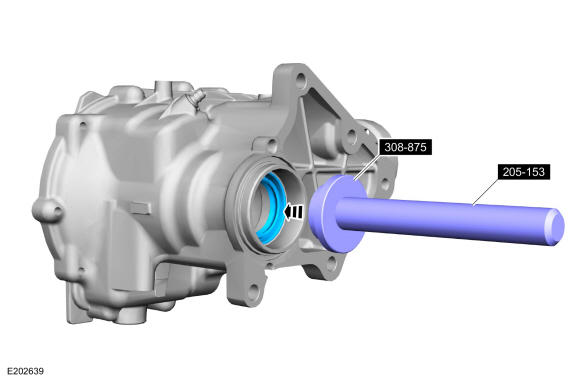

- Using the special tool, install the RH input shaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 308-875 Installer, Inboard Cover Seal.

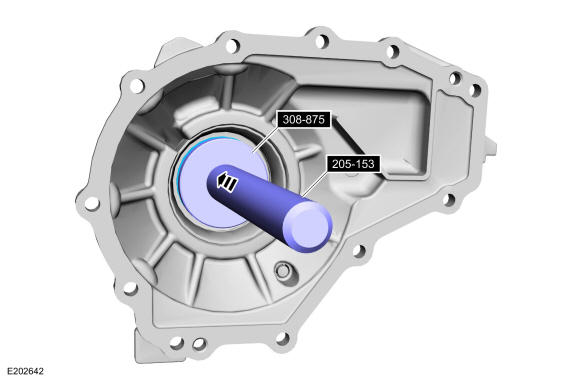

- Using the special tool, install the LH input shaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 308-875 Installer, Inboard Cover Seal.

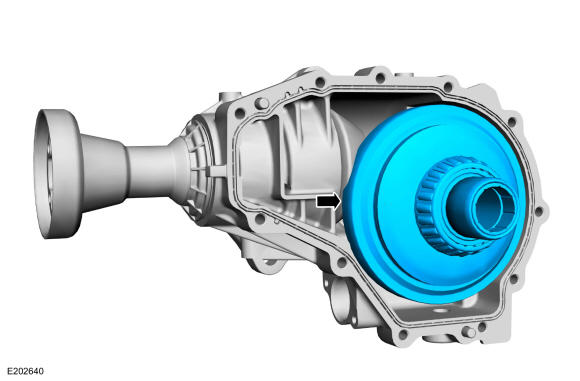

- Install the input shaft assembly.

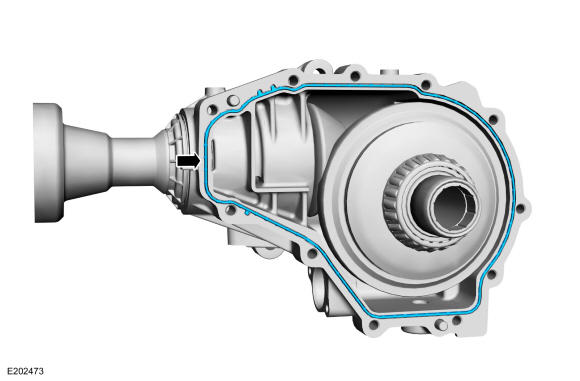

- Install the new PTU cover O-ring seal.
- Install the PTU cover and the new PTU cover bolts.
Torque: Stage 1: 26 lb.ft (35 Nm) Stage 2: 45 deg.

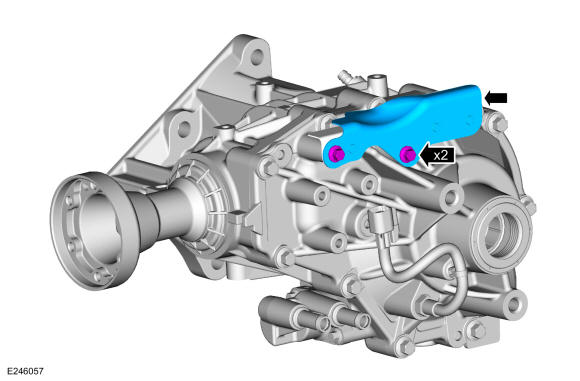

- Install the PTU heat shield.
Torque: 97 lb.in (11 Nm)
- Install the PTU/transfer case. Refer to: Transfer Case .
