Transfer Case Rear Seal: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

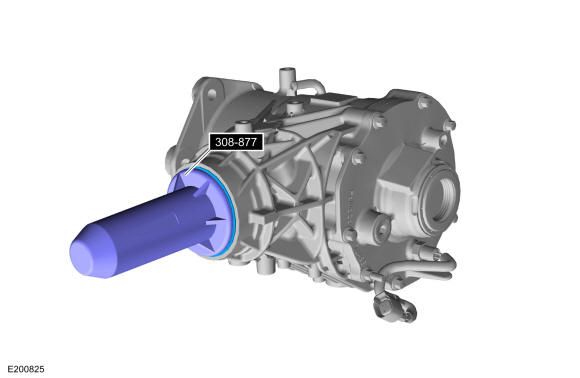

- Using the special tool, install a new rear seal. Use Special Service Tool: 308-877 Installer, Pinion Output Seal.

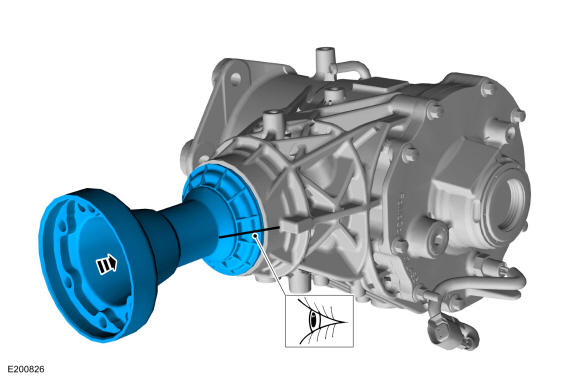

- Align the marks, and install the pinion flange.
- Using the special tool, install a new pinion flange nut. Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.
Torque
: 173 lb.ft (235 Nm)
- Install the PTU. Refer to: Transfer Case .
