Transfer Case Cover Seals: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the PTU/transfer case. Refer to: Transfer Case .

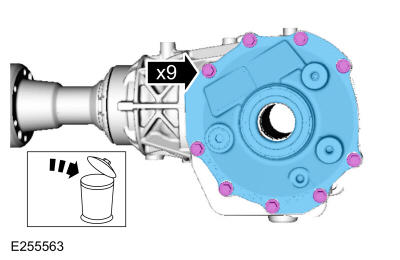

  2. Remove and discard the PTU cover bolts and remove the PTU cover.
    GFD281805Courtesy of FORD MOTOR COMPANY

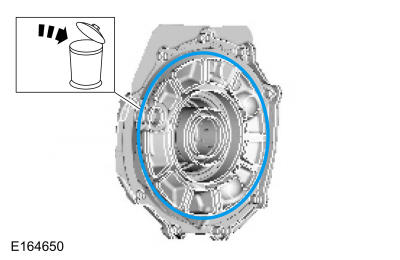

  3. Remove and discard the PTU cover O-ring seal.
GFD281806Courtesy of FORD MOTOR COMPANY
