Transfer Case

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Hose Clamp Remover/Installer
Punch
Copper Hammer

Remove the RH halfshaft. Refer to: Front Halfshaft RH - 2.0L EcoBoost (184kW/250PS) - MI4, All-Wheel Drive (AWD) .
If equipped, remove the retainers and the center under body shield.

Courtesy of FORD MOTOR COMPANY

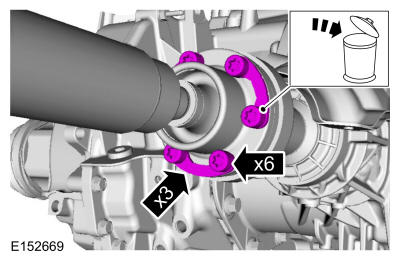

Remove and discard the driveshaft to PTU bolt and washer assemblies.

Courtesy of FORD MOTOR COMPANY
1. Mark the driveshaft and PTU flange alignment.
2. Using a punch and a copper hammer, separate the driveshaft from the PTU flange.
3. Remove the driveshaft from the PTU flange. Use the General Equipment: Punch Use the General Equipment: Copper Hammer
Courtesy of FORD MOTOR COMPANY
Loosen the clamp and position the CAC tube aside.

Courtesy of FORD MOTOR COMPANY
Disconnect the CAC hose, electrical connector and the wire retainer. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Loosen the clamp, remove the nuts and the CAC tube.

Courtesy of FORD MOTOR COMPANY
Remove the PTU cooling fan. Refer to: Power Transfer Unit Cooling Fan .

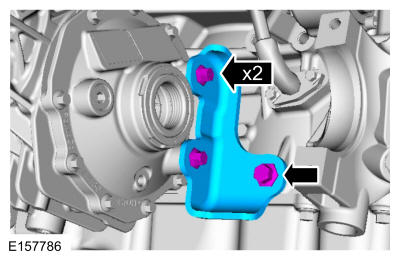

Remove the PTU support bracket and bolts.

Courtesy of FORD MOTOR COMPANY
Remove the PTU heat shield bolts and the heat shield.

Courtesy of FORD MOTOR COMPANY
NOTE: The PTU vent hose should be replaced whenever a new PTU is installed.

Disconnect the PTU vent hose.

Courtesy of FORD MOTOR COMPANY
NOTE: Limited access, this step may take more than 3 minutes to complete.

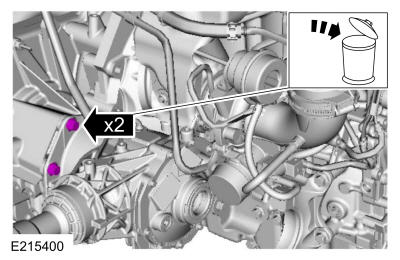

Remove and discard the upper PTU bolts.

Courtesy of FORD MOTOR COMPANY

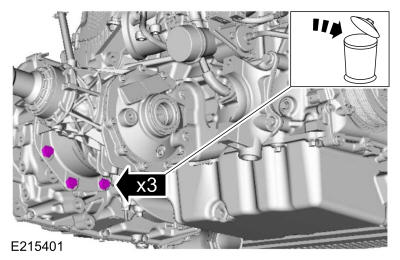

Remove and discard the lower PTU bolts.

Courtesy of FORD MOTOR COMPANY
Remove the PTU.

Courtesy of FORD MOTOR COMPANY

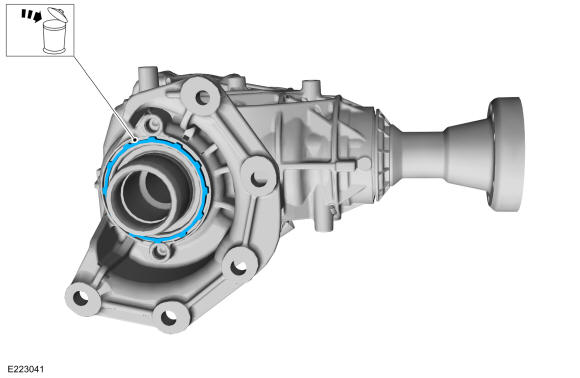

Remove and discard the PTU to transmission compression seal.

Courtesy of FORD MOTOR COMPANY
