Transfer Case Cover Seals: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

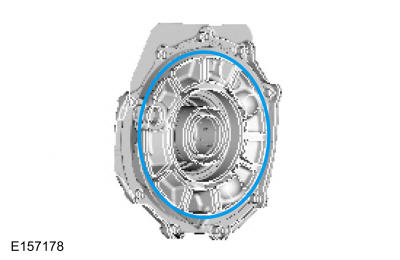

- Install a new PTU cover O-ring seal.

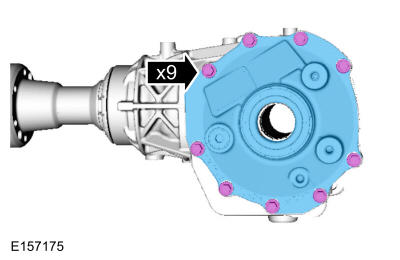

- Install the PTU cover and the new PTU cover bolts.
Torque
:Stage 1: 115 lb.in (13 Nm) Stage 2: 45 deg.
NOTE: Hand start bolts for the first three threads to ensure cross-threading does not occur. - Install the PTU/transfer case. Refer to: Transfer Case .
