Transmission Fluid Warmer: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect and lubricate the backing rings and band seals.
- Backing ring (7J324).
- Band seal (7D285).
Material: Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
- Install the bolts and the transmission fluid warmer.

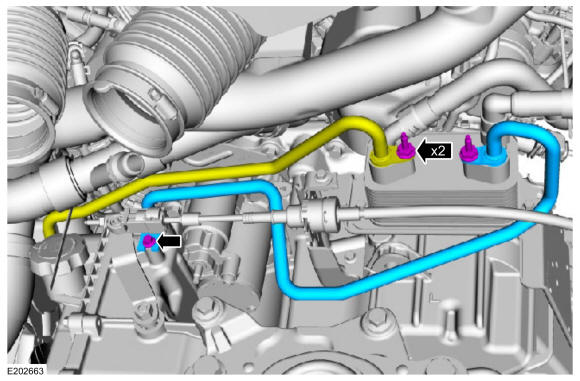

- Install the transmission-to-warmer tube and connect the warmer-to-bypass valve tube. Install a new transmission fluid tube bolt and studbolts.
Torque: 89 lb.in (10 Nm)
-

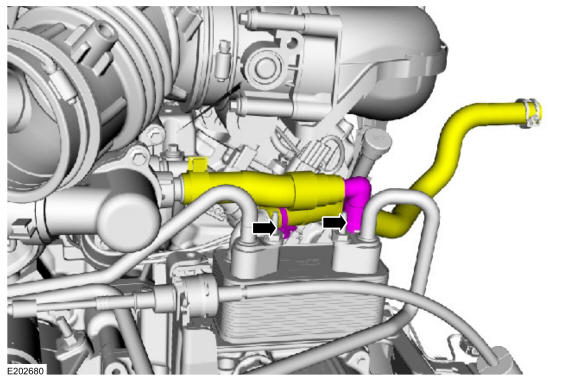

NOTE: 3.5L TiVCT.
Connect the coolant hose quick-connect coupling and the coolant hose to the transmission fluid warmer and position the clamp. Remove the tools. Use the General Equipment: Hose Clamp(s)
-
NOTE: 2.7L GTDI.
Connect the coolant hose quick-connect couplings to the transmission fluid warmer. Remove the tools. Use the General Equipment: Hose Clamp(s)
- Install the battery tray. Refer to: Battery Tray .
- Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
