Transmission Fluid Cooler Tubes - Vehicles Without: Active Warm Up: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the following five steps to install the rear tubes.

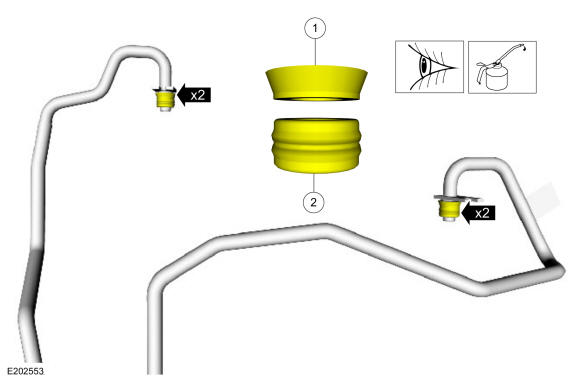

Inspect and lubricate the backing rings and band seals
1. Backing ring (7J324)
2. Band seal (7D285)
Courtesy of FORD MOTOR COMPANY

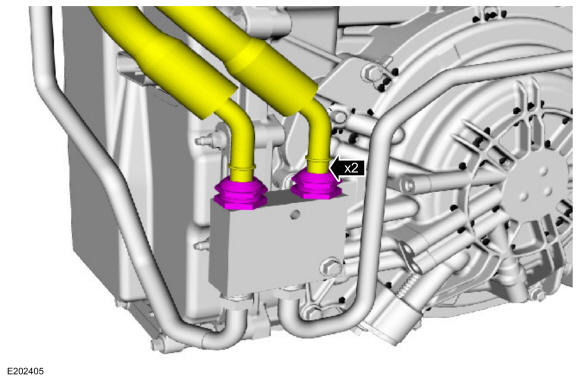

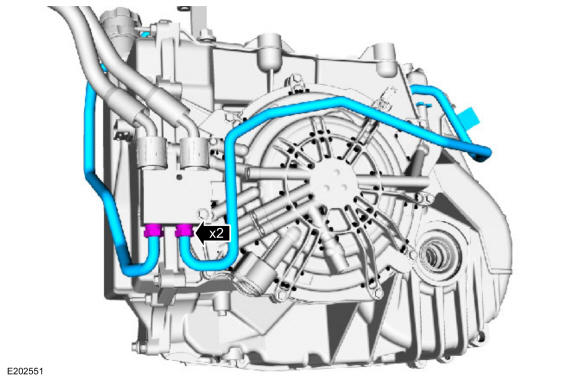

Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter Formula in the chart below. Install the transmission fluid cooler tubes and tighten the fittings.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

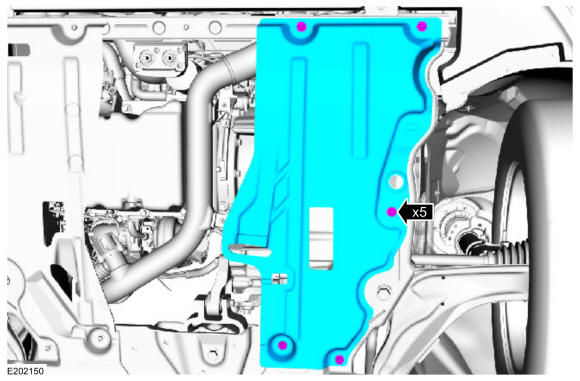

Install the LH splash shield and the bolts.

Courtesy of FORD MOTOR COMPANY
Install a new transmission fluid cooler tube bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the battery tray. Refer to: Battery Tray .
Install a new transmission fluid cooler tube bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

NOTE: Perform the following seven steps to install the front tubes.
NOTE: 3.5L TiVCT.

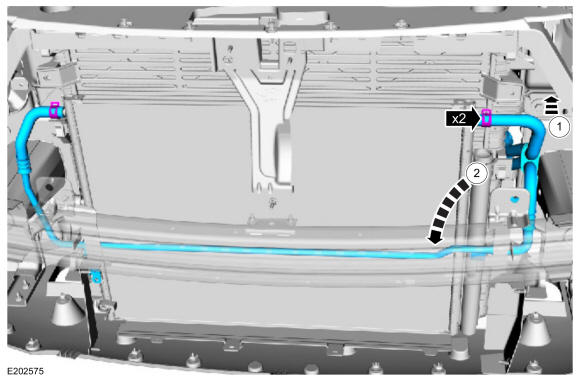

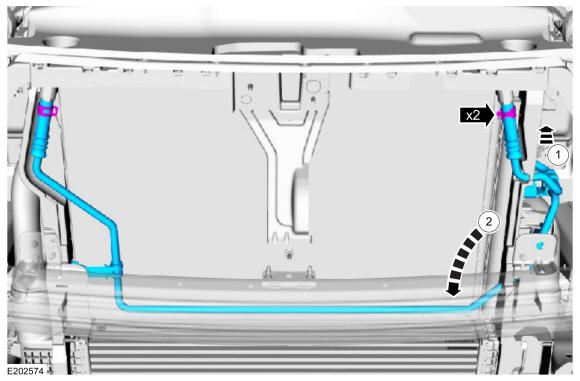

Install the transmission fluid cooler tubes, connect the transmission fluid cooler tubes to the transmission fluid cooler and position the clamps.
1. Push the transmission fluid cooler tubes into position.
2. Rotate the transmission fluid cooler tubes into place.
Courtesy of FORD MOTOR COMPANY
NOTE: 3.5L TiVCT.

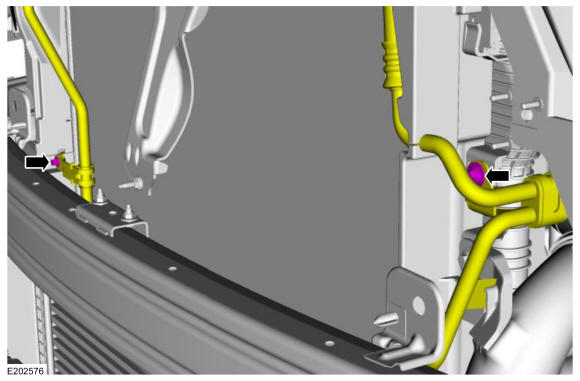

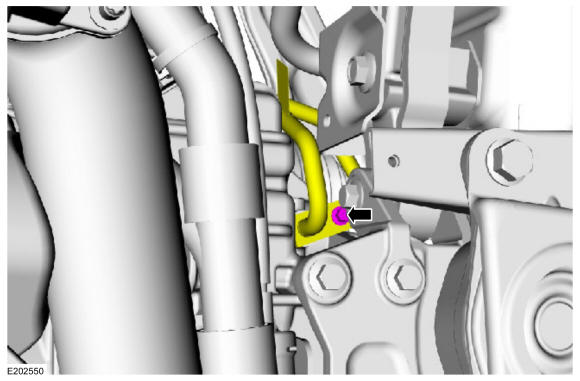

Install the transmission fluid cooler tube bracket bolts.

Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: 2.7L GTDI.

Install the transmission fluid cooler tubes, connect the transmission fluid cooler tubes to the transmission fluid cooler and position the clamps.
1. Push the transmission fluid cooler tubes into position.
2. Rotate the transmission fluid cooler tubes into place.
Courtesy of FORD MOTOR COMPANY
NOTE: 2.7L GTDI.

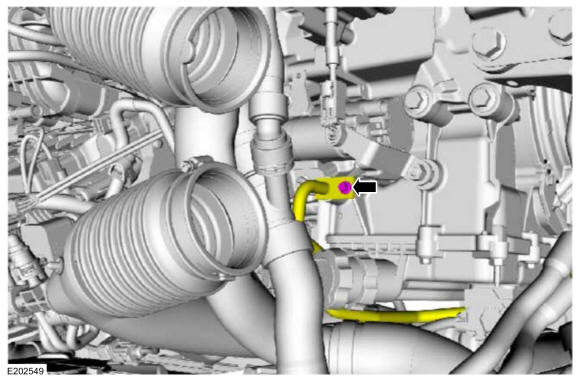

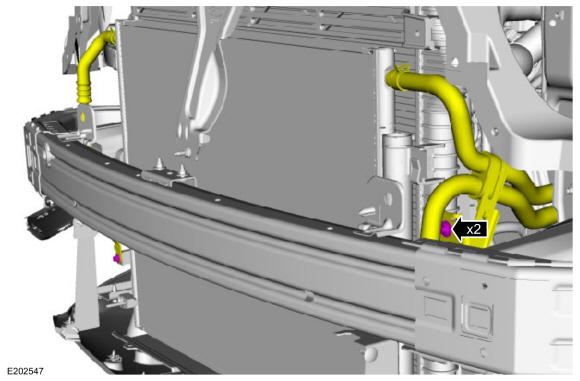

Install the transmission fluid cooler tube bracket bolts.

Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Install the active grille shutter. Refer to: Active Grille Shutter .

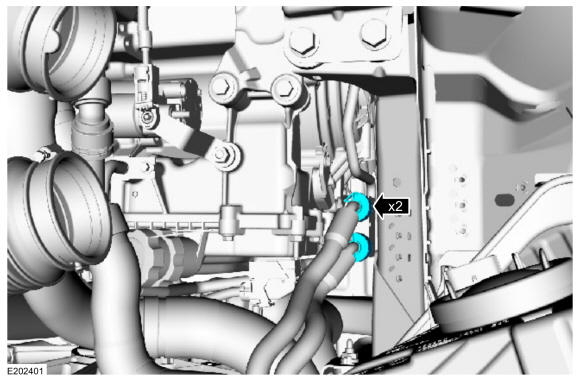

Connect the transmission fluid cooler tube quick-connect couplings.

Courtesy of FORD MOTOR COMPANY
Install the quick-connect coupling secondary latches.

Courtesy of FORD MOTOR COMPANY

NOTE: Perform the following two steps to install any tube.
Install the air cleaner. For 2.7L, Refer to: Air Cleaner . For 3.5L, Refer to: Air Cleaner .
Check the transmission fluid level and adjust as necessary. Refer to: Transmission Fluid Level Check .
