Transmission Fluid Auxiliary Pump: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview . Refer to Engine Undershield - 2.0L EcoBoost (184kW/250PS) - MI4
  2. Remove the LH front wheel and tire. Refer to: Wheel and Tire .

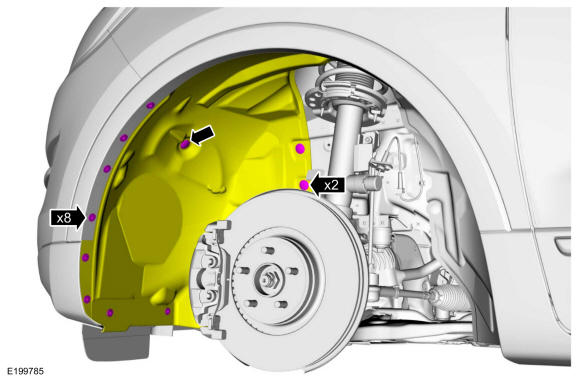

  3. Remove the retainers and position the LH fender splash shield aside.
    GFD280665Courtesy of FORD MOTOR COMPANY
  4. Disconnect the transmission fluid auxiliary pump electrical connector.
    GFD280666Courtesy of FORD MOTOR COMPANY

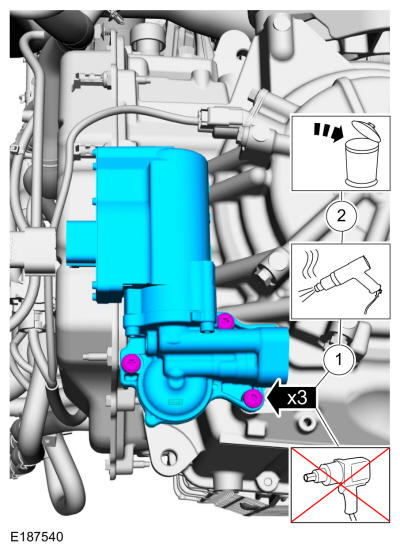

  5. NOTE: Do not use power tools to remove the transmission fluid auxiliary pump bolts or damage can occur.

    Remove the bolts and the transmission fluid auxiliary pump.

    1. Apply heat to the bolts to soften the Loctite®.
    2. Remove and discard the bolts.

    GFD280667Courtesy of FORD MOTOR COMPANY
  6. Remove the transmission fluid auxiliary pump gasket.
    GFD280668Courtesy of FORD MOTOR COMPANY

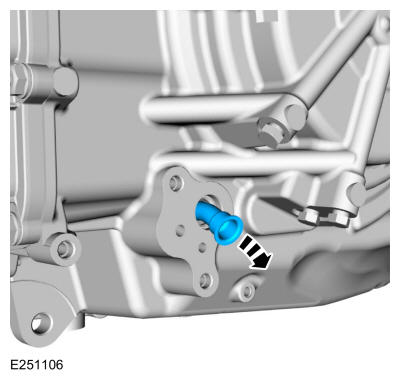

  7. Remove the transmission fluid auxiliary pump supply tube assembly.
    GFD280669Courtesy of FORD MOTOR COMPANY

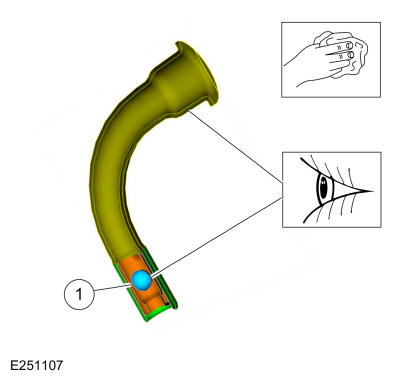

  8. Clean and inspect the transmission fluid auxiliary pump supply tube and check ball.

    1. Check ball (part of the transmission fluid auxiliary pump supply tube)

GFD280670Courtesy of FORD MOTOR COMPANY
